DTC P2610 ECM/PCM Internal Engine Off Timer Performance: Description

WARNING: This page is about a different car, the 2009 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

To ensure the accuracy of the EVAP (Evaporative Emission) monitor values, the soak timer, which is built into the ECM, measures 5 hours (+/-15 minutes) from when the ignition switch is turned to OFF, before the monitor is run. This allows the fuel to cool down, which stabilizes the Fuel Tank Pressure (FTP). When 5 hours have elapsed, the ECM turns on.

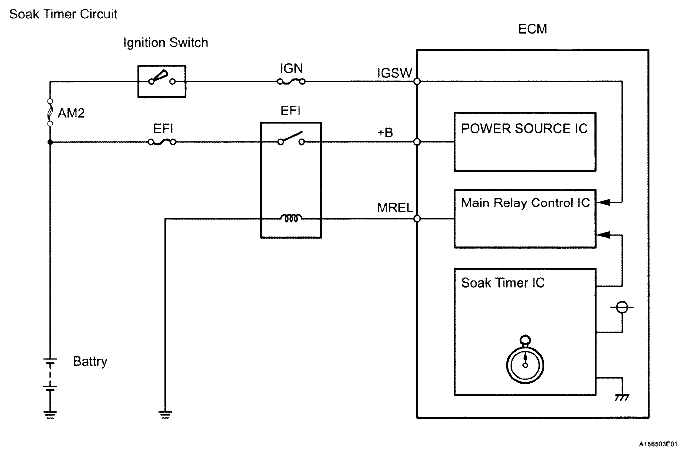

Fig 1: Soak Timer Circuit Diagram
G05198324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
