Inspection Procedure

WARNING: This page is about a different car, the 2009 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT ECM (+B VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the ECM connectors.

      Standard Voltage

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

      Tester Connections Specified Conditions
      +B (E8-1) - E1 (E4-3) 9 to 14 V

      OK: PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )

      Fig 1: Identifying ECM Connector
      G05198368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: Go to next step

  2. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the negative battery cable.
    2. Disconnect the E4 ECM connector.
    3. Check the resistance.

      Standard Resistance

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

      Tester Connections Specified Conditions
      E1 (E4-3) - Body ground Below 1 Ω
    4. Reconnect the ECM connector.
    5. Reconnect the negative battery cable.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      Fig 2: Identifying ECM Connector
      G05677306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  3. INSPECT ECM (IGSW VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the ECM connectors.

      Standard Voltage

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

      Tester Connections Specified Conditions
      IGSW (E8-9) - E1 (E4-3) 9 to 14 V

      OK:  Go to step  6

      Fig 3: Identifying ECM Connector
      G05198370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: Go to next step

  4. CHECK FUSE (AM2 AND IGN)
    1. Check the AM2 fuse.
      1. Remove the AM2 fuse from the engine room R/B.
      2. Check the AM2 fuse resistance.

        Standard Resistance:

        Below 1 Ω

      3. Reinstall the AM2 fuse.
    2. Check the IGN fuse.
      1. Remove the IGN fuse from the driver side J/B.
      2. Check the IGN fuse resistance.

        Standard Resistance:

        Below 1 Ω

      3. Reinstall the IGN fuse.

        NG: CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE

        Fig 4: Checking Fuse (AM2 And IGN)
        G05677308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK: Go to next step

  5. INSPECT IGNITION OR STARTER SWITCH ASSEMBLY
    1. Disconnect the I7 ignition switch connector.
    2. Check the resistance.

      Standard Resistance

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

      Ignition Switch Positions Tester Connections Specified Conditions
      LOCK All Terminals 10 kΩ or higher
      ACC 2-4 Below 1 Ω
      ON 1-4, 2-4, 5-6 Below 1 Ω
      START 1-4, 3-4, 5-6, 5-7 Below 1 Ω
      Fig 5: Identifying Ignition Switch Connector
      G05198237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reconnect the ignition switch connector.

      NG: REPLACE IGNITION OR STARTER SWITCH ASSEMBLY

      OK: CHECK AND REPAIR HARNESS AND CONNECTOR (BATTERY - IGNITION SWITCH, IGNITION SWITCH - ECM)

  6. INSPECT ECM (MREL VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the ECM connectors.

      Standard Voltage

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

      Tester Connections Specified Conditions
      MREL (E8-8) - E1 (E4-3) 9 to 14 V

      NG: REPLACE ECM  (See REMOVAL  )

      Fig 6: Identifying ECM Connector
      G05198373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  7. CHECK FUSE (EFI)
    1. Remove the EFI fuse from the engine room R/B.
    2. Check the EFI fuse resistance.

      Standard Resistance:

      Below 1 Ω

    3. Reinstall the EFI fuse.

      NG: CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE

      Fig 7: Identifying EFI Fuse
      G05198228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to next step

  8. INSPECT EFI RELAY
    1. Remove the EFI relay from the engine room R/B.
    2. Check the EFI relay resistance.

      Standard Resistance

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

      Tester Connections Specified Conditions
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
    3. Reinstall the EFI relay.
      Fig 8: EFI Relay Circuit
      G05198087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE EFI RELAY

      OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (EFI RELAY - ECM, EFI RELAY - BODY GROUND)
    1. Check the harness and connector between the EFI relay and ECM.
      1. Remove the EFI relay from the engine room R/B.
      2. Disconnect the E8 ECM connector.
      3. Check the resistance.

        Standard Resistance (Check for open)

        TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

        Tester Connections Specified Conditions
        Engine room R/B (EFI relay terminal 1) - MREL (E8-8) Below 1 Ω
        Engine room R/B (EFI relay terminal 3) - +B (E8-1) Below 1 Ω

        Standard Resistance (Check for short)

        TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

        Tester Connections Specified Conditions
        Engine room R/B (EFI relay terminal 1) or MREL (E8-8) - Body ground 10 kΩ or higher
        Engine room R/B (EFI relay terminal 3) or +B (E8-1) - Body ground 10 kΩ or higher
      4. Reconnect the ECM connector.
      5. Reinstall the EFI relay.

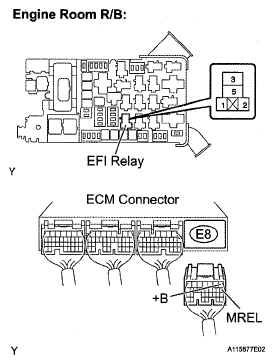

        Fig 9: Identifying ECM Connector And EFI Relay
        G05677313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the harness and connector between the EFI relay and body ground.
      1. Remove the EFI relay from the engine room R/B.
      2. Check the resistance.

        Standard Resistance (Check for open):

        TESTER CONNECTIONS SPECIFIED CONDITIONS CHART

        Tester Connections Specified Conditions
        Engine room R/B (EFI relay terminal 2) - Body ground Below 1 Ω
      3. Reinstall the EFI relay.

        NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

        OK: CHECK AND REPLACE HARNESS AND CONNECTOR (TERMINAL 5 OF EFI RELAY - BATTERY POSITIVE TERMINAL)
