Rear Speed Sensor: Components

WARNING: This page is about a different car, the 2009 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

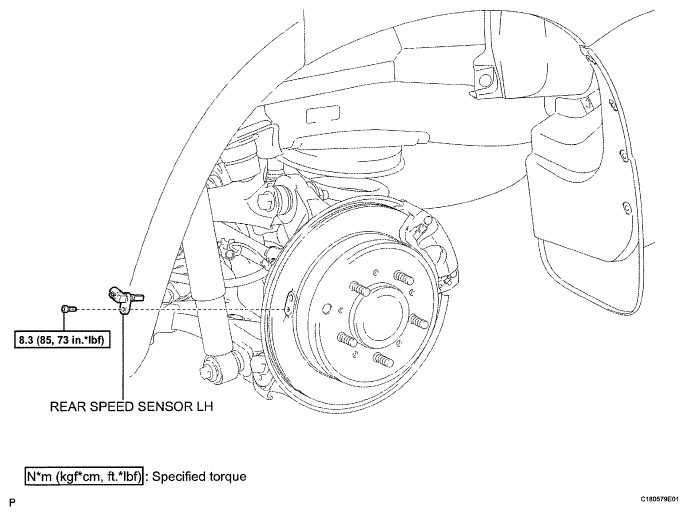

Fig 1: Locating Rear Speed Sensor Components With Torque Specification
G05649610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
