Yaw Rate And Deceleration Sensor: Components

WARNING: This page is about a different car, the 2009 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

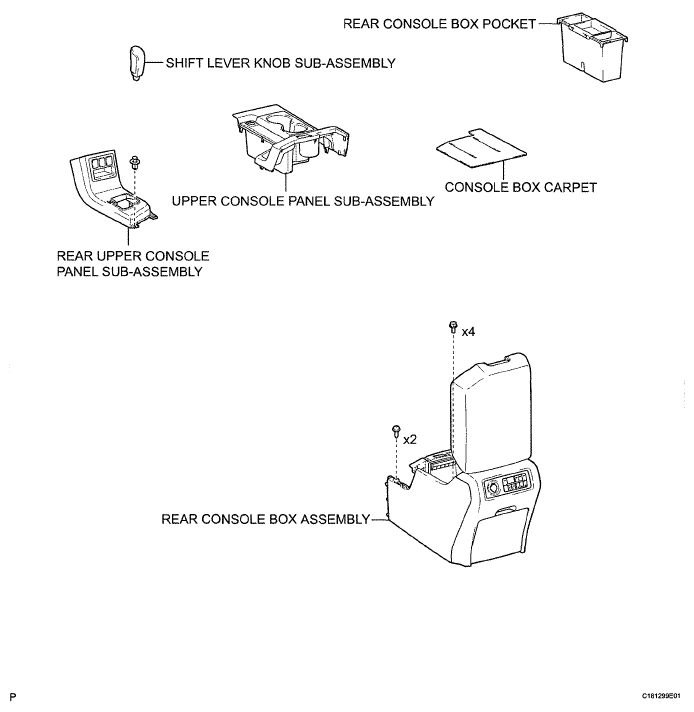

Fig 1: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (1 Of 2)
G05649613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

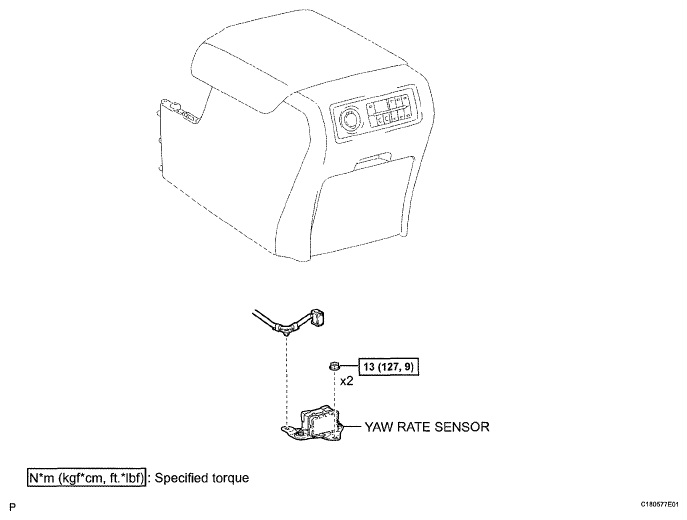

Fig 2: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
G05649614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
