System Diagram

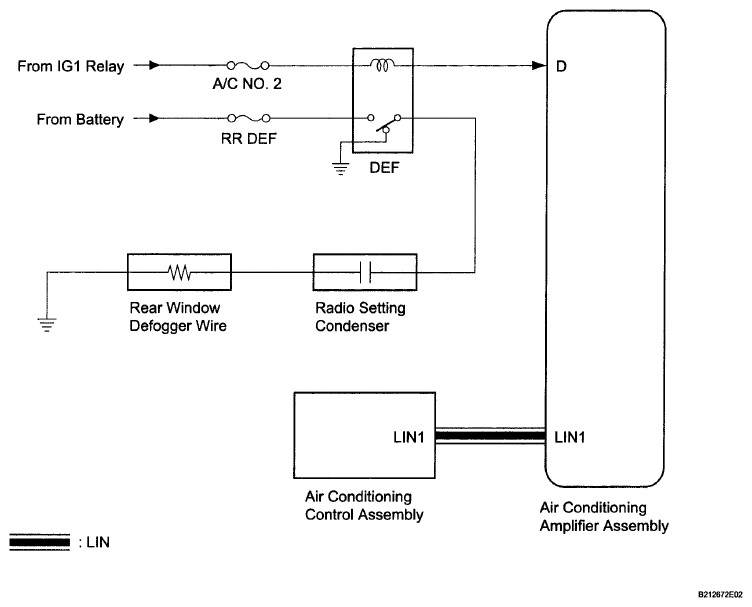

Fig 1: Window Defogger System Diagram
G06029017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Transmitting ECU Receiving ECU Signal Communication Method
Air Conditioning Control Assembly Air Conditioning Amplifier Assembly Rear window defogger switch signal LIN
