Front Speed Sensor: Installation

HINT:

• Use the same procedure for the LH side and RH side.
• The following procedure is for the LH side.
• If the sensor rotor needs to be replaced, replace it together with the front drive shaft assembly.

1. INSTALL FRONT SPEED SENSOR
   1. Install the resin clamp and front speed sensor with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:

      • Prevent foreign matter from attaching to the front speed sensor tip.
      • Firmly insert the front speed sensor body into the knuckle before tightening the bolt.
      • After installing the front speed sensor to the knuckle, make sure that there is no clearance between the front speed sensor stay and knuckle. Also make sure that no foreign matter is stuck between the parts.
      • Before installing the clamp, firmly insert the points of the clamp into the installation holes.

        Text in Illustration

        ILLUSTRATION LEGEND



        *1	Resin Clamp

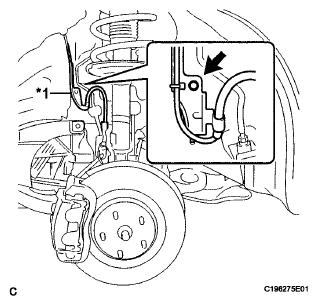

        Fig 1: Locating Resin Clamp Bolt With Clamp

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Temporarily install the No. 1 sensor clamp.
      NOTE: Be sure to insert the No. 1 sensor clamp claw into the stopper hole while installing the No. 1 sensor clamp.

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	Resin Hole
      *2	No. 1 Resin Clamp

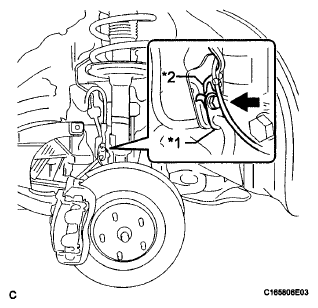

      Fig 2: Identifying Stopper Hole And No. 1 Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the front brake flexible hose and No. 1 sensor clamp together to the shock absorber with the bolt.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

      NOTE:

      • Do not twist the wire harness for the front speed sensor when installing it.
      • A bolt tightens the brake flexible hose and front speed sensor together. Make sure that the flexible hose is positioned over the front speed sensor.

        Text in Illustration

        ILLUSTRATION LEGEND



        *1	Front Brake Flexible Hose
        *2	No. 1 Resin Clamp

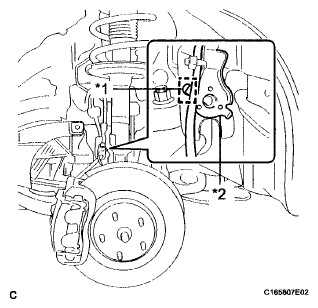

        Fig 3: Identifying Front Brake Flexible Hose And No. 1 Resin Clamp With Bolt

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the No. 2 sensor clamp to the body with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	No. 2 Resin Clamp

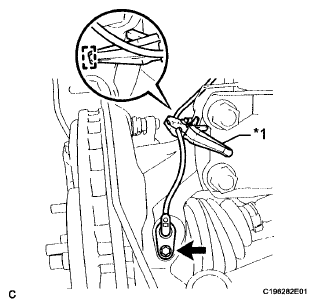

      Fig 4: Locating No. 2 Sensor Clamp Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Install the 2 clamps and connect the front speed sensor connector.

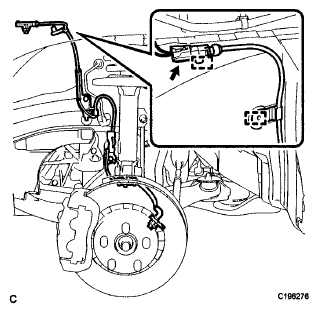

   Fig 5: Locating Front Speed Sensor Connector With Clamps
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL FRONT FENDER LINER LH  (See INSTALLATION )
3. INSTALL FRONT FENDER OUTSIDE MOULDING LH  (See INSTALLATION )
4. INSTALL FRONT WHEEL

   Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
   NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
6. CHECK FOR SPEED SENSOR SIGNAL

   HINT:

   (See TEST MODE PROCEDURE  )
