Front Speed Sensor: Removal

HINT:

• Use the same procedure for the LH side and RH side.
• The following procedure is for the LH side.
• If the sensor rotor needs to be replaced, replace it together with the front drive shaft assembly.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
2. REMOVE FRONT WHEEL
3. REMOVE FRONT FENDER OUTSIDE MOULDING LH  (See REMOVAL )
4. REMOVE FRONT FENDER LINER LH  (See REMOVAL )
5. REMOVE FRONT SPEED SENSOR
   1. Disconnect the front speed sensor connector and remove the 2 clamps.
      Fig 1: Locating Front Speed Sensor Connector With Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the bolt and No. 2 sensor clamp from the body.

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	No. 2 Sensor Clamp

      Fig 2: Locating No. 2 Sensor Clamp Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

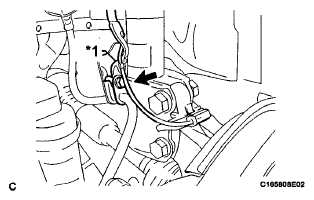

   3. Remove the bolt, No. 1 sensor clamp and flexible hose together from the shock absorber assembly.

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	No. 1 Sensor Clamp

      Fig 3: Locating No. 1 Sensor Clamp Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt, resin clamp and front speed sensor.
      NOTE:

      • Prevent foreign matter from attaching to the front speed sensor tip.
      • Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.

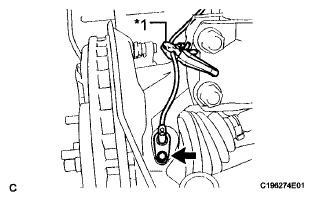

        Text in Illustration

        ILLUSTRATION LEGEND



        *1	Resin Clamp

        Fig 4: Locating Resin Clamp Bolt

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
