REAR SPEED SENSOR (for AWD): Components

Fig 1: Identifying Rear Speed Sensor Replacement Components (For AWD) (1 Of 3)
G06026183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Speed Sensor Replacement Components With Torque Specification (For AWD) (2 Of 3)
G06026184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

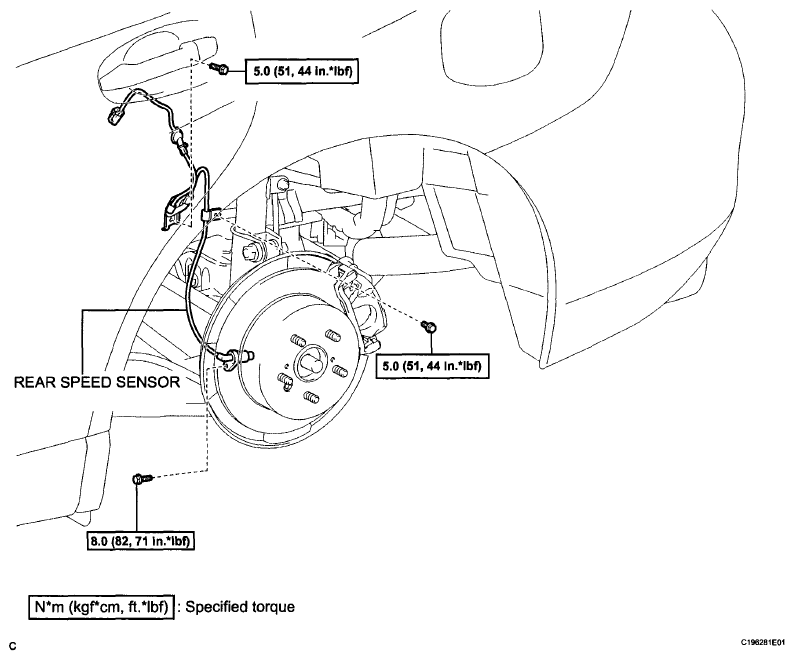

Fig 3: Rear Speed Sensor Replacement Components With Torque Specifications (For AWD) (3 Of 3)
G06026185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
