Skid Control Buzzer: Inspection
- INSPECT SKID CONTROL BUZZER ASSEMBLY
- Connect a negative (-) lead from the battery to terminal 1 and a positive (+) lead to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
OK:
Skid control buzzer sounds .
HINT:
If the value is not as specified, replace the skid control buzzer.

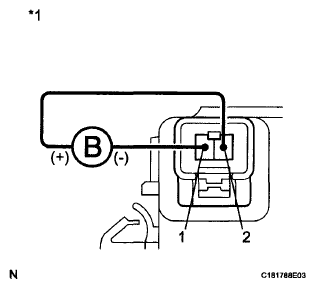

Text in Illustration
ILLUSTRATION LEGEND*1 Component without harness connected (Skid Control Buzzer)
- Connect a negative (-) lead from the battery to terminal 1 and a positive (+) lead to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
