Skid Control Buzzer: Removal

PRECAUTION
CAUTION: Be sure to read Precaution thoroughly before servicing (See AIRBAG SYSTEM ).
DISCONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
HINT:

Refer to the procedure up to Remove Driver Side Knee Airbag Assembly (See REMOVAL ).
REMOVE SKID CONTROL BUZZER ASSEMBLY
1. Separate the wire harness clamp.

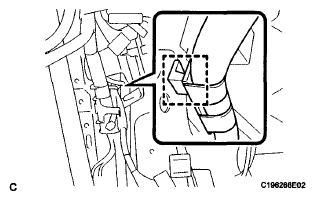

  Fig 1: Identifying Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the skid control buzzer assembly clamp.

  Fig 2: Identifying Skid Control Buzzer Assembly Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the skid control buzzer assembly connector.

  Fig 3: Locating Skid Control Buzzer Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
