VSC Off Switch: Inspection

INSPECT VSC OFF SWITCH

Disconnect the VSC OFF switch connector.

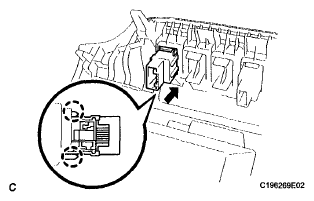

Fig 1: Removing VSC OFF Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

RESISTANCE SPECIFICATION

Tester Connection	Switch Condition	Specified Condition
6 (+) - 3 (E)	Switch is pushed in	Below 1 Ω
6 (+) - 3 (E)	Switch is not pushed in	10 kΩ or higher

If the value is not as specified, replace the VSC OFF switch.

Fig 2: Inspecting VSC OFF Switch
