VSC Off Switch: Installation

  1. INSTALL VSC OFF SWITCH
    1. Engage the 2 claws and install the VSC OFF switch.

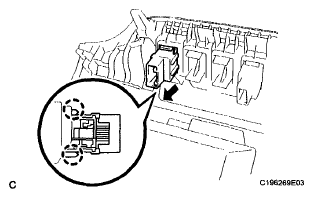

      2. Fig 1: Installing VSC OFF Switch With Claws
      G06026213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER NO. 1 INSTRUMENT FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  (See INSTALLATION )
  4. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  6. CHECK FOR WARNING LIGHT AND INDICATOR LIGHT

    HINT:

    (See TEST MODE PROCEDURE  ).
