Inspection Procedure

HINT:

When the warning lights continue to blink, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in one or more ECUs is suspected.

1. CHECK CAN COMMUNICATION SYSTEM
   1. Check if a CAN communication system DTC is output (See DIAGNOSIS SYSTEM ).

      Result

      RESULT CHART



      Result	Proceed to
      DTC is not output	A
      DTC is output	B

      B: INSPECT CAN COMMUNICATION SYSTEM  (See HOW TO PROCEED WITH TROUBLESHOOTING )

      A: Go to next step

2. INSPECT DLC3
   1. Turn the ignition switch to ON.
   2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION



      Tester Connection	Switch Condition	Specified Condition
      D1-13 (TC) - D1-4 (CG)	Ignition switch ON	11 to 14 V

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	Front view of DLC3

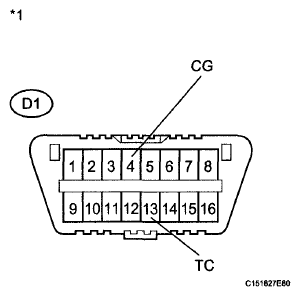

      Fig 1: Identifying DLC3 Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: Go to step  4

      OK: Go to next step

3. CHECK ECM (TC of DLC3 INPUT)
   1. Turn the ignition switch off.
   2. Reconnect the ECM connector.
   3. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	Front view of DLC3

      Fig 2: Identifying DLC3 Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Turn the ignition switch to ON.
   5. Check that the check engine warning light is blinking.

      Result

      RESULT CHART



      Result	Proceed to
      Check engine warning light is blinking	A
      Check engine warning light is not blinking	B

      HINT:

      If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE  ).

      B: REPAIR OR REPLACE WIRE HARNESS OR ECM (TC of ECM CIRCUIT)

      A: REPLACE BRAKE ACTUATOR ASSEMBLY  (See REMOVAL  )

4. CHECK HARNESS AND CONNECTOR (TC of DLC3 - ECM)
   1. Turn the ignition switch off.
   2. Disconnect the ECM connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance for 2GR-FE

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      D1-13 (TC) - A41-16 (TC)	Always	Below 1 Ω
      D1-13 (TC) - Body ground	Always	10 kΩ or higher

      for 1AR-FE

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      D1-13 (TC) - A49-7 (TC)	Always	Below 1 Ω
      D1-13 (TC) - Body ground	Always	10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	Front view of DLC3
      *2	Front view of wire harness connector (to ECM)
      *3	for 2GR0FE
      *4	FOR 1AR-FE

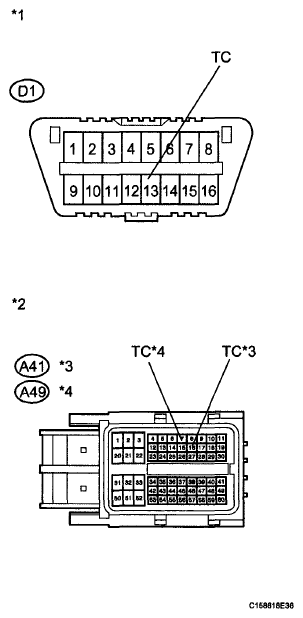

      Fig 3: Identifying DLC3 And ECM Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

5. CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)
   1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      D1-4 (CG) - Body ground	Always	Below 1 Ω

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	Front view of DLC3

      Fig 4: Identifying CG Terminal Of DLC3 Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

6. CHECK ECM (TC of DLC3 INPUT)
   1. Turn the ignition switch off.
   2. Reconnect the ECM connector.
   3. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

      Text in Illustration

      ILLUSTRATION LEGEND



      *1	Front view of DLC3

      Fig 5: Identifying DLC3 Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Turn the ignition switch to ON.
   5. Check that the check engine warning light is blinking.

      Result

      RESULT CHART



      Result	Proceed to
      Check engine warning light is blinking	A
      Check engine warning light is not blinking	B

      HINT:

      If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE  ).

      B: REPAIR OR REPLACE WIRE HARNESS OR ECM (TC of ECM CIRCUIT)

      A: REPLACE BRAKE ACTUATOR ASSEMBLY  (See REMOVAL  )
