Yaw Rate And Acceleration Sensor: Components

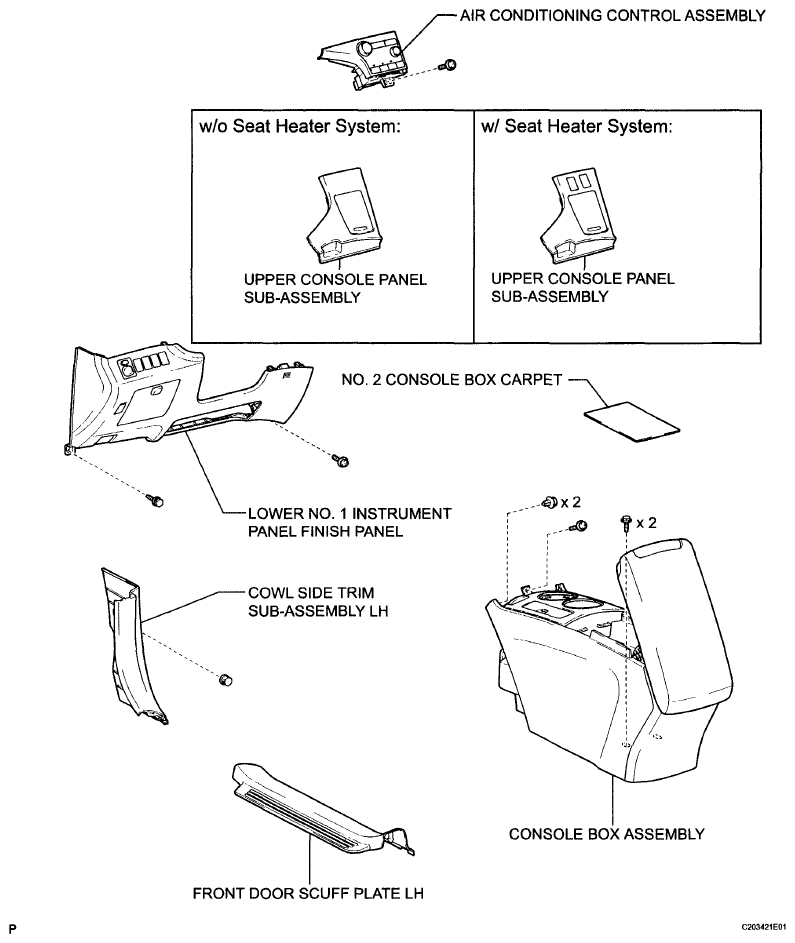

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components (1 Of 3)
G06026192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

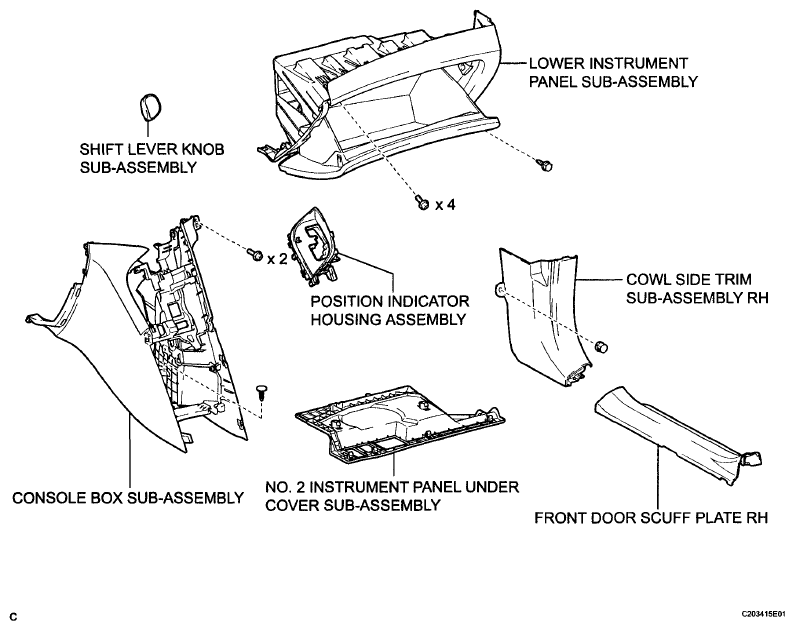

Fig 2: Identifying Yaw Rate And Acceleration Sensor Replacement Components (2 Of 3)
G06026193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

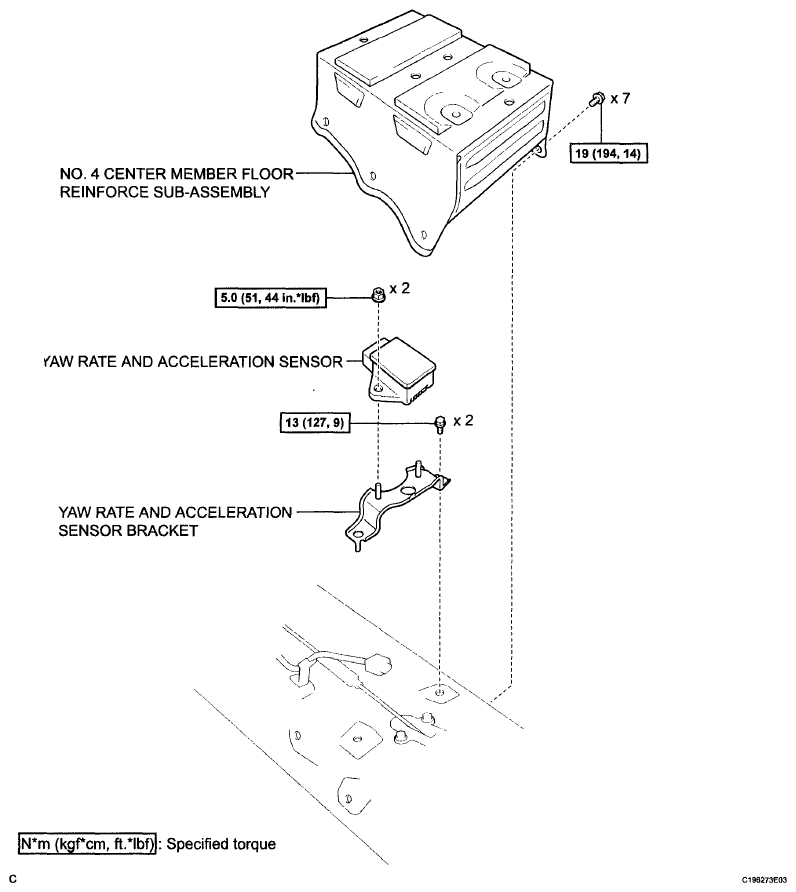

Fig 3: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (3 Of 3)
G06026194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
