Engine Control System (1AR-FE) - System Testing, Removal & Installation
>>
ACIS Control Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ACIS Control Circuit: Wiring Diagram

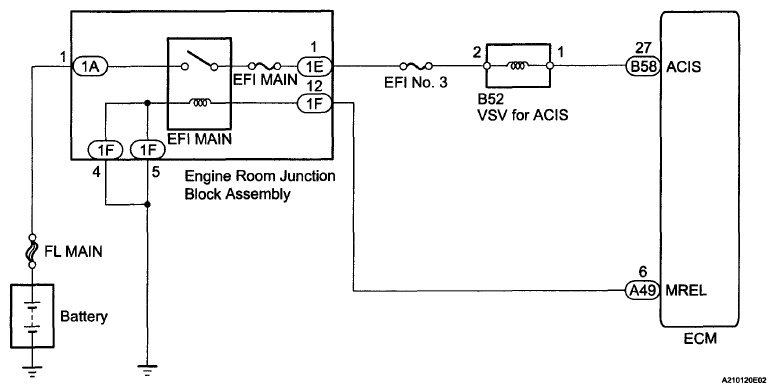

Fig 1: ACIS Control Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
