Accelerator Pedal: Installation

  1. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY
    1. Install the accelerator pedal sensor assembly with the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      NOTE: Avoid physical shocks to the accelerator pedal sensor assembly.
    2. Connect the accelerator pedal sensor assembly connector.

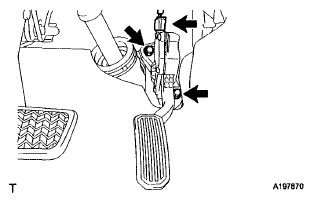

      Fig 1: Locating Bolts And Accelerator Pedal Sensor Assembly
      G06023444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
