Camshaft Position Sensor: Installation

INSTALL CAMSHAFT POSITION SENSOR (for Exhaust Side)
1. Apply a light coat of engine oil to the O-ring of the sensor.

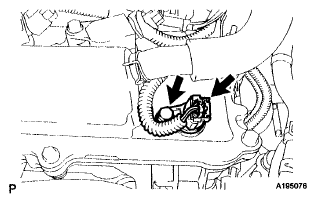

  Fig 1: Locating Bolt And Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Make sure that the O-ring is not cracked or does not jump out of position during installation.
2. Apply adhesive to 2 or 3 threads of the bolt.
  Text in Illustration
  ILLUSTRATION LEGEND

  *1 Adhesive

  Adhesive:

  Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent .

  Fig 2: Applying Adhesive To 2 Or 3 Threads Of Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
4. Connect the sensor connector.
INSTALL CAMSHAFT POSITION SENSOR (for Intake Side)
1. Apply a light coat of engine oil to the O-ring of the sensor.
  NOTE: Make sure that the O-ring is not cracked or does not jump out of position during installation.

  Fig 3: Locating Bolt And Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply adhesive to 2 or 3 threads of the bolt.
  Text in Illustration
  ILLUSTRATION LEGEND

  *1 Adhesive

  Adhesive:

  Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent .

  Fig 4: Applying Adhesive To 2 Or 3 Threads Of Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
4. Connect the sensor connector.
INSPECT FOR OIL LEAK
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
