ECM Power Source Circuit: Wiring Diagram

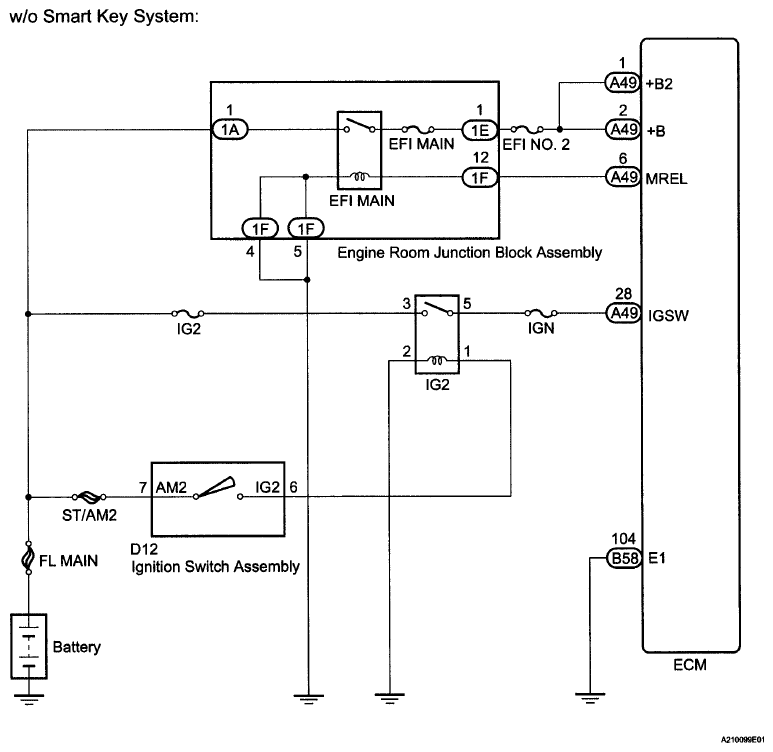

Fig 1: ECM Power Source Circuit - Wiring Diagram (1 Of 2)
G06023339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

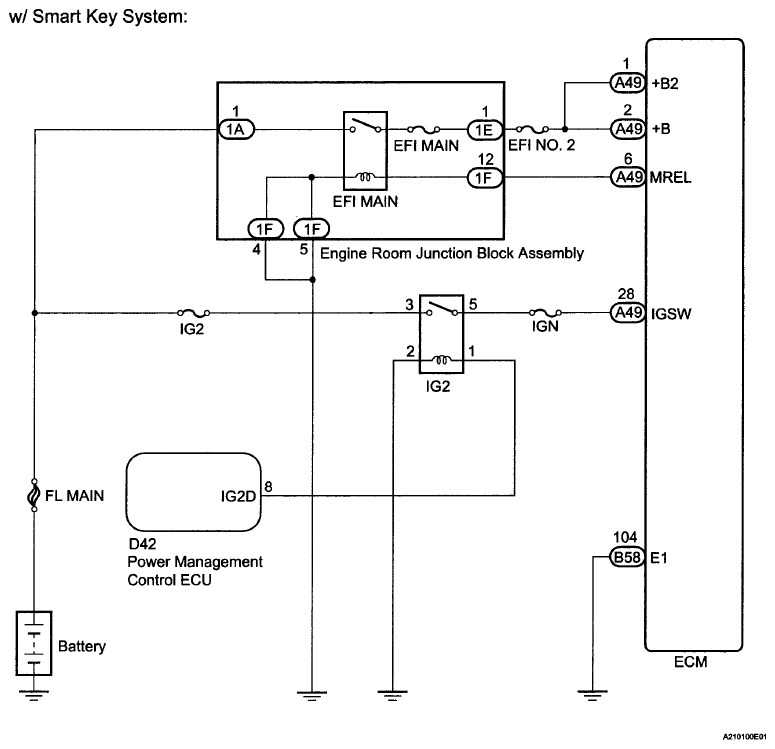

Fig 2: ECM Power Source Circuit - Wiring Diagram (2 Of 2)
G06023340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
