Throttle Body: Components

Fig 1: Identifying Throttle Body Replacement Components And Torque Specifications (1 Of 3)
G06023409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Throttle Body Replacement Components And Torque Specifications (2 Of 3)
G06023410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

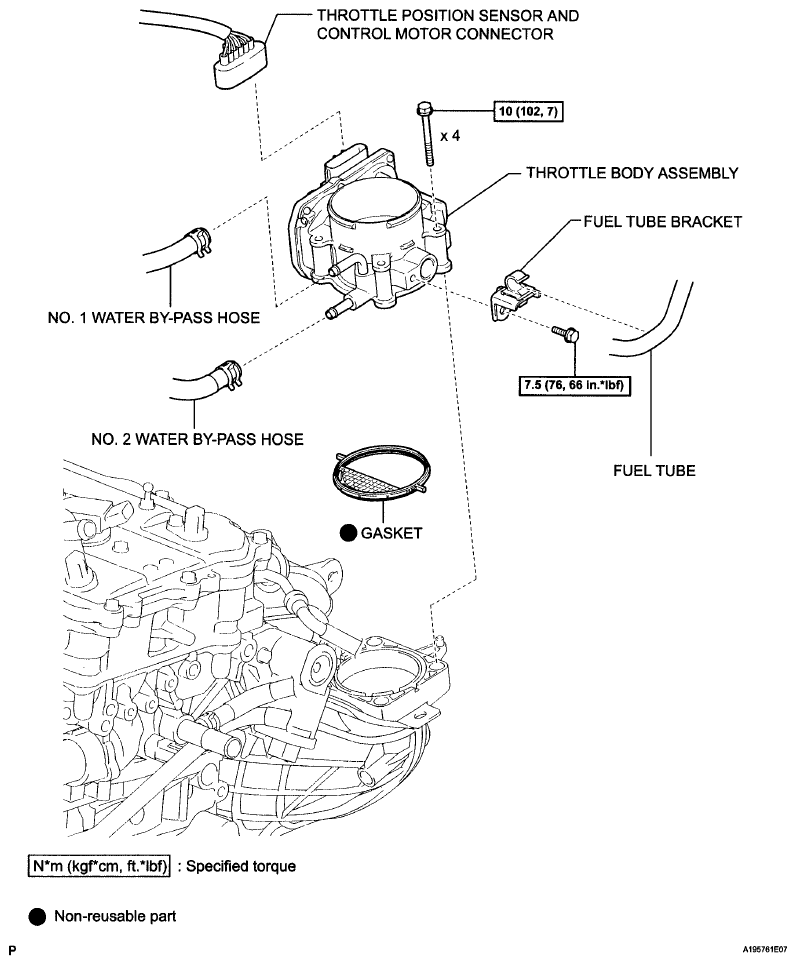

Fig 3: Throttle Body Replacement Components With Torque Specifications (3 Of 3)
G06023411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
