Customize Parameters

HINT:

The following items can be customized.

NOTE:
  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.
  1. POWER DOOR LOCK CONTROL SYSTEM

    Door Lock

    DOOR LOCK SPECIFICATION

    Tester Display Default Content Setting
    Unlock Key Twice ON Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For the OFF setting, turning it once unlocks all doors. ON or OFF
    Auto Lock OFF Function that locks all doors when the vehicle speed reaches a certain level. ON or OFF
    Auto Lock/Shift ON Function that locks all doors when the shift lever is moved from P to any position other than P when the engine is running and all doors are closed. ON or OFF
    Auto Unlock/Shift ON Function that unlocks all doors when the shift lever is moved to P from any position other than P while the ignition switch is ON. ON or OFF
    All Unlock/Open-Close OFF Function that unlocks the other doors when the driver side door is opened within 10 seconds after the ignition switch is turned to off. ON or OFF

    Illuminated Entry

    LIGHTING TIME REFERENCE

    Display Default Content Setting
    Lighting Time 15 s Function that changes the lighting time after closing all doors. (It will quickly fade out in case of turning the ignition switch from off to ACC or ON.) 7.5 s, 15 s or 30 s
  2. WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)

    Wireless Door Lock Control System

    WIRELESS DOOR LOCK CONTROL SYSTEM FUNCTION CHART

    Display (Item) Default Function Setting
    Wireless Control ON Function that turns wireless door lock function ON/OFF ON or OFF
    Hazard Answer Back ON When the doors are locked by wireless operation, the hazard warning lights flash once.
    When the doors are unlocked by wireless operation, the hazard warning lights flash twice.    		 ON or OFF
    Open Door Warning ON The buzzer sounds when LOCK is pressed when any of the doors are ajar. ON or OFF
    Unlock 2 Operation ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock. ON or OFF
    Panic Function ON Function to operate theft deterrent system by continuously pressing panic switch on transmitter for 0.8 seconds ON or OFF
    Auto Lock Time 60 s This function regulates the interval between unlocking and automatic relocking of doors. 30 s, 60s or 120 s
    Wireless Auto Lock ON This function turns the wireless auto lock function on or off. ON or OFF
    Wireless Buzzer Resp ON Wireless door lock buzzer response / ON or OFF ON or OFF
    Wireless Buzzer Vol Level7 Wireless door lock buzzer Volume Level7, Level6, Level5, Level4, Level3, Level2, Level 1 or Leve10
  3. WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System)

    Wireless Door Lock Control System

    WIRELESS DOOR LOCK CONTROL SYSTEM FUNCTION CHART

    Display (Item) Default Function Setting
    Wireless Control ON Function that turns wireless door lock function ON/OFF ON or OFF
    Hazard Answer Back ON When the doors are locked by wireless operation, the hazard warning lights flash once.
    When the doors are unlocked by wireless operation, the hazard warning lights flash twice.    		 ON or OFF
    Open Door Warning ON The buzzer sounds when LOCK is pressed when any of the doors are ajar. ON or OFF
    Unlock 2 Operation ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock. ON or OFF
    Panic Function ON Function to operate theft deterrent system by continuously pressing panic switch on transmitter for 0.8 seconds ON or OFF
    Auto Lock Time 60 s This function regulates the interval between unlocking and automatic relocking of doors. 30 s, 60 s or 120 s
    Wireless Auto Lock ON This function turns the wireless auto lock function on or off. ON or OFF
    Wireless Buzzer Resp ON Wireless door lock buzzer response / ON or OFF ON or OFF
    Wireless Buzzer Vol Level7 Wireless door lock buzzer Volume Level7, Level6, Level5, Level4, Level3, Level2, Level 1 or Level0
  4. SMART KEY SYSTEM (for Entry Function)

    Smart Key

    SMART KEY FUNCTION CHART

    Tester Display Default Content Setting
    Ignition Available Area All Function that switches the entry ignition detection area Front or All
    Park Wait Time 2.5 s Function that sets waiting time to permit opening door after door is locked with entry lock function 0.5 s, 1.5 s, 2.5 s, or 5 s
    Back Door Opening Operation Long Function that opens the back door when the driver has the key and presses back door opener switch assembly (opener switch) Long, Twice or OFF
    Key Low Battery Warning ON Function that warns driver that key battery is weak ON or OFF
    1. ENTRY UNLOCK MODE SWITCHING
      1. To change the vehicle entry unlock mode, make sure that the vehicle power is off and simultaneously push and hold the key lock switch and another key switch for 5 seconds. Driver door unlock default setting:

        When the switches are pressed and held for 5 seconds, the entry door unlock mode changes to the mode that is not currently selected.

        NOTE: After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
        • Driver door unlock mode:

          When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

        • All door unlock mode:

          When any touch sensor is touched, all doors unlock.

      2. The certification ECU (smart key ECU assembly) receives this signal from the door control receiver assembly and changes the smart key system to the entry unlock mode.
      3. The certification ECU (smart key ECU assembly) sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been changed.

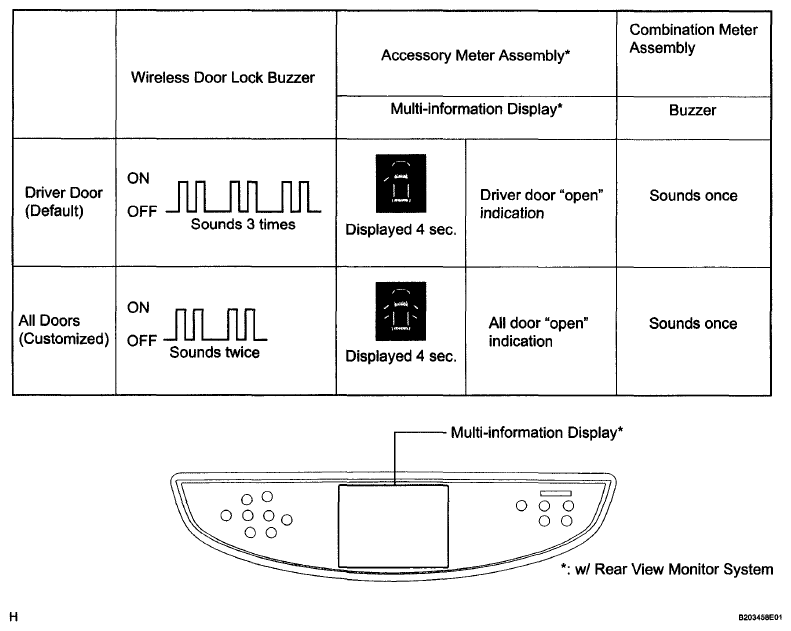

      Fig 1: Blinking Pattern Of Wireless Door Lock Buzzer
      G06022196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The procedure only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

    2. ELECTRICAL KEY CANCEL

      The electrical key cancel operation disables the following functions:

      • Entry Unlock/Lock
      • Entry Ignition
      • Entry Back Door Open
      • Electrical Key Lock-in Prevention
      • Warning
      1. The operation procedures are as follows:

      Precondition:

      Engine switch off, driver side door closed and unlocked.

      1. Push the unlock switch of the key once.
      2. Open the driver door within 5 seconds.
      3. Push the unlock switch of the key twice within 5 seconds.
      4. Close and open the driver door twice within 30 seconds.

        (Driver door: Close → Open → Close → Open)

      5. Push the unlock switch of the key twice within 5 seconds.
      6. Close and open the driver door within 30 seconds.

        (Driver door: Close → Open)

      7. Close the driver door within 5 seconds. When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

      To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

  5. SMART KEY SYSTEM (for Start Function)

    Smart Key

    SMART KEY FUNCTION CHART

    Tester Display Default Content Setting
    Ignition Available Area (Entry ignition available area) ALL Function to choose the available area for electrical key to start the engine and cancel the steering lock. FRONT or ALL
    Key Low Battery Warning ON Function to warning driver that the key battery is low. ON or OFF
    1. CUSTOMIZING FUNCTION WITHOUT TECHSTREAM

      Performing the following procedure disables the smart key system.

      HINT:

      To start the engine while the smart key system is disabled, follow the procedure for when the key battery is low (See SYSTEM DESCRIPTION ).

      1. The procedure to disable the smart key system is as follows:

      HINT:

      Repeating the following steps switches the smart key system status between activated and disabled.

      Preconditions:

      Engine switch off, driver door closed and unlocked.

      1. Press the unlock switch of the key once.
      2. Open the driver door within 5 seconds after pressing the unlock switch of the key in the previous step.
      3. Repeat closing and opening of the driver door twice within 30 seconds after opening the driver door in the previous step.
      4. Press the unlock switch of the key twice within 30 seconds after the last closing of the driver door in the previous step.
      5. Close and then open the driver door within 30 seconds after pressing the unlock switch of the key twice in the previous step.
      6. Close the driver door within 5 seconds after opening the driver door in the previous step.
      7. Check that the wireless buzzer sounds once*1 or twice*2.
      • *1: When the smart key system status is changed from activated to disabled.
      • *2: When the smart key system status is changed from disabled to activated.
  6. THEFT DETERRENT SYSTEM (w/ Smart Key System)

    Security

    THEFT DETERRENT SYSTEM CHART

    Display (Item) Default Content Setting
    Warning by Horn ON Function that allows the vehicle horn and theft deterrent horn to be used as warning devices. ON or OFF
    Passive Mode (Security System) OFF Passive Mode is a function that switches the theft deterrent system from the arming preparation state to the armed state 30 seconds after the key is removed from the actuation area and all doors, engine hood and back door are closed, even if the doors are not locked by wireless or door key lock operation.
    In Passive Mode, if the following operations are not performed within 14 seconds after a door is opened during armed state, the theft deterrent system will judge that condition as a theft and switch to the alarm sounding state.
    • Unlock any door by key or wireless operation
    • Turn the engine switch on (IG)
    		 ON or OFF
    Entry Delay 14 s Function that changes entry delay time (time before warning starts) for Passive Mode 0 s, 14 s or 30 s
  7. THEFT DETERRENT SYSTEM (w/o Smart Key System)

    Security

    THEFT DETERRENT SYSTEM CHART

    Display (Item) Default Content Setting
    Warning by Horn ON Function that allows the vehicle horn and theft deterrent horn to be used as warning devices ON or OFF
    Passive Mode (Security System) OFF Passive Mode is a function that switches the theft deterrent system from the aiming preparation state to the armed state 30 seconds after the key is removed from the key cylinder and all doors, engine hood and back door are closed, even if the doors are not locked by wireless or door key lock operation.
    In Passive Mode, if the following operations are not performed within 14 seconds after a door is opened during armed state, the theft deterrent system will judge that condition as a theft and switch to the alarm sounding state.
    • Unlock any door by key or wireless operation
    • Turn the ignition switch to ON
    		 ON or OFF
    Entry Delay 14 s Function that changes entry delay time (time before warning starts) for Passive Mode 0 s, 14 s or 30 s
  8. LIGHTING SYSTEM (INT)

    Illuminated Entry

    LIGHTING SYSTEM REFERENCE

    Tester Display Default Content Setting
    Lighting Time 15 s Changes the lighting time after closing all of the doors. (It will fade out immediately in case of turning the ignition switch from off to ACC or ON. 7.5 s, 15 s or 30 s
    I/L ON W/Door Key Unlock ON Lights up the transponder key amplifier*1, roof console box assembly, step or spot light assembly and engine switch illumination*2 when doors are unlocked using a mechanical key or door control transmitter. ON or OFF
    I/L when ACC OFF ON Lights up transponder key amplifier*1, roof console box assembly, step or spot light assembly and engine switch illuminatlon*2 when the ignition switch is turned from ACC or ON to off. ON or OFF
    HINT:
    • *1: w/o Smart Key System
    • *2: w/ Smart Key System
  9. METER/GAUGE SYSTEM

    Combination Meter

    COMBINATION METER REFERENCE

    Tester Display Default Content Setting
    Driver Side Seatbelt Warning Buzzer(1) ON Function to turn on/off the seat belt warning buzzer. ON or OFF
    Front Passenger Side Seatbelt Warning Buzzer(1) ON Function to turn on/off the seat belt warning buzzer. ON or OFF
    (1) This setting is only valid for the buzzer which sounds at 20 km/h (12 mph) or more.
  10. SEAT BELT WARNING SYSTEM

    Combination Meter

    COMBINATION METER REFERENCE

    Tester Display Default Content Setting
    Driver Side Seatbelt Warning Buzzer ON Function to sound the seat belt warning buzzer ON or OFF
    Front Passenger Side Seatbelt Warning Buzzer ON Function to sound the seat belt warning buzzer ON or OFF

    HINT:

    This setting is only valid for the buzzer which sounds at 20 km/h (13 mph) or more.

  11. AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)

    Air Conditioner

    AIR CONDITIONER SYSTEM REFERENCE CHART

    Display (Item) Default Content Setting
    Set Temperature Shift Normal Function to control with the shifted temperature against the displayed temperature +2 C, +1 C, Normal, -1 C or -2 C
    Evaporator Control AUTO Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify air and to prevent the windows from fogging up MANUAL or AUTO
    Compressor/Air Inlet DEF operation LINK Function to automatically turn the A/C on linked with the FRONT DEF button when the A/C is off NORMAL or LINK
    Compressor Mode AUTO Function to automatically turn the A/C on by pressing the AUTO button when blower is on and the A/C is off MANUAL or AUTO
    Air Inlet Mode AUTO Function to shift from INLET mode to RECIRCULATION mode when the A/C is turned on MANUAL or AUTO
    Foot / DEF Auto Mode ON Function to automatically turn the airflow from FOOT/ DEF on when AUTO mode is on OFF or ON
    Foot / DEF Automatic Blow Up Function ON Function to automatically increase the blower level when the defroster is on OFF or ON
    Ambient Temperature Shift Normal Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3 C, +2 C, +1 C, Normal, -1 C, -2 C or -3 C
  12. POWER BACK DOOR SYSTEM

    Power Back Door System

    POWER BACK DOOR SYSTEM REFERENCE CHART

    Tester Display Default Content Setting
    Wirelss PBD Operation 1 Motion Function that operates the power back door when the transmitter switch is pressed In specified way. 1 Motion, 1 Oper, 2 Oper, 0.8 s or OFF
    PBD SW Operation 0.8 s Function that turns the power back door closer switch on when a switch is pushed once or held down for 0.8 sec.. 0.8 s or 0.0 s
    PBD Buzzer(1) OFF This function makes the power back door buzzer sound when the power back door is operating. OFF or ON
    (1) The warning buzzer that sounds, when the power back door is operating cannot be customized. (Even if this function is set to "off", the buzzer will still sound.)
  13. LIGHTING SYSTEM (EXT)

    Light Control

    LIGHT CONTROL REFERENCE CHART

    Display Default Content Setting
    Sensitivity Normal Adjusts the sensitivity of the automatic light control system. Light 2, Light 1, Normal, Dark 1 or Dark 2
    DRL Function On ON/OFF of the DRL function On or Off
    Disp Ex ON Sen Normal Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light, and clock. Light 2, Light 1, Normal, Dark 1 or Dark 2
    Disp Ex OFF Sen Normal Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light, and clock. Light 2, Light l, Normal, Dark 1 or Dark 2
    Light Auto OFF Delay 30 s Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all the doors with the low beam headlights on. Off, 30 s, 60 s or 90 s
    Automatic High Beams On ON/OFF of the automatic high beam function. On or Off
