Steering Lock System: Initialization

HINT:

In vehicles equipped with the push-button start function, the starting function may not be operational after recharging or while jump-starting a discharged battery. This condition is most likely to occur if battery voltage drops below 9 V. The following procedure has been developed to address this condition.

1. INITIALIZATION PROCEDURE
   1. Confirm that the D/C CUT fuse is installed.

      Text in Illustration

      ILLUSTRATION REFERENCE



      *1

      DCC Fuse

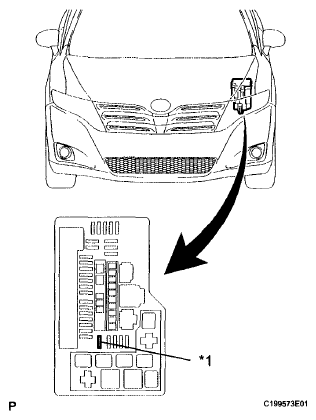

      Fig 1: Identifying DCC Fuse

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the D/C CUT fuse is not installed, install it at this time.

   2. Move the shift lever to P.
   3. Turn the engine switch off.
   4. Open the driver's door.

      HINT:

      Opening the driver's door will start an initialization process between the steering lock ECU (steering lock actuator assembly) and the engine room junction block.

   5. Depress the brake pedal.
   6. Press the engine switch.
