Active Control Engine Mount System: Wiring Diagram

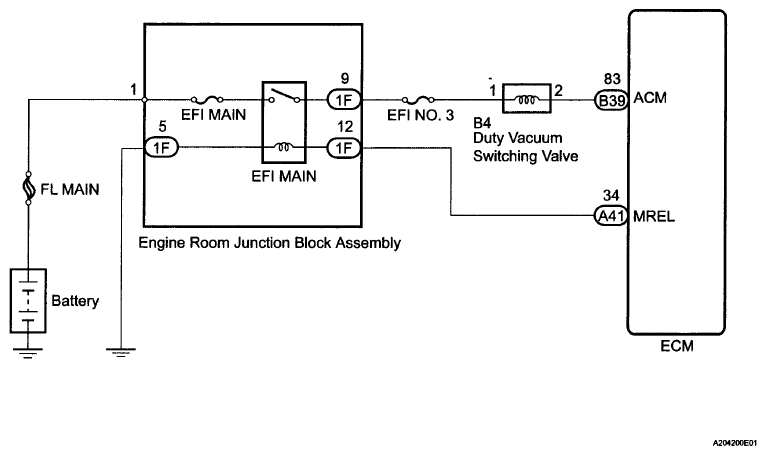

Fig 1: Active Control Engine Mount System - Wiring Pattern
G06023848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
