Active Control Engine Mount: Components

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specification (1 Of 2)
G06024000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

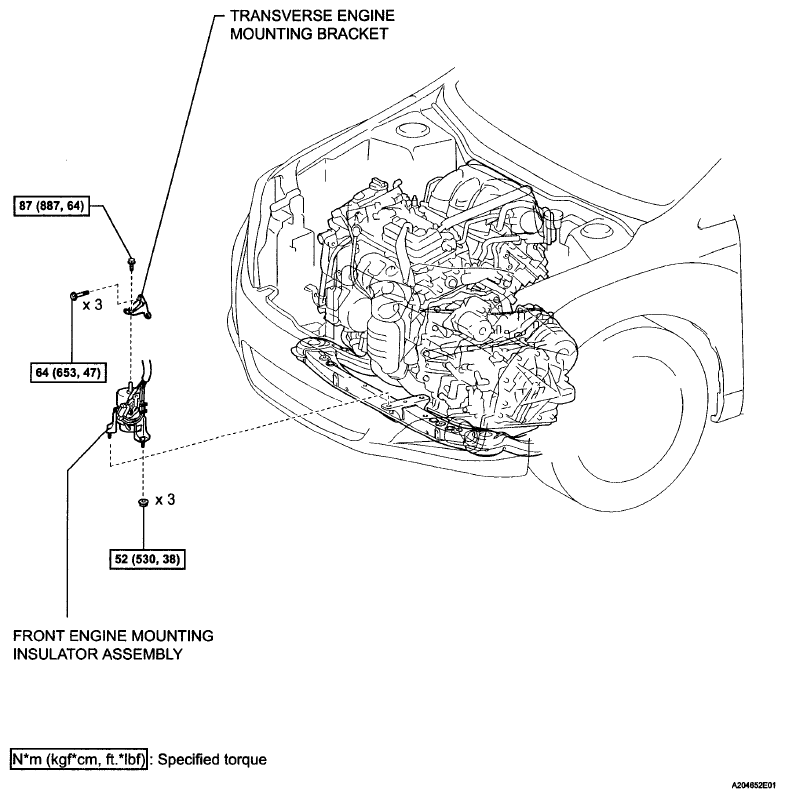

Fig 2: Active Control Engine Mount Replacement Components With Torque Specifications (2 Of 2)
G06024001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
