Camshaft Position Sensor: Components

Fig 1: Identifying Camshaft Position Sensor Replacement Components (1 Of 3)
G06023964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

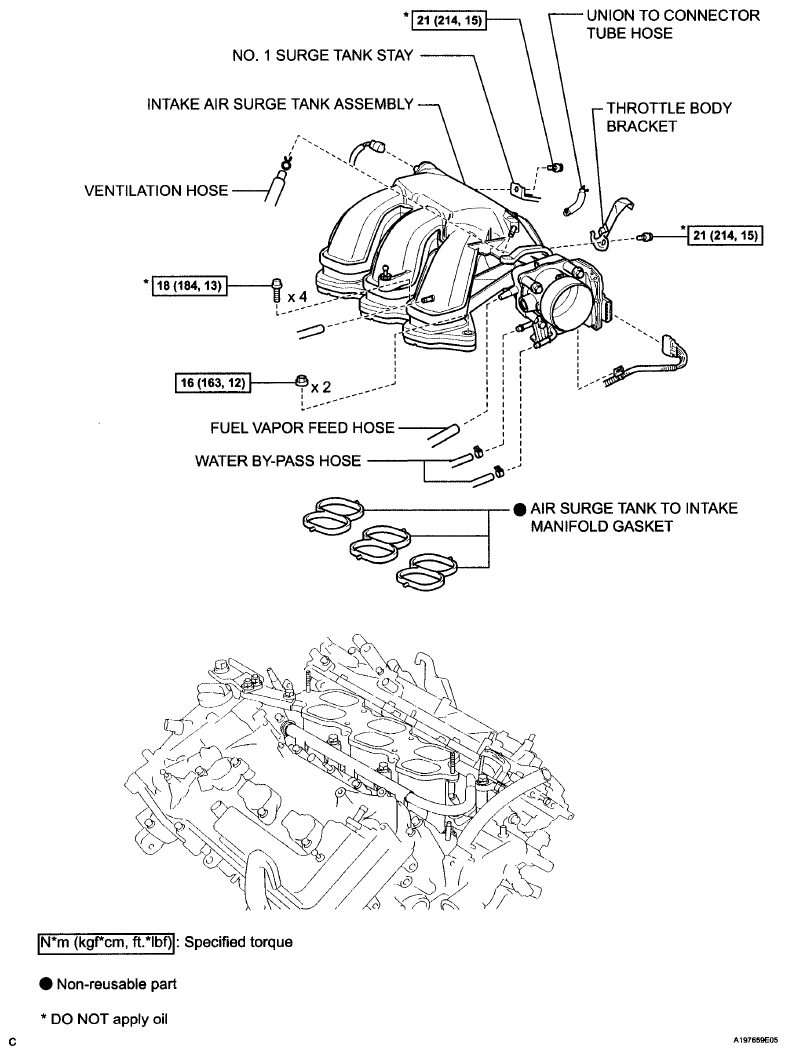

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 3)
G06024025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

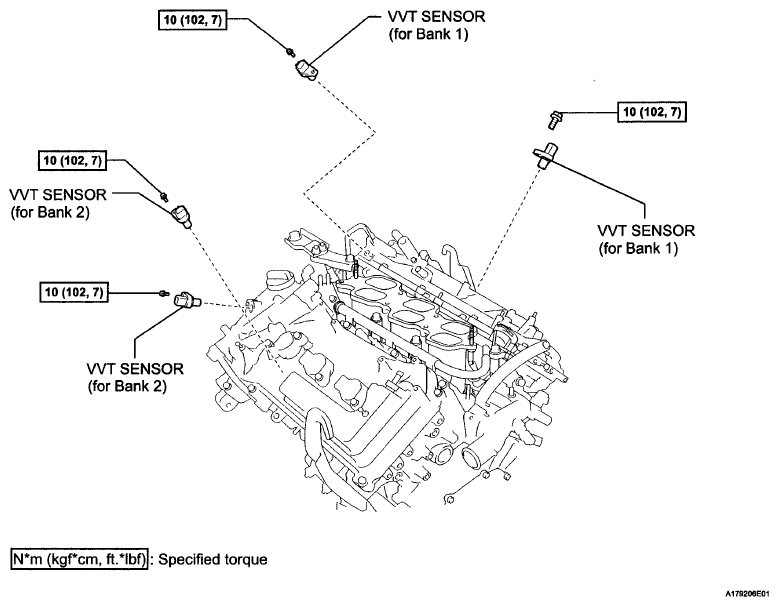

Fig 3: Camshaft Position Sensor Replacement Components With Torque Specifications (3 Of 3)
G06024026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
