Engine Coolant Temperature Sensor: Components

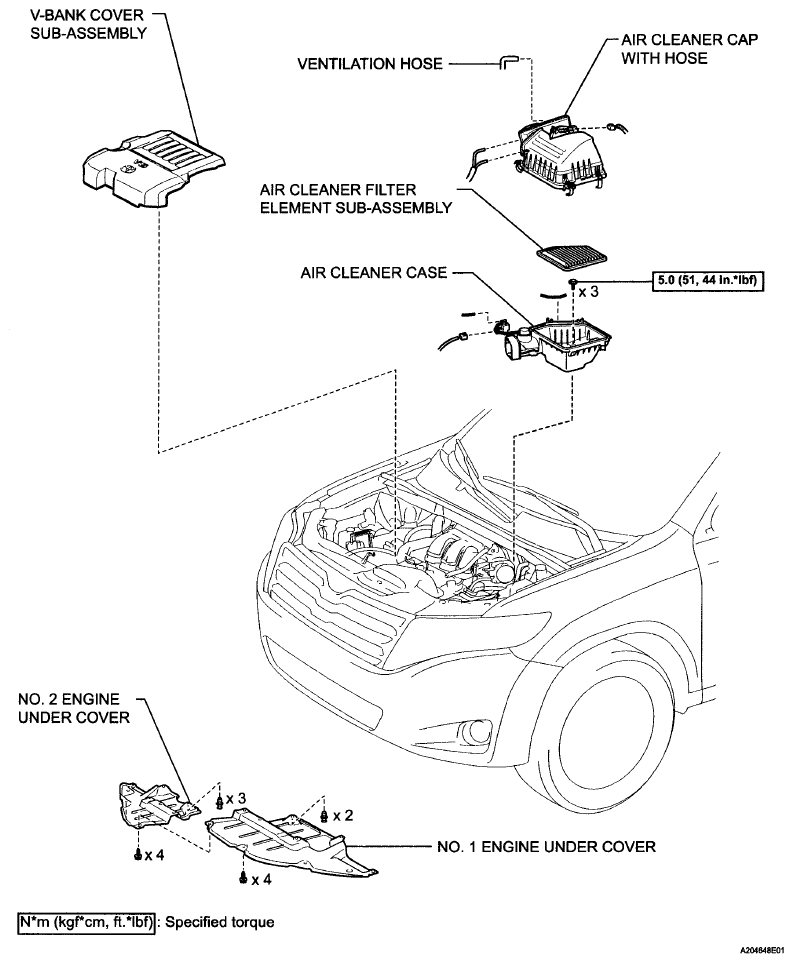

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification (1 Of 2)
G06024045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

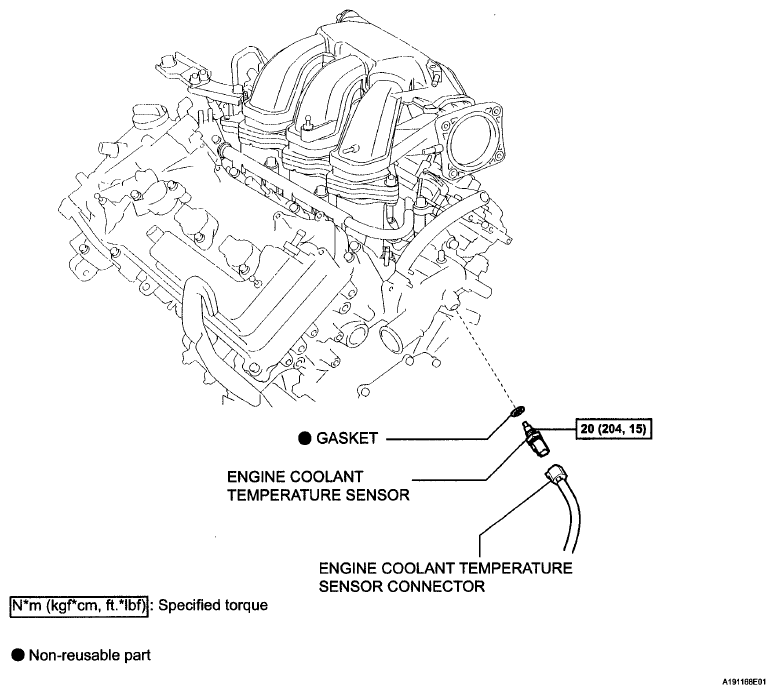

Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
G06024046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
