Engine Coolant Temperature Sensor: Installation

  1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
    1. Install a new gasket onto the engine coolant temperature sensor.
    2. Install the engine coolant temperature sensor.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    3. Connect the engine coolant temperature sensor connector.

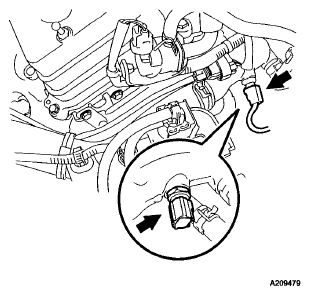

      4. Fig 1: Locating Engine Coolant Temperature Sensor
      G06024047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CLEANER CASE  (See INSTALLATION )
  3. INSTALL AIR CLEANER CAP WITH HOSE  (See INSTALLATION  )
  4. ADD ENGINE COOLANT  (See REPLACEMENT )
  5. INSPECT FOR COOLANT LEAK  (See COOLING SYSTEM )
  6. INSTALL V-BANK COVER SUB-ASSEMBLY  (See INSTALLATION )
  7. INSTALL NO. 2 ENGINE UNDER COVER
  8. INSTALL NO. 1 ENGINE UNDER COVER
