Ignition Coil And Spark Plug: Components

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components (1 Of 3)
G06023964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specification (2 Of 3)
G06024035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

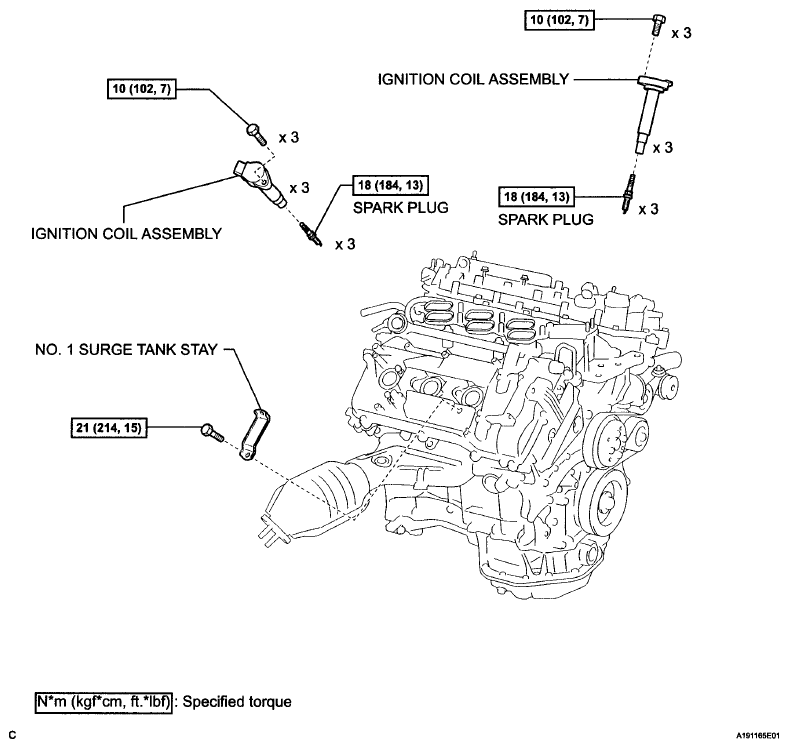

Fig 3: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 3)
G06024036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
