Knock Sensor: Installation

  1. INSTALL KNOCK CONTROL SENSOR
    1. Install the 2 knock control sensors with the 2 bolts as shown in the illustration.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      NOTE: Make sure that each knock control sensor is in the correct position.
    2. Connect the 2 knock control sensor connectors.

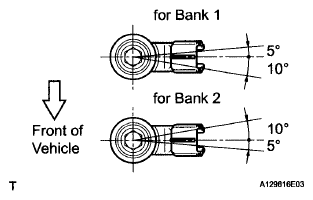

      Fig 1: Identifying Knock Control Sensors With Bolts Torque Angle
      G06024053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTAKE MANIFOLD
    1. Install the intake manifold (See INSTALLATION ).
