Inspection Procedure

  1. CHECK MIL
    1. Check that the Malfunction Indicator Lamp (MIL) illuminates when turning the ignition switch to ON.

      OK:

      MIL lights up  .

      NG: Go to step 2

      OK: PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE )

  2. CHECK CONNECTION BETWEEN TECHSTREAM AND ECM
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Check the communication between the Techstream and ECM.

      Result

      RESULT REFERENCE

      Result Proceed to
      Communication Is possible A
      Communication Is not possible B

      A: GO TO MIL CIRCUIT

      B: Go to next step

  3. CHECK MIL (THROTTLE POSITION SENSOR)
    1. Disconnect the throttle position sensor connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Result Proceed to
      MIL Illuminates A
      MIL does not Illuminate B
    4. Reconnect the throttle position sensor connector.

      A: REPLACE THROTTLE WITH MOTOR BODY ASSEMBLY  (See REMOVAL  )

      B: Go to next step

  4. CHECK MIL (ACCELERATOR PEDAL SENSOR ASSEMBLY)
    1. Disconnect the accelerator pedal sensor assembly connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Result Proceed to
      MIL Illuminates A
      MIL does not Illuminate B
    4. Reconnect the accelerator pedal sensor assembly connector.

      A: REPLACE ACCELERATOR PEDAL ASSEMBLY  (See REMOVAL  )

      B: Go to next step

  5. CHECK MIL (VVT SENSOR FOR INTAKE SIDE BANK 1)
    1. Disconnect the VVT sensor for intake side bank 1 connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL

      Result

      RESULT REFERENCE

      Result Proceed to
      MIL illuminates A
      MIL does not Illuminate B
    4. Reconnect the VVT sensor for intake side bank 1 connector.

      B: REPLACE VVT SENSOR FOR INTAKE SIDE BANK 1  (See REMOVAL  )

      A: Go to next step

  6. CHECK MIL (VVT SENSOR FOR INTAKE SIDE BANK 2)
    1. Disconnect the VVT sensor for intake side bank 2 connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Result Proceed to
      MIL illuminates A
      MIL does not Illuminate B
    4. Reconnect the VVT sensor for intake side bank 2 connector.

      B: REPLACE VVT SENSOR FOR INTAKE SIDE BANK 2  (See REMOVAL  )

      A: Go to next step

  7. CHECK MIL (VVT SENSOR FOR EXHAUST SIDE BANK 1)
    1. Disconnect the VVT sensor for exhaust side bank 1 connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Result Proceed to
      MIL Illuminates A
      MIL does not Illuminate B
    4. Reconnect the VVT sensor for exhaust side bank 1 connector.

      B: REPLACE VVT SENSOR FOR EXHAUST SIDE BANK 1  (See REMOVAL  )

      A: Go to next step

  8. CHECK MIL (VVT SENSOR FOR EXHAUST SIDE BANK 2)
    1. Disconnect the VVT sensor for exhaust side bank 2 connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Result Proceed to
      MIL Illuminates A
      MIL does not Illuminate B
    4. Reconnect the VVT sensor for exhaust side bank 2 connector.

      B: REPLACE VVT SENSOR FOR EXHAUST SIDE BANK 2  (See REMOVAL  )

      A: Go to next step

  9. CHECK MIL (CANISTER PUMP MODULE)
    1. Disconnect the canister pump module connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT REFERENCE

      Result Proceed to
      MIL Illuminates A
      MIL does not Illuminate B
    4. Reconnect the canister pump module connector.

      B: REPLACE CANISTER  (See REMOVAL )

      A: Go to next step

  10. CHECK HARNESS AND CONNECTOR (THROTTLE POSITION SENSOR - ECM)
    1. Disconnect the throttle position sensor connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

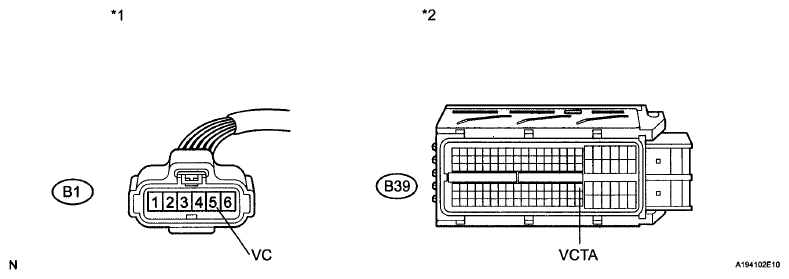

      Fig 1: Identifying Terminals Of Throttle Position Sensor Connector
      G06023909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITIONS CHART

      Tester Connection Condition Specified Condition
      B39-96 (VCTA) or B1-5 (VC) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to Throttle Position Sensor) *2 Front view of wire harness connector (to ECM)
    4. Reconnect the throttle position sensor connector.
    5. Reconnect the ECM connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (THROTTLE POSITION SENSOR - ECM)

      OK: Go to next step

  11. CHECK HARNESS AND CONNECTOR (ACCELERATOR PEDAL SENSOR ASSEMBLY - ECM)
    1. Disconnect the accelerator pedal sensor assembly connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

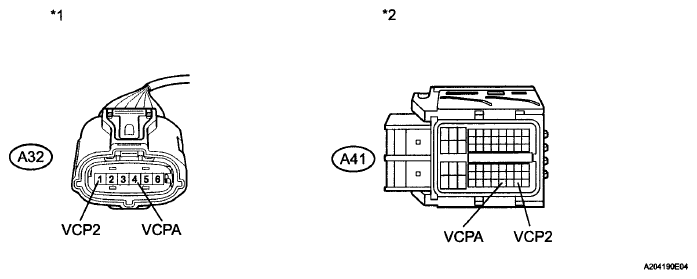

      Fig 2: Identifying Terminals Of Accelerator Pedal Sensor Assembly Connector
      G06023910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITIONS CHART

      Tester Connection Condition Specified Condition
      A32-1 (VCP2) or A41-59 (VCP2) - Body ground Always 10 kΩ or higher
      A32-4 (VCPA) or A41-57 (VCPA) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to Accelerator Pedal Sensor Assembly) *2 Front view of wire harness connector (to ECM)
    4. Reconnect the accelerator pedal position sensor.
    5. Reconnect the ECM connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (ACCELERATOR PEDAL POSITION SENSOR - ECM)

      OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (VVT SENSOR FOR INTAKE SIDE BANK 2 - ECM)
    1. Disconnect the VVT sensor for intake side bank 2 connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

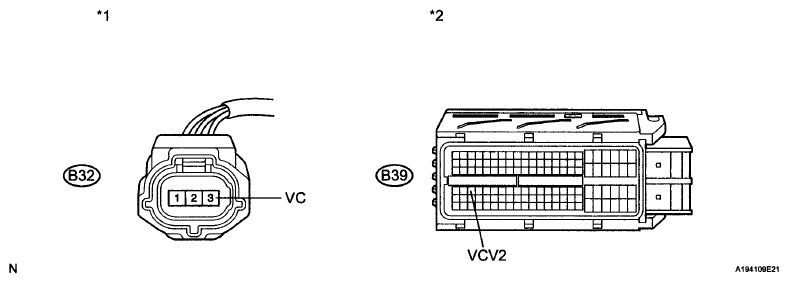

      Fig 3: Identifying Terminals Of VVT Sensor Connector
      G06023911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITIONS CHART

      Tester Connection Condition Specified Condition
      B32-3 (VC) or B39-66 (VCV2) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to VVT Sensor for Intake Side Bank 2) *2 Front view of wire harness connector (to ECM)
    4. Reconnect the VVT sensor for intake side bank 2 connector.
    5. Reconnect the ECM connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (VVT SENSOR FOR INTAKE SIDE BANK 2 - ECM)

      OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (VCV1 CIRCUIT)
    1. Disconnect the VVT sensor for intake side bank 1 connector.
    2. Disconnect the VVT sensor for exhaust side bank 1 connector.
    3. Disconnect the VVT sensor for exhaust side bank 2 connector.
    4. Disconnect the canister pump module connector.
    5. Disconnect the ECM connector.
    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITIONS CHART

      Tester Connection Condition Specified Condition
      B39-67 (VCV1) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to ECM)
    7. Reconnect the canister pump module connector.
    8. Reconnect the VVT sensor for exhaust side bank 2 connector.
    9. Reconnect the VVT sensor for exhaust side bank 1 connector.
    10. Reconnect the VVT sensor for intake side bank 1 connector.

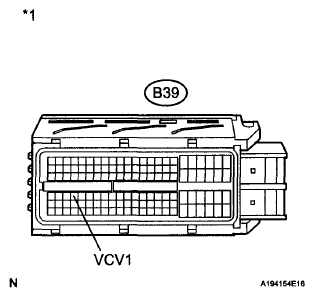

      Fig 4: Identifying Terminals Of B39 ECM Connector
      G06023912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Reconnect the ECM connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: REPLACE ECM  (See REMOVAL  )
