Automatic Light Control Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

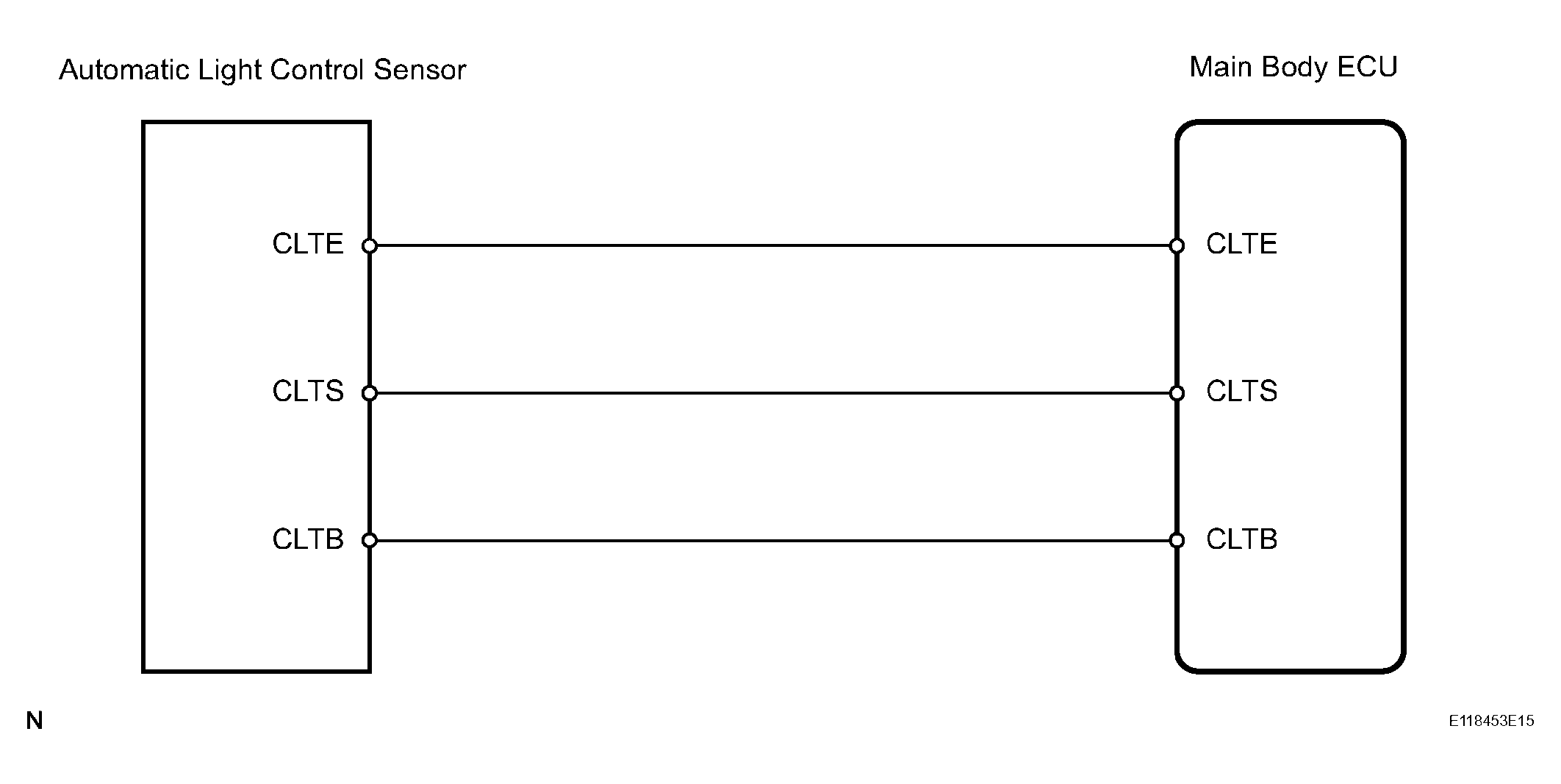

Fig 1: Automatic Light Control Sensor Circuit - Wiring Diagram
G04475804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
