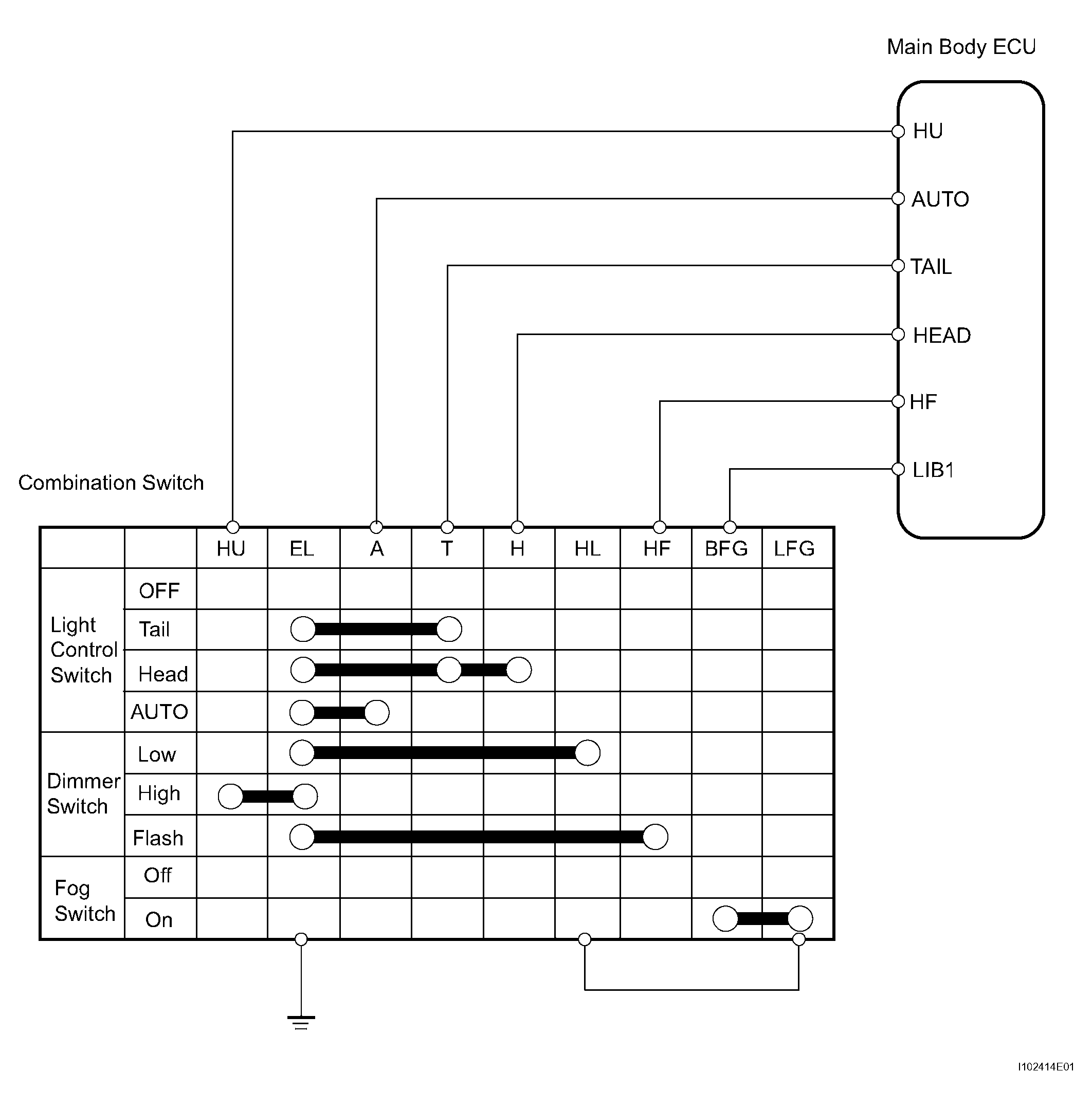

Light Control Switch Circuit: Wiring Diagram

1. Check the DATA LIST for the proper functioning of the combination switch.

   Main body ECU

   MAIN BODY ECU DATA LIST



   Tester Display	Measurement Item / Range	Normal Condition	Diagnostic Note
   Dimmer SW	Headlight dimmer switch signal / ON or OFF	ON: Headlight dimmer switch is in HIGH or FLASH position OFF: Headlight dimmer switch is in LOW position	-
   Passing Light SW (body)	Headlight dimmer switch signal / ON or OFF	ON: Headlight dimmer switch is in FLASH position OFF: Headlight dimmer switch is in except FLASH position	-
   Auto Light SW	Auto light switch signal / ON or OFF	ON: Light control switch is in AUTO position OFF: Light control switch is in except AUTO position	-
   Headlight SW (Head)	Headlight control switch signal / ON or OFF	ON: Light control switch is in HEAD position OFF: Light control switch is in except HEAD position	-
   Headlight SW (Tail)	Taillight switch signal / ON or OFF	ON: Light control switch is in TAIL or HEAD position OFF: Light control switch is not in TAIL or HEAD position	-

OK : PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN  PROBLEM SYMPTOMS TABLE

NG : GO TO NEXT STEP

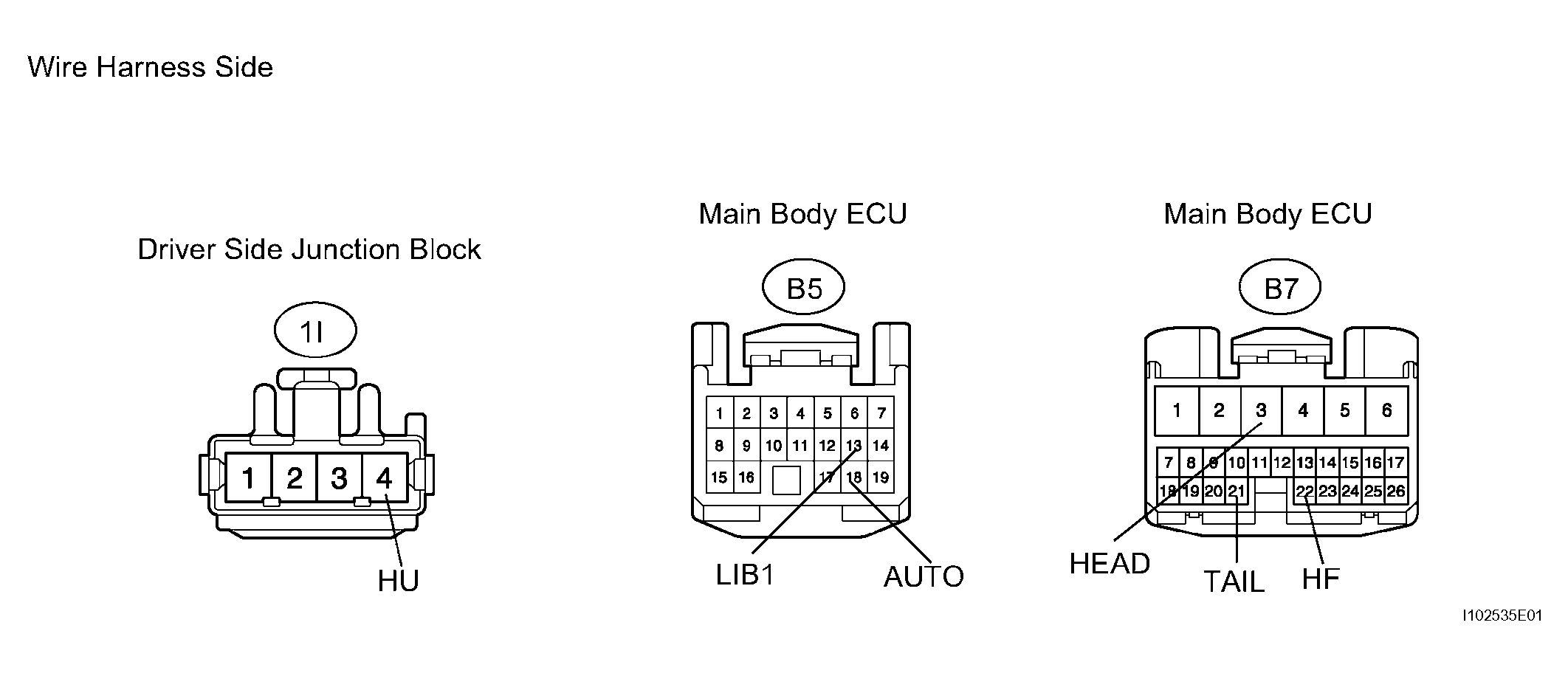

Fig 2: Identifying 1L, B5 And B7 Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the 1I junction block connector.
2. Disconnect the B5 and B7 ECU connectors.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION - SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   1I-4 (HU) - Body ground	Headlight dimmer switch LOW	10 kΩ or higher
   	Headlight dimmer switch HIGH	Below 1Ω
   B5-13 (LIB1) - Body ground	Fog switch OFF	10 kΩ or higher
   	Fog switch AUTO	Below 1Ω
   B5-18 (AUTO) - Body ground	Light control switch OFF	10 kΩ or higher
   	Light control switch AUTO	Below 1Ω
   B7-3 (HEAD) - Body ground	Light control switch OFF	10 kΩ or higher
   	Light control switch HEAD	Below 1Ω
   B7-21 (TAIL) - Body ground	Light control switch OFF	10 kΩ or higher
   	Light control switch TAIL	Below 1Ω
   B7-22 (HF) - Body ground	Headlight dimmer switch LOW	10 kΩ or higher
   	Headlight dimmer switch FLASH	Below 1Ω

OK : PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN  PROBLEM SYMPTOMS TABLE

NG : GO TO NEXT STEP

1. Inspect light control switch.
   1. Measure the resistance of the switch.

      Standard resistance

      LIGHT CONTROL SWITCH STANDARD RESISTANCE



      Tester Connection	Switch Condition	Specified Condition
      12 (EL) - 18 (T) 12 (EL) - 19 (A) 12 (EL) - 20 (H)	OFF	10 kΩ or higher
      12 (EL) - 18 (T)	TAIL	Below 1Ω
      12 (EL) - 18 (T) 12 (EL) - 20 (H)	HEAD
      12 (EL) - 19 (A)	AUTO

      Fig 3: Identifying Combination Switch Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect headlight dimmer switch.
   1. Measure the resistance of the switch.

      Standard resistance

      HEADLIGHT DIMMER SWITCH RESISTANCE



      Tester Connection	Switch Condition	Specified Condition
      11 (HU) - 12 (EL) 12 (EL) - 17 (HF)	FLASH	Below 1Ω
      12 (EL) - 16 (HL)	Low
      11 (HU) - 12 (EL)	High

3. Inspect fog switch.
   1. Measure the resistance of the switch.

      Standard resistance

      FOG SWITCH RESISTANCE



      Tester Connection	Switch Condition	Specified Condition
      4 (BFG) - 3 (LFG)	ON	Below 1Ω
      	OFF	10 kΩ or higher

NG : REPLACE COMBINATION SWITCH

OK : REPAIR OR REPLACE HARNESS AND CONNECTOR
