Engine Control: Notes

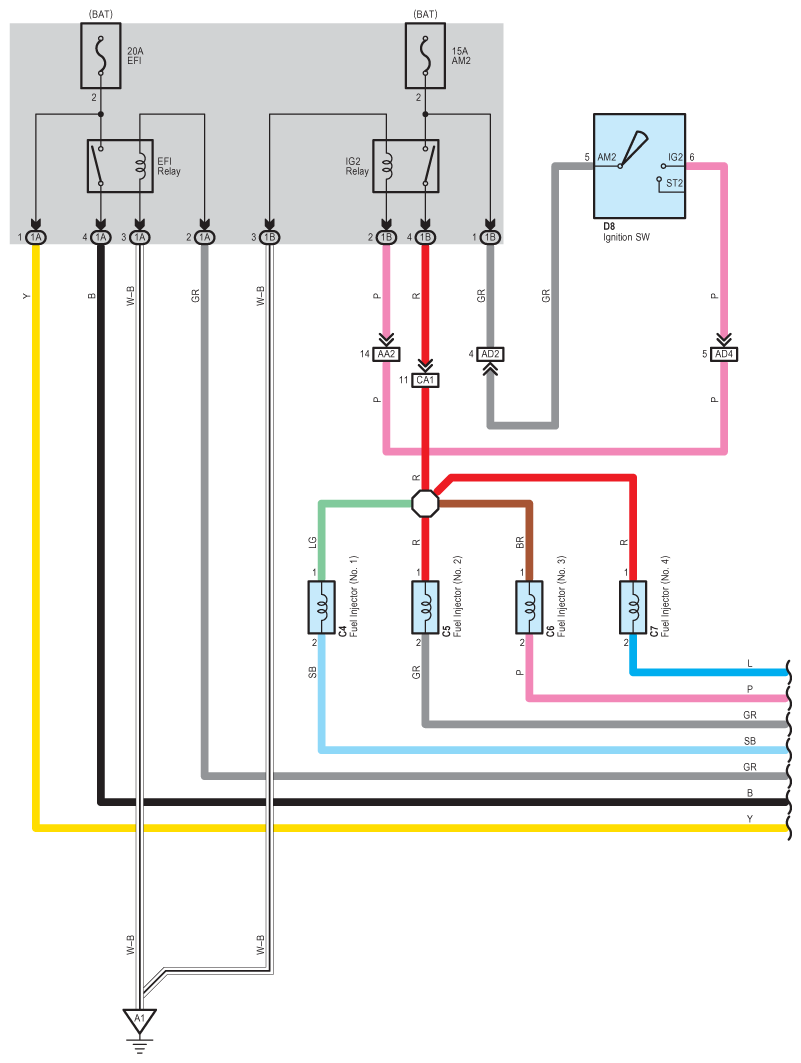

Fig 1: Engine Control - Circuit Diagram (1 Of 10)

G07611288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

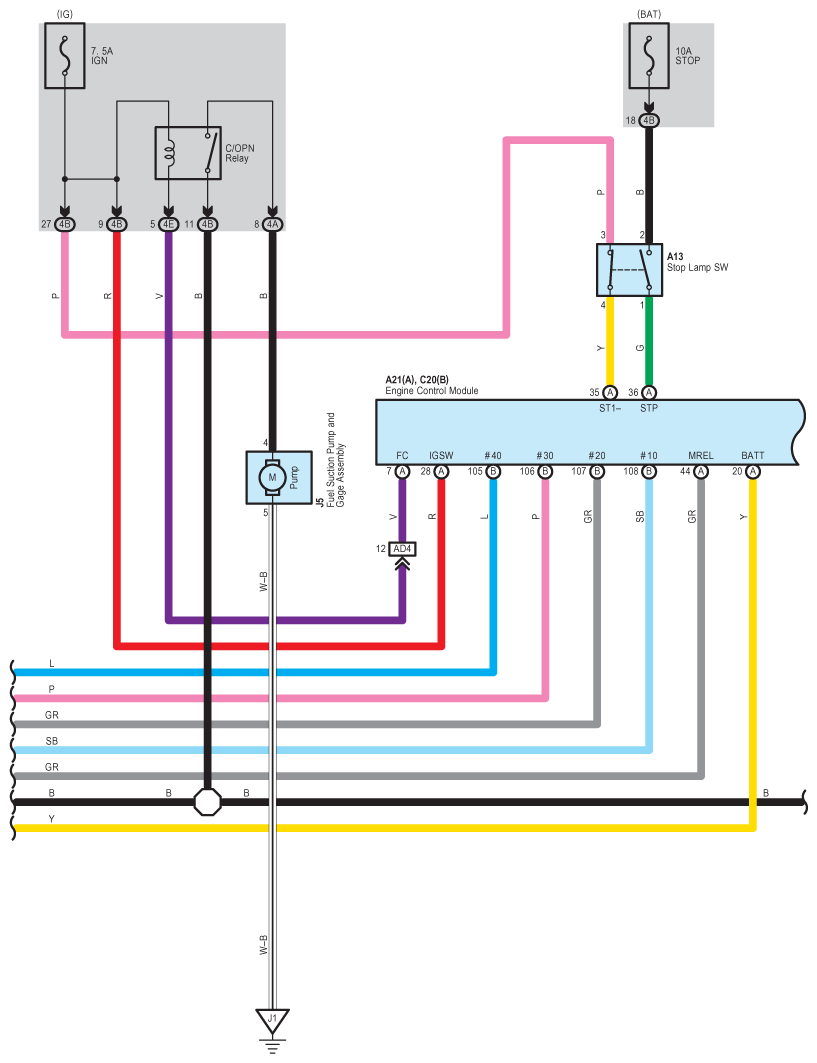

Fig 2: Engine Control - Circuit Diagram (2 Of 10)

G07611289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

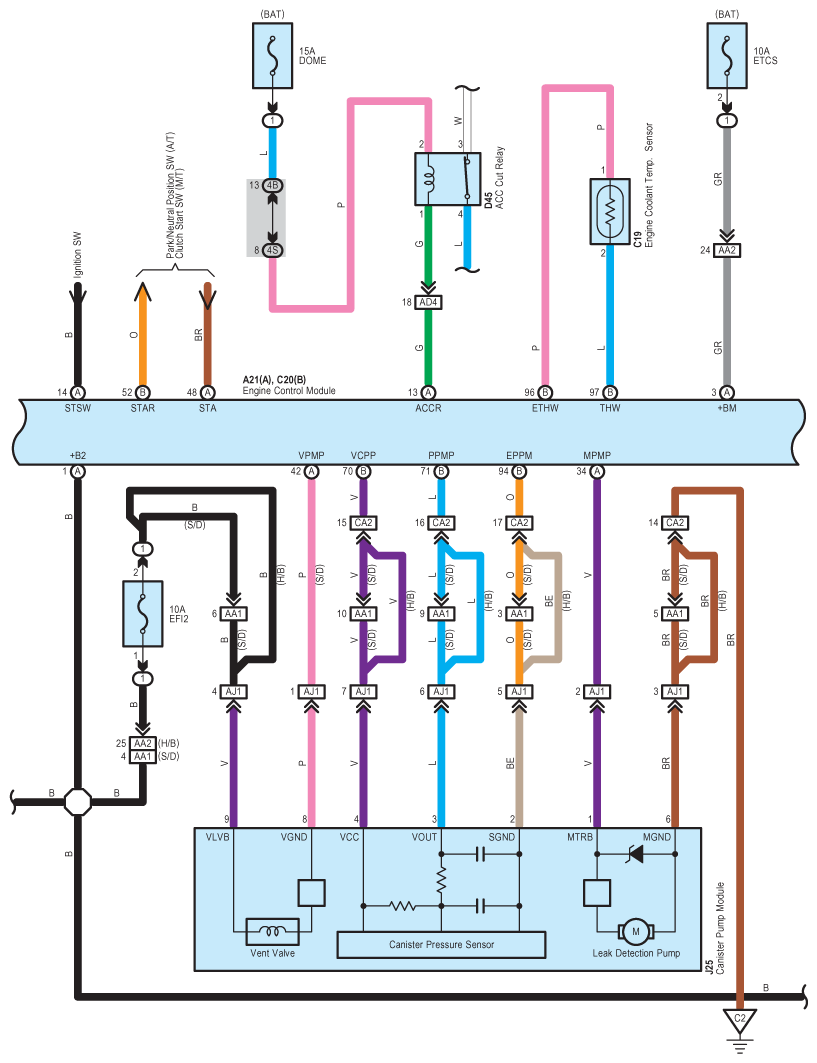

Fig 3: Engine Control - Circuit Diagram (3 Of 10)

G07611290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

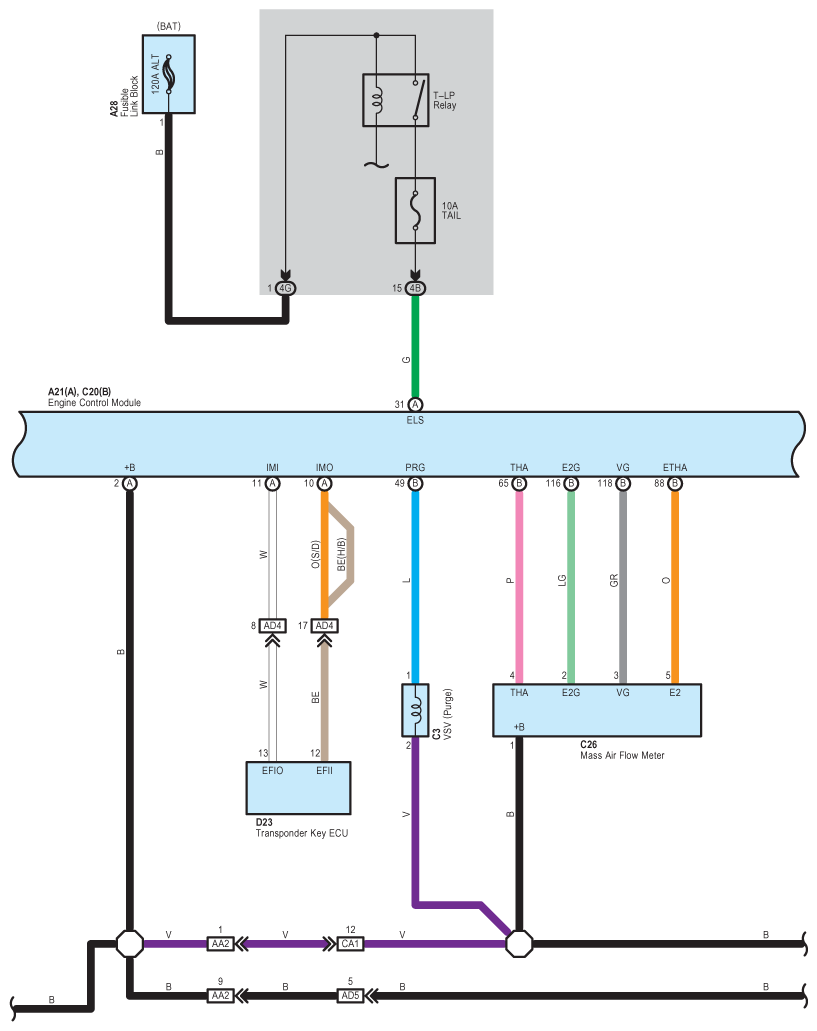

Fig 4: Engine Control - Circuit Diagram (4 Of 10)

G07611291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

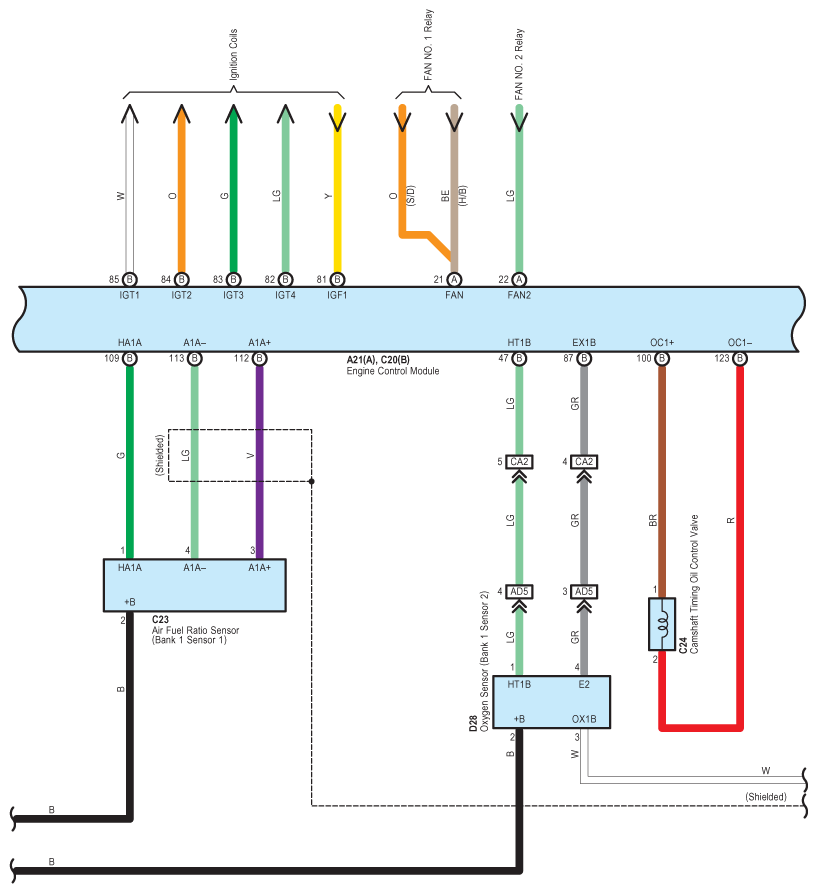

Fig 5: Engine Control - Circuit Diagram (5 Of 10)

G07611292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

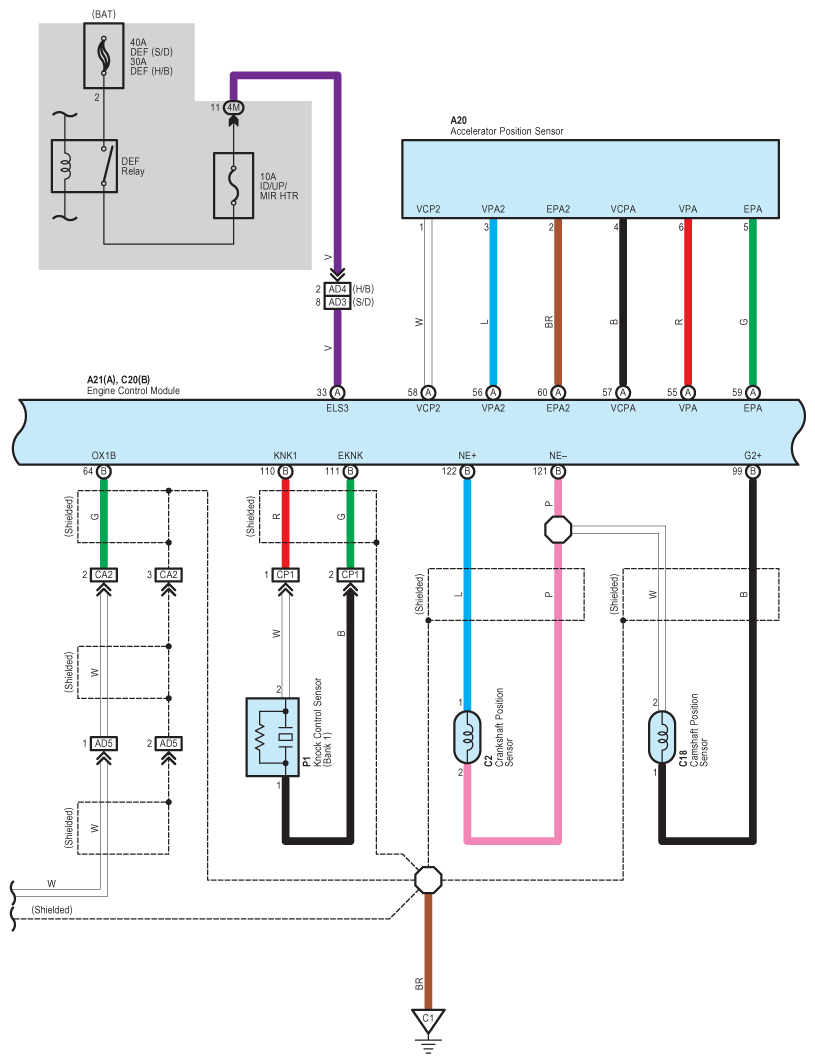

Fig 6: Engine Control - Circuit Diagram (6 Of 10)

G07611293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

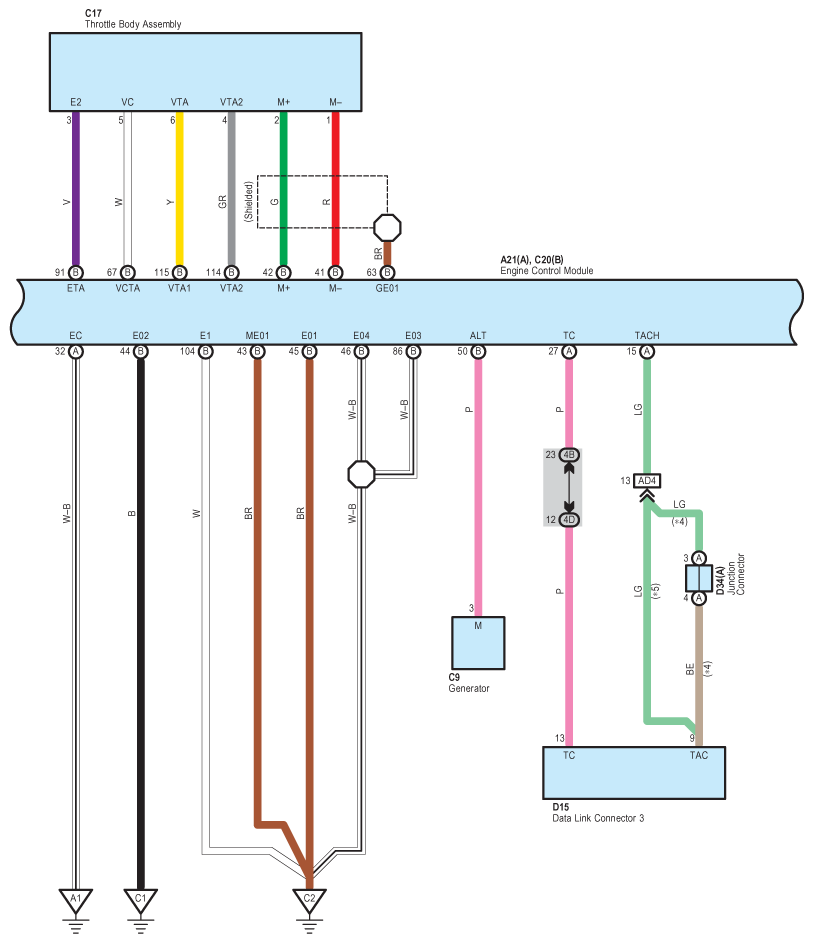

Fig 7: Engine Control - Circuit Diagram (7 Of 10)

G07611294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

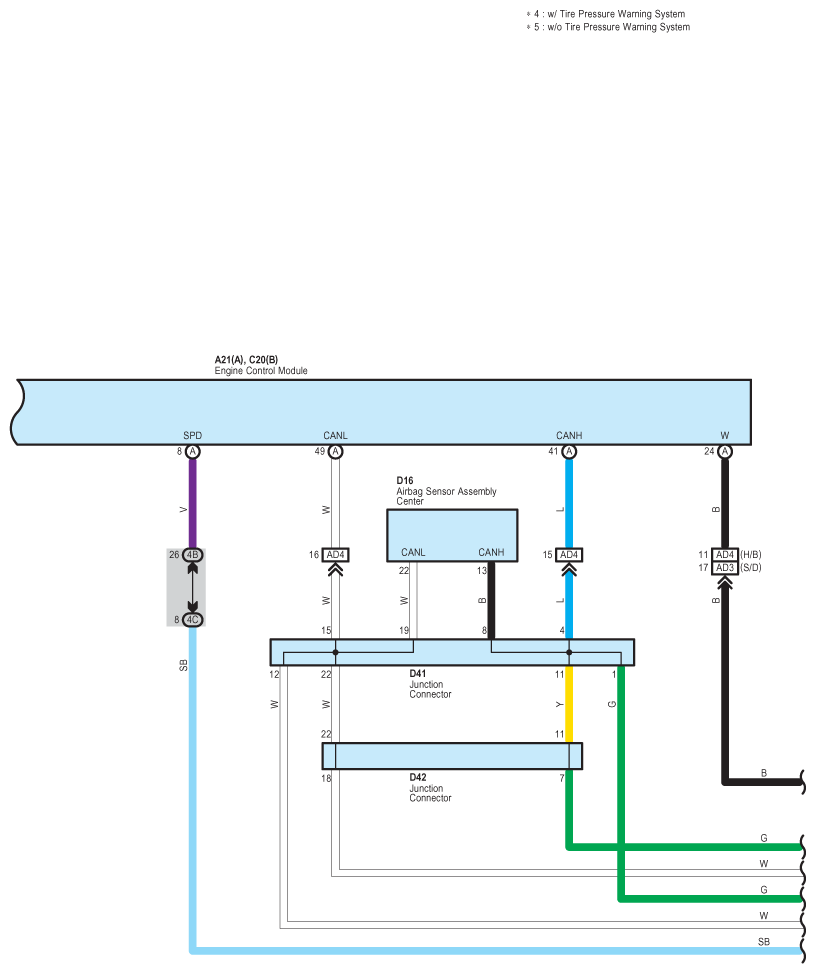

Fig 8: Engine Control - Circuit Diagram (8 Of 10)

G07611295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

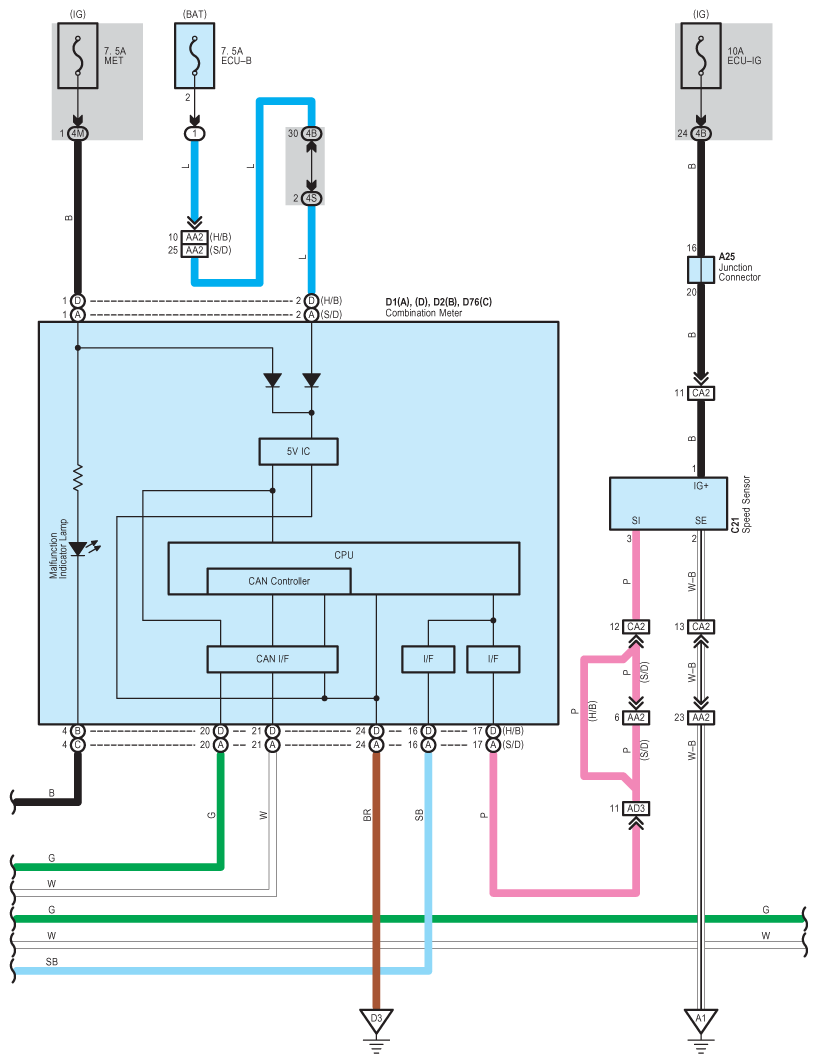

Fig 9: Engine Control - Circuit Diagram (9 Of 10)

G07611296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

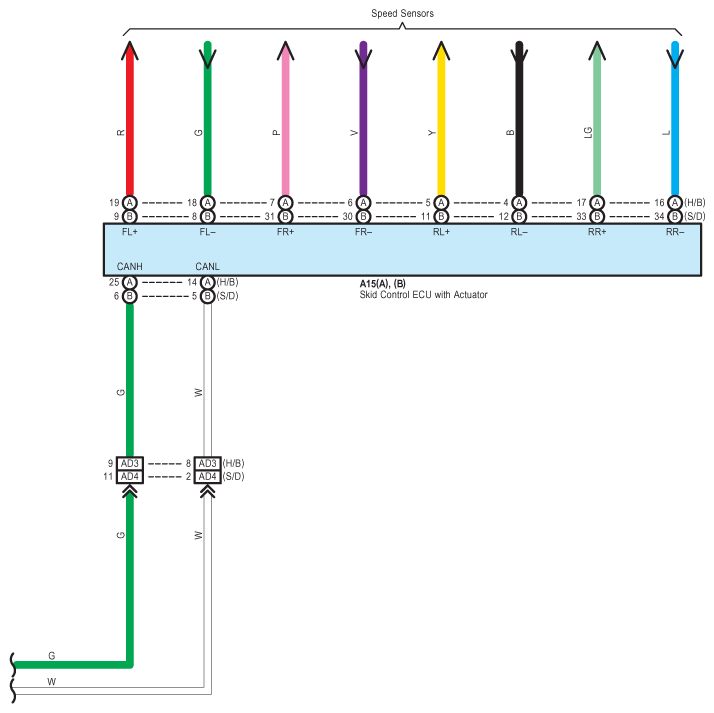

Fig 10: Engine Control - Circuit Diagram (10 Of 10)

G07611297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
