Inspection Procedure

  1. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE) (POWER SOURCE)
    1. Disconnect the F1 power window regulator switch assembly connector.
      Fig 1: Identifying Power Window Regulator Switch Connectors
      G04833766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE) (POWER SOURCE) VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      F1-3-Body ground Ignition switch ON 11 to 14 V
    3. Reconnect the F1 power window regulator switch assembly connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
    1. Remove the power window regulator switch assembly.
      Fig 2: Identifying Power Window Regulator Switch Connectors (Component Side)
      G04833767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the switch when the switch is operated.

      Standard resistance

      POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE) RESISTANCE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      3-4
      2-1      		 UP Below 1 Ω
      5-4
      2-1      		 OFF Below 1 Ω
      5-4
      3-1      		 DOWN Below 1 Ω
    3. Reinstall the power window regulator switch assembly.

    NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)

    OK: GO TO NEXT STEP

  3. CHECK HARNESS AND CONNECTOR (SWITCH (PASSENGER SIDE) - MOTOR (PASSENGER SIDE))
    1. Disconnect the F1 power window regulator switch assembly connector.

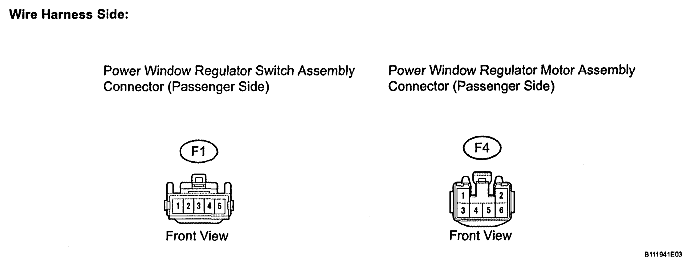

      Fig 3: Identifying Power Window Regulator Switch Connectors (Wire Harness Side)
      G04833768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the F4 power window regulator motor assembly connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      SWITCH (PASSENGER SIDE) - MOTOR (PASSENGER SIDE) RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      F1-1 - F4-1 Below 1 Ω
      F1-4 - F4-2 Below 1 Ω
      F1-1 or F4-1 - Body ground 10 kΩ or higher
      F1-4 or F4-2 - Body ground 10 kΩ or higher
    4. Reconnect the F1 power window regulator switch assembly connector.
    5. Reconnect the F4 power window regulator motor assembly connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE)
    1. Remove the power window regulator motor assembly.
    2. Apply battery voltage to connector terminals 1 and 2.
      NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
    3. Check that the motor gear rotates smoothly as follows.

      OK

      POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE) INSPECTION

      Measurement Condition Specified Condition
      Battery positive (+) --> 1
      Battery negative (-) --> 2      		 Motor gear rotates clockwise
      Battery positive (+) --> 2
      Battery negative (-) --> 1      		 Motor gear rotates counterclockwise
      Fig 4: Inspecting Power Window Regulator Motor Assembly (Passenger Side)
      G04833769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reinstall the power window regulator motor assembly.

    NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE)

    OK: GO TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (MASTER SWITCH - SWITCH (PASSENGER SIDE))
    1. Disconnect the G1 power window regulator master switch assembly connector.

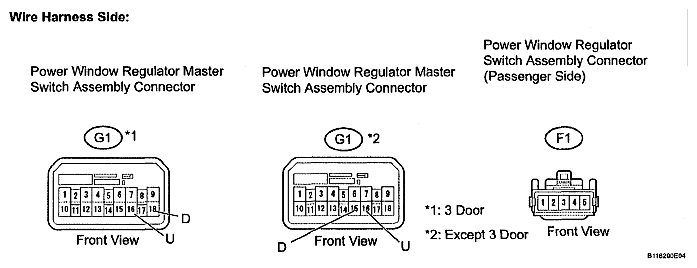

      Fig 5: Identifying Power Window Regulator Master Switch Connectors (Wire Harness Side)
      G04833770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the F1 power window regulator switch assembly connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance:

      3 Door

      MASTER SWITCH - SWITCH (PASSENGER SIDE) SPECIFICATION (3 DOOR)

      Tester Connection Specified Condition
      G1-16 (U) - F1-5 Below 1 Ω
      G1-18 (D) - F1-2 Below 1 Ω
      G1-16 (U) or F1-5 - Body ground 10 kΩ or higher
      G1-18 (D) or F1-2 - Body ground 10 kΩ or higher

      Except 3 door

      MASTER SWITCH - SWITCH (PASSENGER SIDE) SPECIFICATION (EXCEPT 3 DOOR) SPECIFICATION

      Tester Connection Specified Condition
      G1-16 (U) - F1-5 Below 1 Ω
      G1-15 (D) - F1-2 Below 1 Ω
      G1-16 (U) or F1-5 - Body ground 10 kΩ or higher
      G1-15 (D) or F1-2 - Body ground 10 kΩ or higher
    4. Reconnect the G1 power window regulator master switch assembly connector.
    5. Reconnect the F1 power window regulator switch assembly connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  6. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (FRONT PASSENGER SWITCH)
    1. 3 Door:

      Inspect the front passenger switch.

      1. Remove the power window regulator master switch.
      2. Measure the resistance of the switch when the switch is operated.

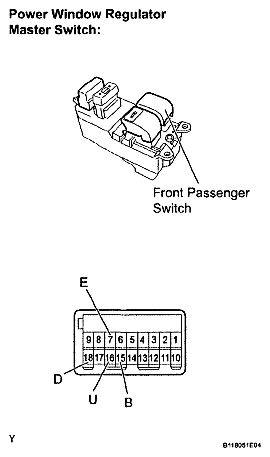

        Fig 6: Identifying Power Window Regulator Master Switch Connectors
        G04833771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard resistance

        POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (FRONT PASSENGER SWITCH) (3 DOOR) SPECIFICATION

        Window Lock Switch Condition Power Window Switch Condition Tester Connection Specified Condition
        OFF UP 7 (E) - 18 (D)
        16 (U) - 15 (B)        		 Below 1 Ω
        OFF OFF 7 (E) - 16 (U)
        7 (E) - 18 (D)        		 Below 1 Ω
        OFF DOWN 7 (E) - 16 (U)
        15 (B) - 18 (D)        		 Below 1 Ω
        ON UP 7 (E) - 18 (D) 10 kΩ or higher
        16 (U) - 15 (B) Below 1 Ω
        ON OFF 16 (U) - 18 (D) Below 1 Ω
        ON DOWN 7 (E) - 16 (U) 10 kΩ or higher
        15 (B) - 18 (D) Below 1 Ω
      3. Reinstall the power window master switch.
    2. Except 3 door:

      Inspect the front passenger switch.

      1. Remove the power window regulator master switch.
      2. Measure the resistance of the switch when the switch is operated.

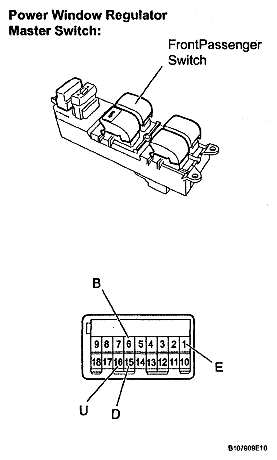

        Fig 7: Identifying Power Window Regulator Master Switch Connectors
        G04833772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard resistance

        POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (FRONT PASSENGER SWITCH) (EXCEPT 3 DOOR) SPECIFICATION

        Window Lock Switch Condition Power Window Switch Condition Tester Connection Specified Condition
        OFF UP 1 (E) - 15 (D)
        6 (B) - 16 (U)        		 Below 1 Ω
        OFF OFF 1 (E) - 16 (U)
        1 (E) - 15 (D)        		 Below 1 Ω
        OFF DOWN 1 (E) - 16 (U)
        6 (B) - 15 (D)        		 Below 1 Ω
        ON UP 1 (E) - 15 (D) 10 kΩ or higher
        6 (B) - 16 (U) Below 1 Ω
        ON OFF 15 (D) - 16 (U) Below 1 Ω
        ON DOWN 1 (E) - 16 (U) 10 kΩ or higher
        6 (B) - 15 (D) Below 1 Ω
      3. Reinstall the power window regulator master switch.

    NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

    OK: GO TO  POWER WINDOWS DO NOT OPERATE AT ALL
