Inspection Procedure

WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OPERATION OF SPEEDOMETER
    1. Drive the vehicle and check if the function of the speedometer on the combination meter is normal.

      OK:

      Actual vehicle speed and the speed indicated on the speedometer are the same.

      HINT:

      The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

    NG:  GO TO METER / GAUGE SYSTEM

    OK: Go to next step

  2. CHECK STEREO COMPONENT AMPLIFIER
    1. Disconnect the S15 amplifier connector.
    2. Measure the voltage.
      1. Jack up either one of the drive wheels.
      2. Move the shift lever to the neutral position.
      3. Turn the power switch ON (IG).
        Fig 1: Identifying S15 Amplifier Connector
        G05189889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Measure the voltage between terminal 11 (SPD) of the stereo component amplifier and body ground when the drive wheels are turned slowly.

        OK:

        Voltage pulses as shown in the illustration.

    OK: REPLACE STEREO COMPONENT AMPLIFIER

    Fig 2: Voltage Pulses For SPD
    G04967013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to next step

  3. CHECK WIRE HARNESS (COMBINATION METER - STEREO COMPONENT AMPLIFIER)
    1. Disconnect the S15 amplifier connector.
    2. Disconnect the C10 meter connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      STANDARD RESISTANCE

      Tester Connection Specified Condition
      S15-11 (SPD) - C10-13 Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

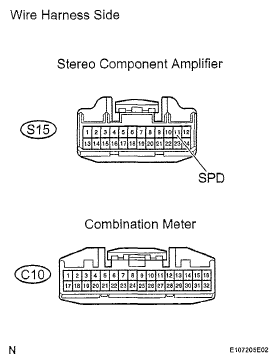

    Fig 3: Identifying C10 Meter Connector
    G05189891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  4. CHECK WIRE HARNESS (STEREO COMPONENT AMPLIFIER - BODY GROUND)
    1. Disconnect the S15 amplifier connector.
    2. Measure the resistance of the wire harness side connector.

      Standard resistance

      STANDARD RESISTANCE

      Tester Connection Specified Condition
      S15-11 (SPD) - Body ground 10 kΩ or higher

      HINT:

      If the resistance between terminal 11 (SPD) and body ground is less than 10 kΩ, there may be a short in a wire harness, connector, or an ECU that is connected to the SPD signal wire.

      Fig 4: Identifying S15 Amplifier Connector
      G05189892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE STEREO COMPONENT AMPLIFIER
