Reverse Signal Circuit: Wiring Diagram

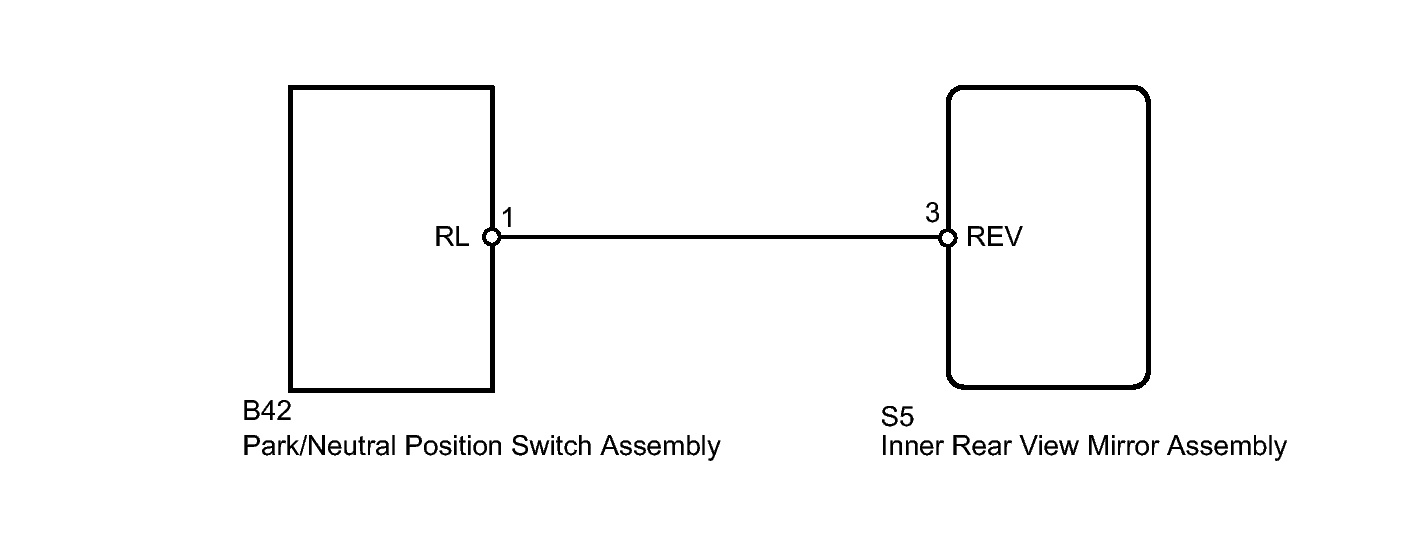

Fig 1: Identifying Reverse Signal Circuit-Wiring Diagram
GTY226025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
