System Description

NAVIGATION RECEIVER ASSEMBLY OUTLINE

Conventionally, 2 separate devices, a radio and display and a navigation ECU are used. This model combines these devices into a signal unit.

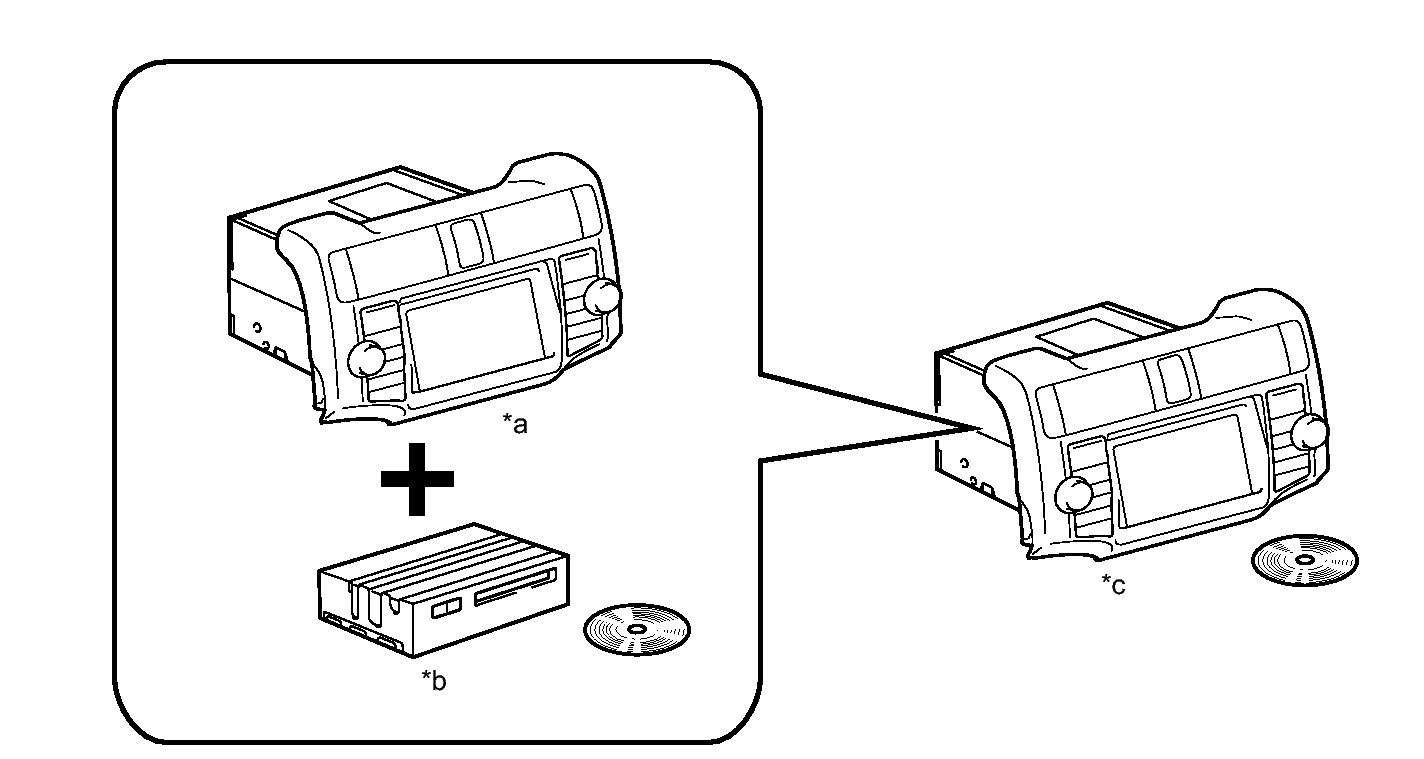

Fig 1: Identifying Navigation Receiver Assembly Outline

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Radio and Display	*b	Navigation ECU
*c	Navigation Receiver Assembly	-	-

NAVIGATION SYSTEM OUTLINE

Vehicle position tracking methods

It is essential that the navigation system correctly tracks the current vehicle position and displays it on the map. There are 2 methods to track the current vehicle position: autonomous (dead reckoning) and GPS* (satellite) navigation. Both navigation methods are used in conjunction with each other.

HINT:

*: GPS (Global Positioning System)

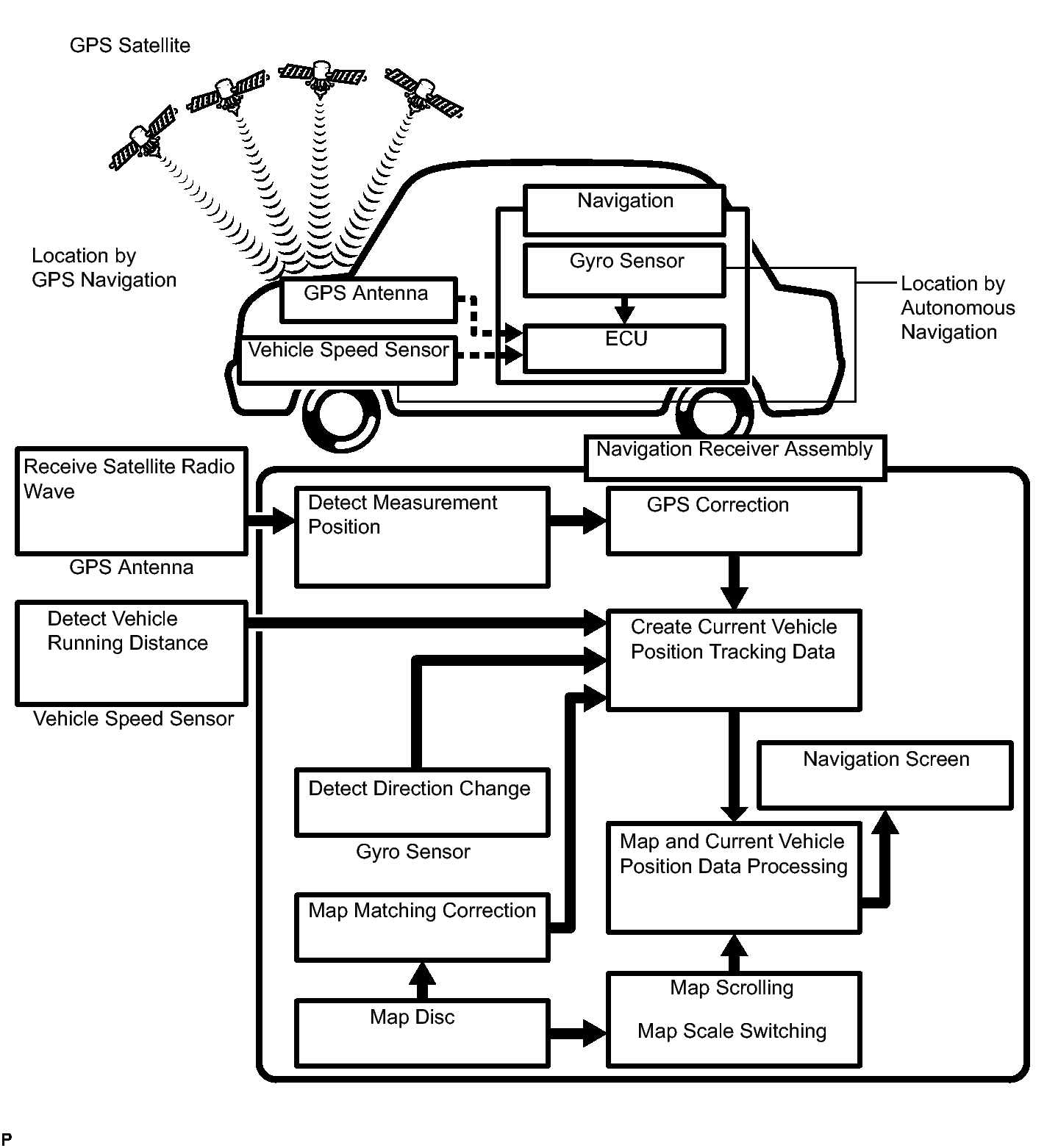

Fig 2: Identifying Navigation System Outline

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Operation	Description
Vehicle Position Calculation	The navigation receiver assembly calculates the current vehicle position (direction and current position) using the direction deviation signal from the gyro sensor and the running distance signal from the vehicle speed sensor and creates the driving route.
Map Display Processing	The navigation receiver assembly processes the vehicle position data, vehicle running track and map data from the map disc.
Map Matching	The map data from the map disc is compared to the vehicle position and running track data. Then, the vehicle position is matched with the nearest road.
GPS Correction	The vehicle position is matched to the position measured using GPS. Then, the GPS measurement position data is compared with the vehicle position and running track data. If the position is widely different, the GPS measurement position is used.
Distance Correction	The running distance signal from the vehicle speed sensor includes error caused by tire wear and slippage between the tires and road surface. Distance correction is performed to account for this. The navigation receiver assembly automatically offsets the running distance signal to make up for the difference between it and the distance data of the map. The offset is automatically updated.

HINT:

The combination of autonomous and GPS navigation makes it possible to display the vehicle position even when the vehicle is in places where the GPS radio wave cannot be received. When only autonomous navigation is used, the mapping accuracy may slightly decrease.

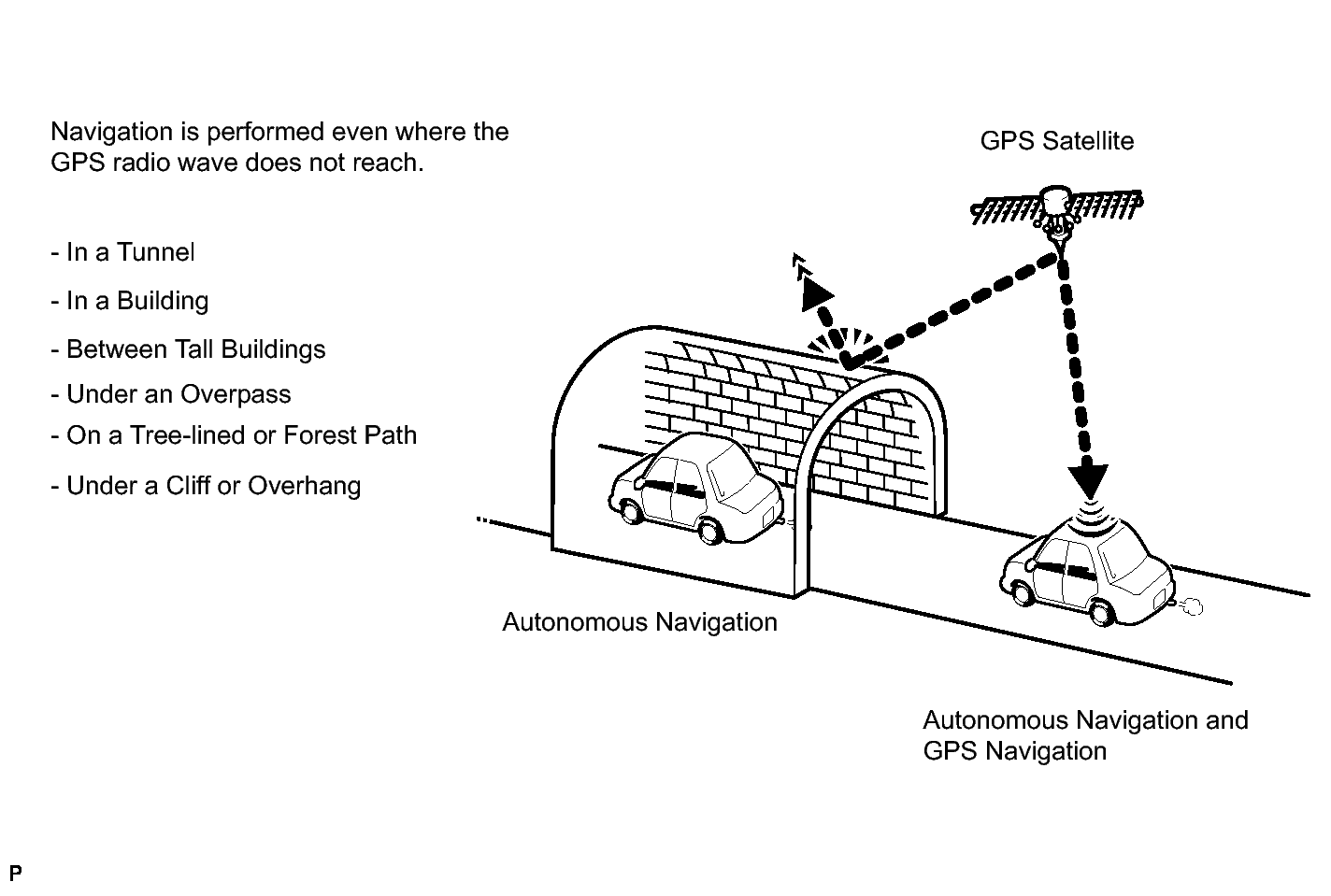

Fig 3: Identifying Autonomous And Gps Navigation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Autonomous navigation
This method determines the relative vehicle position based on the running track determined by the gyro and vehicle speed sensors.
1. Gyro sensor
  Calculates the direction by detecting angular velocity. It is located in the navigation receiver assembly.
2. Vehicle speed sensor
  Used to calculate the vehicle running distance.

GPS navigation (satellite navigation)

This method detects the absolute vehicle position using radio waves from a GPS satellite*.

HINT:

*: GPS satellites were launched by the U.S. Department of Defense for military purposes.

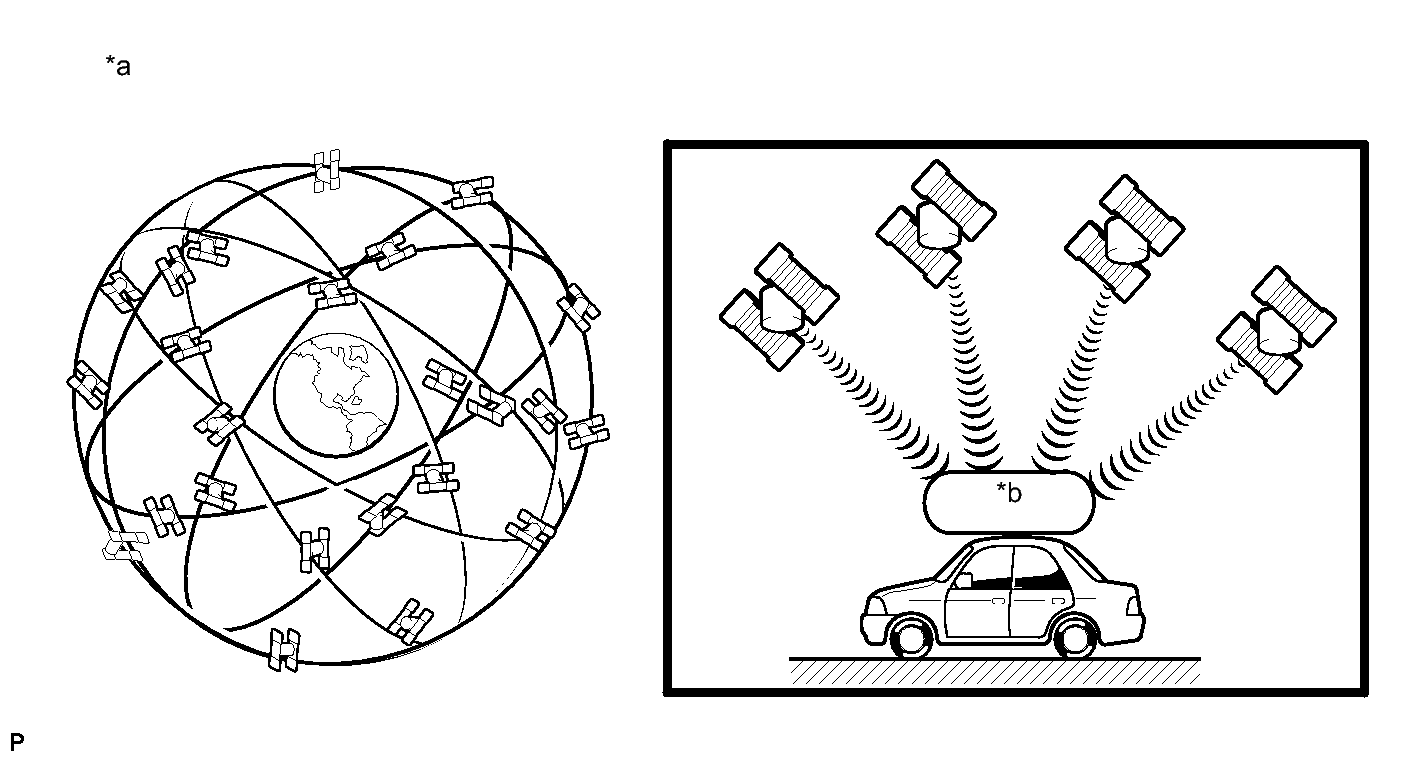

Fig 4: GPS Navigation (Satellite Navigation)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Current longitude/latitude/altitude is determined using the radio wave arrival time from 4 satellites.

GPS

Number of Satellites	Measurement	Description
2 or less	Measurement is impossible	The vehicle position cannot be obtained because the number of satellites is insufficient.
3	2-dimensional measurement is possible	The vehicle position is obtained based on the current longitude and latitude (this is less precise than 3-dimensional measurement).
4	3-dimensional measurement is possible	The vehicle position is obtained based on the current longitude, latitude and altitude.

Map matching
The current driving route is calculated by autonomous navigation (according to the gyro sensor and vehicle speed sensor) and GPS navigation. This information is then compared with possible road shapes from the map data on the map disc and the vehicle position is set onto the most appropriate road.

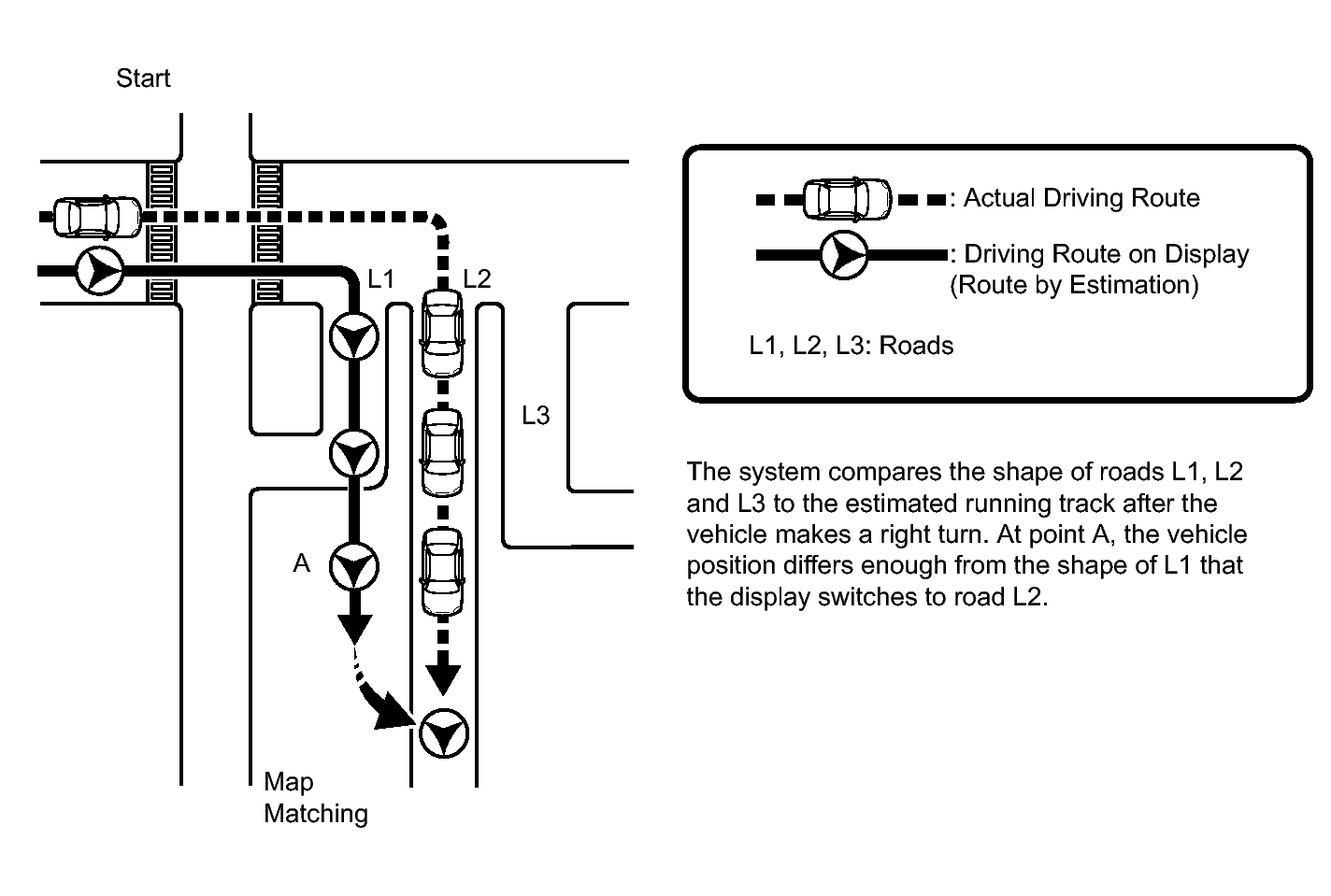

Fig 5: Identifying Map Matching
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TOUCH SCREEN OUTLINE
1. Touch switches are touch-sensitive (interactive) switches operated by touching the screen. When a switch is pressed, the outer glass bends to contact the inner glass at the pressed position. By doing this, the voltage ratio is measured and the pressed position is detected.

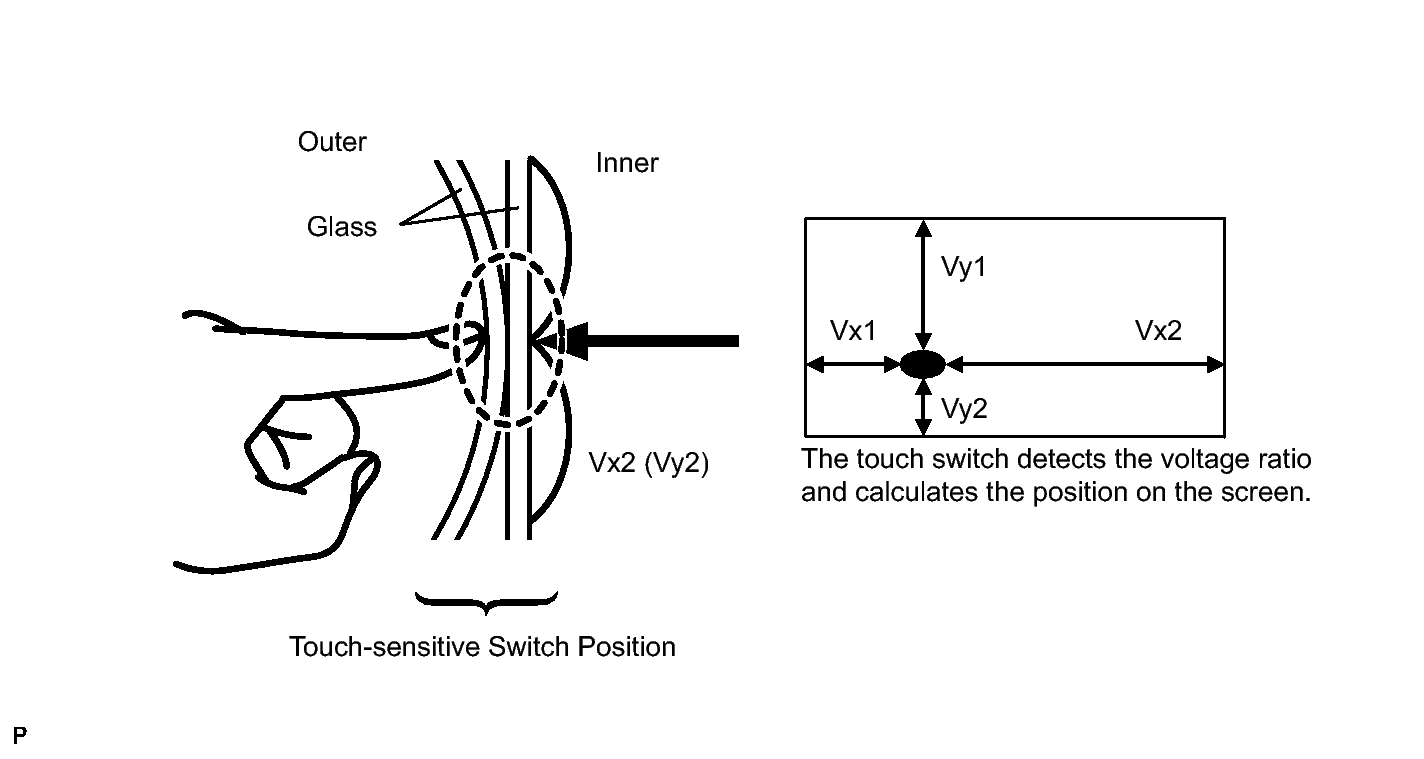

  Fig 6: Identifying Touch Screen Outline
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DVD (DIGITAL VERSATILE DISC) PLAYER OUTLINE (for Navigation Map)
1. The navigation receiver assembly uses a laser pickup to read the digital signals recorded on a DVD.
  WARNING:
  Because the navigation system uses an invisible laser beam, do not look directly at the laser pickup. Be sure to only operate the navigation system as instructed.
  NOTE:
  - Do not disassemble any part of the navigation receiver assembly.
  - Do not apply oil to the navigation receiver assembly.
  - Do not insert anything but a DVD into the navigation receiver assembly.
CD (COMPACT DISC) PLAYER OUTLINE
1. A compact disc player uses a laser pickup to read digital signals recorded on a compact disc (CD). By converting the digital signals to analog, it can play music and other content.
  WARNING:
  Do not look directly at the laser pickup because the CD player uses an invisible laser beam. Be sure to operate the player only as instructed.
  NOTE:
  - Do not disassemble any part of the CD player.
  - Do not apply oil to the CD player.
  - Do not insert anything but a CD into the CD player.
2. Usable discs
  1. This player can play only audio CDs, CD-Rs (CD-Recordable), and CD-RWs (CD-ReWritable) that have any of the following marks:

    Fig 7: Identifying Disc Player Outline
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Precautions for use of discs
  NOTE:
  - Copy-protected CDs cannot be played.
  - CD-Rs and CD-RWs may not be able to be played depending on the recording conditions or characteristics of the discs, or due to damage, dirt or deterioration caused by leaving the discs in the cabin for a long time.
  - Unfinalized CD-Rs and CD-RWs cannot be played.
  - DualDiscs that mate DVD recorded material on one side with CD digital audio material on the other cannot be played.
  - Keep the discs away from dirt. Be careful not to damage the discs or leave fingerprints on them.
  - Hold discs by the outer edge and center hole with the label side up.
  - Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.
  - If discs have adhesive tape, stickers, CD labels or any traces of such labels attached, the discs may not be able to be ejected or player malfunctions may result.
  - Keep the discs away from direct sunlight (exposure to direct sunlight may cause deformation of the disc, making the disc unusable).
  - Do not use odd-shaped CDs because these may cause player malfunctions.
  - Do not use discs whose recorded portion is transparent or translucent because they may be unable to be properly inserted, ejected or played.
  HINT:
  - When it is cold or it is raining, if the windows mist up, mist and condensation may form in the player. In such cases, the CD may skip or stop in the middle of play. Ventilate or dehumidify the cabin for a while before using the player.
  - The CD may skip if the player experiences strong vibrations when the vehicle is driven on rough roads or similar uneven surfaces.
4. Cleaning

  Fig 8: Cleaning Disc Surface With Soft Dry Cloth
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.
  1. If dirt is on the disc surface, wipe it clean with a soft dry cloth, such as an eyeglass cleaner for plastic lenses, from the inside to the outside in a radial direction.
    NOTE:
    Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.

    The use of solvents, such as record spray, antistatic agents, alcohol, benzine and thinner or a chemical cloth may cause damage to the disc, making the disc unusable.
DVD (DIGITAL VERSATILE DISC) PLAYER OUTLINE
1. The DVD player can only play DVD videos that have any of the following marks:

  Fig 9: Identifying Dvd (Digital Versatile Disc) Player Outline
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Precaution for use of discs
    NOTE:
    PAL or SECAM color television standard discs cannot be played (only NTSC discs can be played).

    Keep the discs away from dirt. Be careful not to damage the discs or leave fingerprints on them.

    Hold discs by the outer edge and center hole with the label side up.

    Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.

    Do not use odd-shaped CDs because these may cause player malfunctions.

    Do not use discs whose recording portion is transparent or translucent because they may not be able to be inserted, ejected or played normally.

    DualDiscs that combine DVD recorded material on one side with CD digital audio material on the other cannot be played.
2. Cleaning

  Fig 10: Cleaning Disc Surface With Soft Dry Cloth
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.
  1. If dirt is on the disc surface, wipe it clean with a soft dry cloth, such as an eyeglass cleaner for plastic lenses, from the inside to the outside in a radial direction.
    NOTE:
    Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.

    The use of solvents, such as record spray, antistatic agents, alcohol, benzine and thinner, or a chemical cloth may cause damage to the disc, making the disc unusable.

MP3/WMA OUTLINE

Playable MP3 file standards

Compatible Standard	MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
Compatible sampling frequency	MPEG1 LAYER3: 44.1, 48 (kHz) MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
Compatible bit rate	MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps) MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps) Compatible with VBR
Compatible channel mode	Stereo, joint stereo, dual channel, monaural

Playable WMA file standards

Compatible Standard	WMA Ver. 7, 8 and 9
Compatible sampling frequency	44.1, 48 (kHz)
Compatible bit rate	Ver. 7, 8: CBR48, 64, 80, 96, 128, 160, 192 (kbps) Ver. 9: CBR48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps) Compatible with playback of channel 2 only

ID3 tag and WMA tag
1. Additional textual information called an ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.
  HINT:

  This player is compatible with the ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3 (the number of characters complies with ID3 Ver. 1.0 and 1.1).
2. Additional textual information called a WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.
Usable media
1. Only CD-ROMs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) can be used to play MP3/WMA files.
  NOTE:
  - CD-Rs and CD-RWs are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs do not play.
  - If there are fingerprints or scratches on a disc, the disc may not play or the CD may skip.
  - Some CD-Rs and CD-RWs may deteriorate if they are left in the cabin for a long time.
  - Keep CD-Rs and CD-RWs in an opaque case.

Usable media format

Disc format	CD-ROM Mode 1, CD-ROM XA Mode 2 Form 1
File format	ISO 9660 Level 1 and Level 2 (Joliet, Romeo)

HINT:

As for MP3/WMA files written in any unlisted format, the contents of the files may not be played normally or the file names or folder names may not be displayed correctly.
This player is compatible with multi-session discs and can play CD-Rs and CD-RWs on which MP3/WMA files are added. However, only the first session can be played.
Discs whose first session includes both music data and MP3 or WMA format data cannot be played.

Standards and restrictions

Maximum number of directory levels	8 levels
Maximum number of characters for folder name/file name	32 characters
Maximum number of folders	192 (Including empty folders, root folders and folders that do not contain MP3/WMA files)
Maximum number of files on disc	255 (Including non-MP3/WMA files)

File names
1. Only files with an extension of ".mp3" or ".wma" can be recognized and played as MP3 or WMA files.
2. Save MP3 or WMA files with an extension of ".mp3" or ".wma".
  NOTE:
  If saving non-MP3 or non-WMA files with an extension of ".mp3" or ".wma", those files are wrongly recognized as MP3 or WMA files and played. A loud noise may occur and damage to the speakers may result.

"BLUETOOTH" OUTLINE

Fig 11: Identifying "Bluetooth" Receiver Antenna Built-in

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

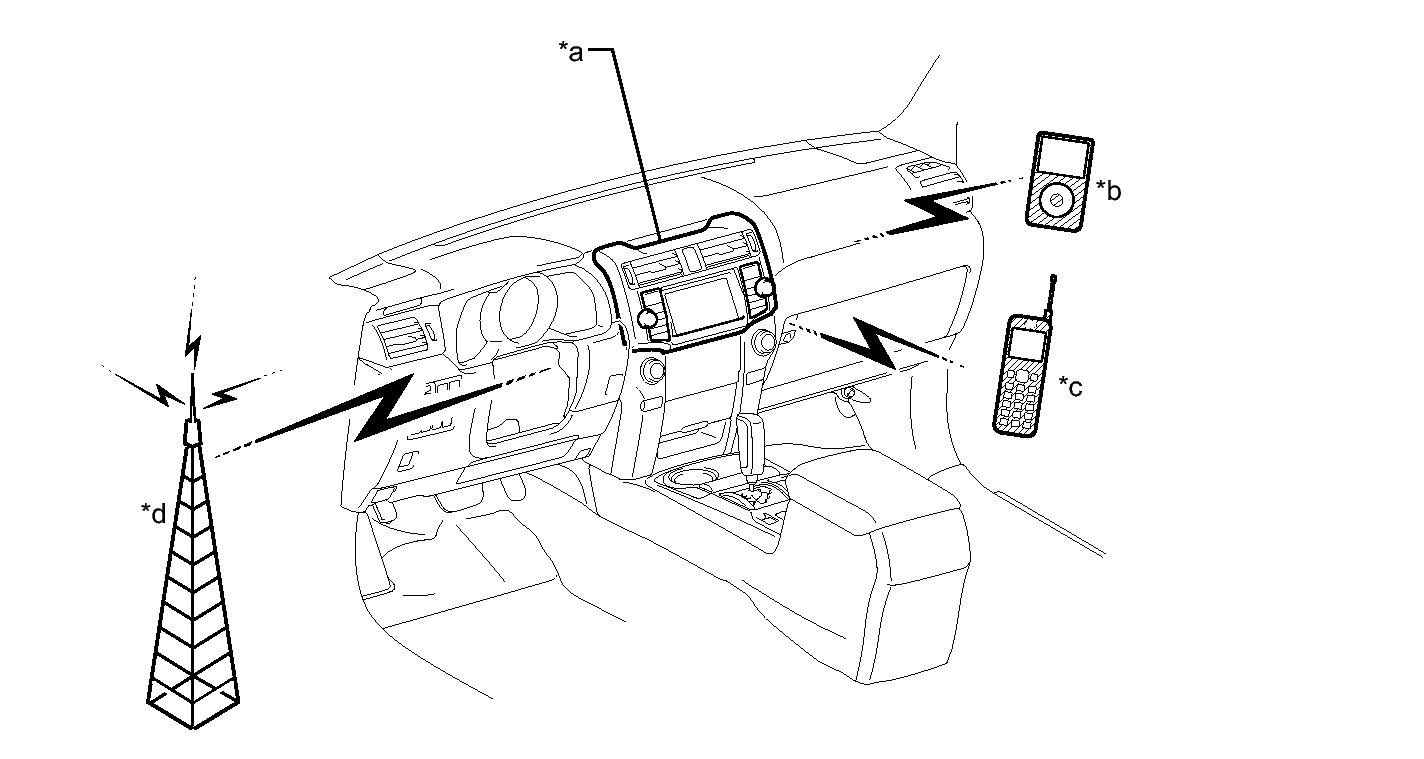

*a	Navigation Receiver Assembly ("Bluetooth" Receiver Antenna Built-in)	*b	"Bluetooth" Compatible Portable Audio Player
*c	"Bluetooth" Compatible Cellular Phone	*d	Cellular Tower

"Bluetooth" is a trademark owned by Bluetooth SIG. Inc.
"Bluetooth" is a new wireless connection technology that uses the 2.4 GHz frequency band.
HINT:

The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity and antenna capacity.
Handsfree function
1. The "Bluetooth" function built into the navigation receiver assembly and a "Bluetooth" compatible cellular phone* can be connected using a "Bluetooth" wireless connection. This enables use of the handsfree function on the cellular phone even though the phone may be in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.
  *: Some versions of "Bluetooth" compatible cellular phones may not function.

"Bluetooth" audio function

The "Bluetooth" function built into the navigation receiver assembly and a "Bluetooth" compatible portable audio player* can be connected using a "Bluetooth" wireless connection. This enables files stored in the portable audio player to be heard from the vehicle speakers. In addition, operations such as play/stop can be performed directly from the navigation receiver assembly.
*: Some versions of "Bluetooth" compatible audio players may not be able to operate using the "Bluetooth" function, or music may play, but functions available using the navigation receiver assembly may be limited.

Compatible "Bluetooth" audio devices

"Bluetooth" specifications	Ver. 1.1 or higher (Recommended: Ver. 2.0 + EDR or higher)
Following profiles	A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.3 or higher recommended)
Maximum number of audio devices that can be registered	2

HINT:

The amount of remaining battery charge displayed on the navigation receiver assembly may be different from that of the portable player.

RADIO DESCRIPTION

Radio frequency band
1. Radio broadcasts use the radio frequency bands shown in the table below.

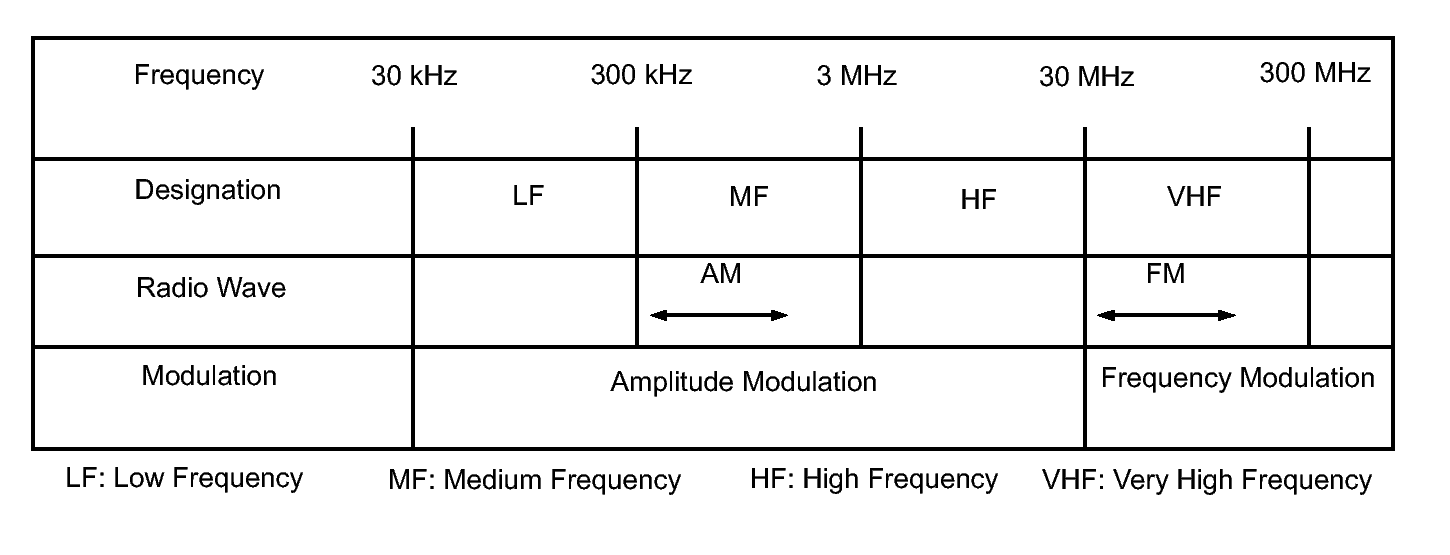

  Fig 12: Identifying Radio Frequency Band
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Service area

Fig 13: Identifying Service Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo broadcast cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.

TEXT IN ILLUSTRATION

*a	FM (Stereo)
*b	FM (Monaural)
*c	AM

Radio reception problems

HINT:

In addition to static, other problems such as "phasing", "multipath", and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.

Phasing

AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.

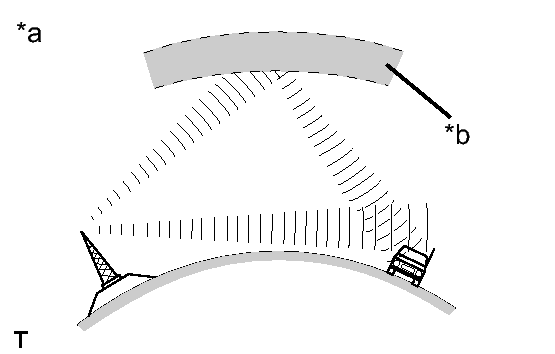

Fig 14: Identifying Phasing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Phasing
*b	Ionosphere

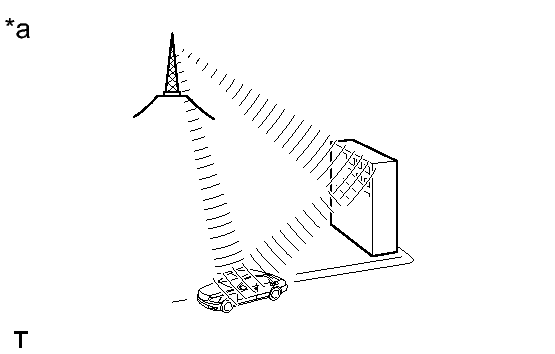

Multipath

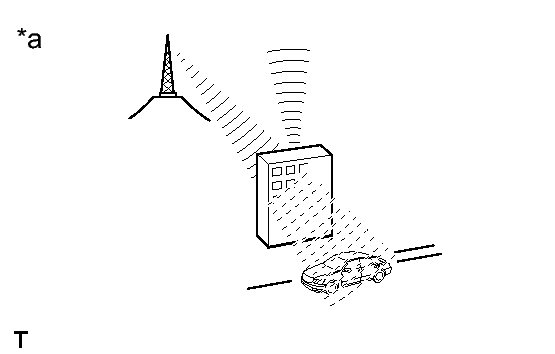

Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.

Fig 15: Identifying Multipath

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Multipath

Fade out

Fade out is caused by objects (buildings, mountains and other such large obstacles) that deflect away part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are much more difficult to deflect.

Fig 16: Identifying Face out

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Fade Out

Noise problem

Technicians must have a clear understanding about each customer noise complaint. Use the following table to diagnose noise problems.

Radio Frequency	Noise Occurrence Condition	Presumable Cause
AM	Noise occurs in specified area	Foreign noise
AM	Noise occurs when listening to intermittent broadcast	Identical program transmitted from multiple towers can cause noise where signals overlap
AM	Noise occurs only at night	Beats from distant broadcast
FM	Noise occurs while driving in specified area	Multipath or phasing noise resulting from change in FM frequency

HINT:

If the noise does not match the examples above, refer to the descriptions about phasing and multipath.

RBDS FUNCTION OUTLINE (BROADCAST IN NORTH AMERICA ONLY)
The Radio Broadcast Data System (RBDS) is broadcast through conventional FM radio broadcasts. Information such as song names, traffic information, broadcast station names, etc. can be received.
SDARS SYSTEM FUNCTION OUTLINE
Satellite Digital Audio Radio Service (SDARS) is a satellite digital radio broadcast provided by Sirius XM Radio Inc. The broadcast (pay-type) is performed through satellites and terrestrial repeater networks. Several unique channels are available, and even if a vehicle changes locations, the same information can be received without breaks. Information such as song names, broadcast station names, etc. can be received. Also, traffic information can be received and displayed on the navigation screen.

NOTE:
To receive audio-visual pay-type broadcasts, the customer must enter into a pay-type contract with XM Satellite Radio Inc. After entering into a contract, registration of the XM Radio ID is required. Also, if parts are replaced, the XM Radio ID must be reregistered.

USB AUDIO SYSTEM FUNCTION OUTLINE

The stereo jack adapter is equipped with a USB terminal. Connecting a USB device or "iPod" to the stereo jack adapter allows music files to be played. Not only is it possible to play music from a USB device with audio functions, it is also possible to play MP3 or WMA music files that are stored on a USB device. In addition, "iPod" control software is installed, allowing file selection from playlists and operation using shuffle mode.
HINT:
- Visual content of an "iPod" cannot be played.
- Operation through the controls of a USB device or "iPod" cannot be performed while the USB device or "i Pod" is connected.

USB audio system compatible mode

USB device

The following device formats can be used:

Compatible USB device formats

USB communication format: USB 2.0 FS (12 Mbps)
File format: FAT16/32 (Windows)
Class: Mass storage class

USB devices that do not comply with the formats listed above may not play correctly, and their file names and folder names may not be displayed correctly.

Standards and limitations are as follows:

Maximum number of directory levels: 8
Maximum number of folders in the device: 999 (including the root folder)
Maximum number of files in the device: 65025
Maximum number of files per folder: 255

"iPod"

"iPod" is a trademark of Apple Inc., registered in the U.S. and other countries.

SUPPORTED "IPOD" MODELS AND FIRMWARE VERSIONS

Supported "iPod" Model	Supported Firmware Version
"iPod" 5G	Ver. 1.2.0 or higher
"iPod nano" 1G	Ver. 1.2.0 or higher
"iPod nano" 2G	Ver. 1.1.2 or higher
"iPod nano" 3G	Ver. 1.0.0 or higher
"iPod touch"	Ver. 1.1 or higher
"iPod classic"	Ver. 1.0.0 or higher

UNSUPPORTED "IPOD" MODELS

Unsupported Models	"iPod shuffle"
	"iPhone"
	"iPod" 1G, 2G, 3G, 4G
	"iPod mini"

HINT:

Depending on the generation of "iPod" used, response to commands from the vehicle may be delayed.

Standards and limitations are as follows:

Maximum number of lists in the device: 9999
Maximum number of songs in the device: No limitation
Maximum number of songs per list: No limitation

AUTOMATIC SOUND LEVELIZER (ASL) FUNCTION OUTLINE
1. The ASL function automatically adjusts the sound volume in order to enable clear audio quality even when vehicle noise increases (as vehicle speed increases, the volume is turned up, etc.).
  Vehicle speed signals are received from the combination meter assembly and used for ASL control.
COMMUNICATION SYSTEM
1. AVC-LAN OUTLINE

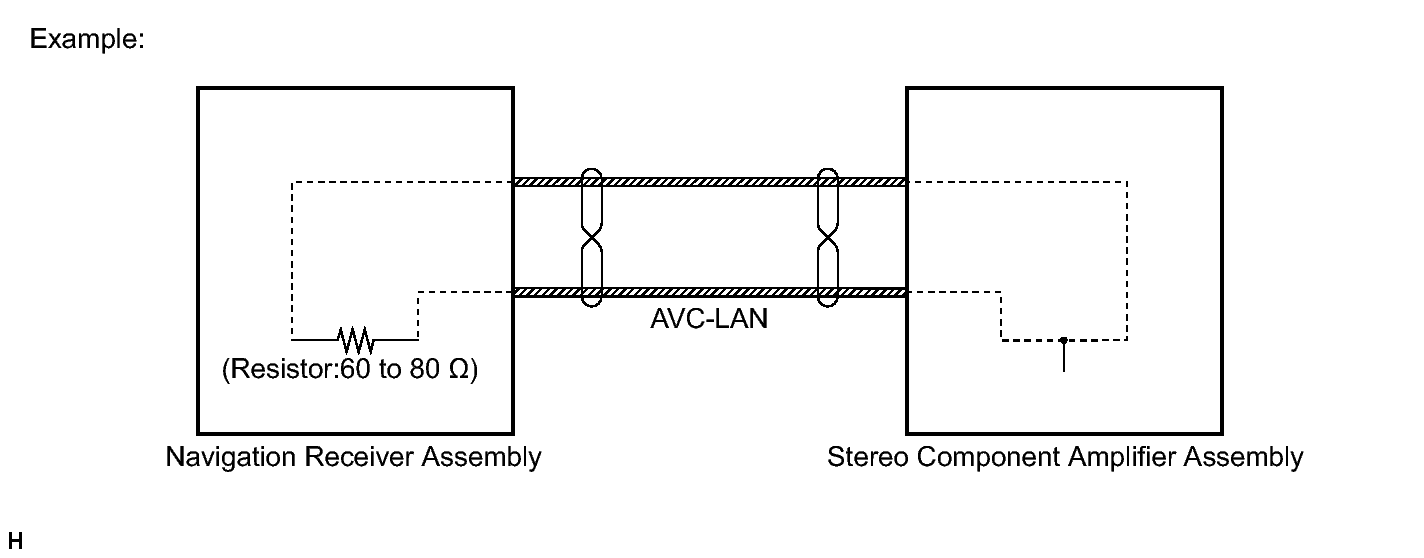

  Fig 17: Identifying AVC-LAN OUTLINE
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Components of the navigation system communicate with each other via the AVC-LAN.
  2. The AVC-LAN uses a twisted pair of wires for its communication lines.
  3. The master unit of the AVC-LAN is the navigation receiver assembly.
    HINT:
    - The navigation receiver assembly has enough resistance (60 to 80 Ω) necessary for communication.
    - If a short or open circuit occurs in the AVC-LAN circuit, communication is interrupted and the system does not operate normally.
2. AVC-LAN plus OUTLINE

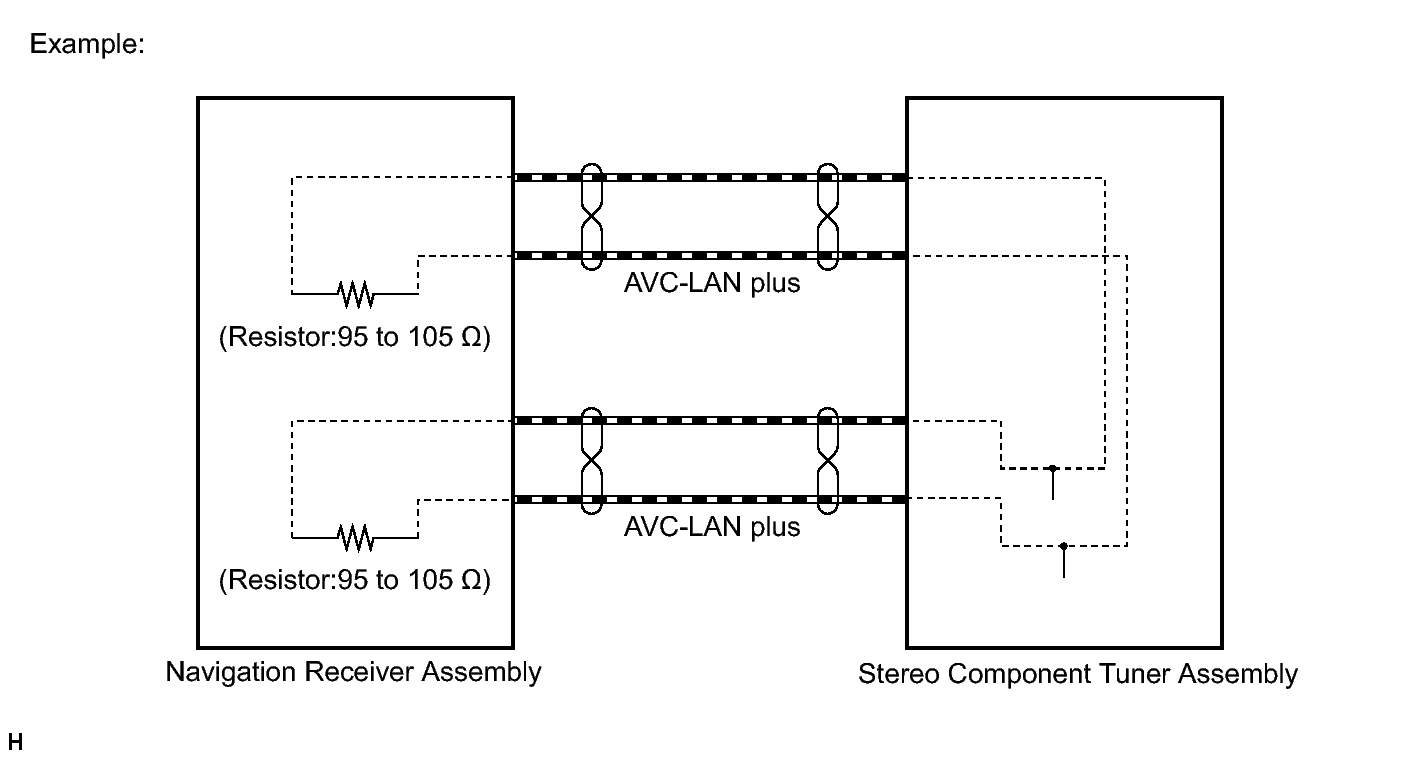

  Fig 18: Identifying AVC-LAN plus OUTLINE
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Navigation system components communicate with each other via the AVC-LAN plus.
  2. The AVC-LAN plus uses two twisted pairs of cables for its communication lines.
  3. The master unit of the AVC-LAN plus is the navigation receiver assembly.
    HINT:
    - The navigation receiver assembly has enough resistance (95 to 105 Ω) necessary for communication.
    - If a short or open circuit occurs in the AVC-LAN plus circuit, communication is interrupted and the system does not operate normally.
DIAGNOSTIC FUNCTION OUTLINE
1. The navigation system has a diagnostic function (the result is indicated on the master unit).

DIAGNOSIS DISPLAY DETAILED DESCRIPTION

HINT:

This service information contains a detailed description of the displays within diagnostic mode.
Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle screen.

Service Menu Screen

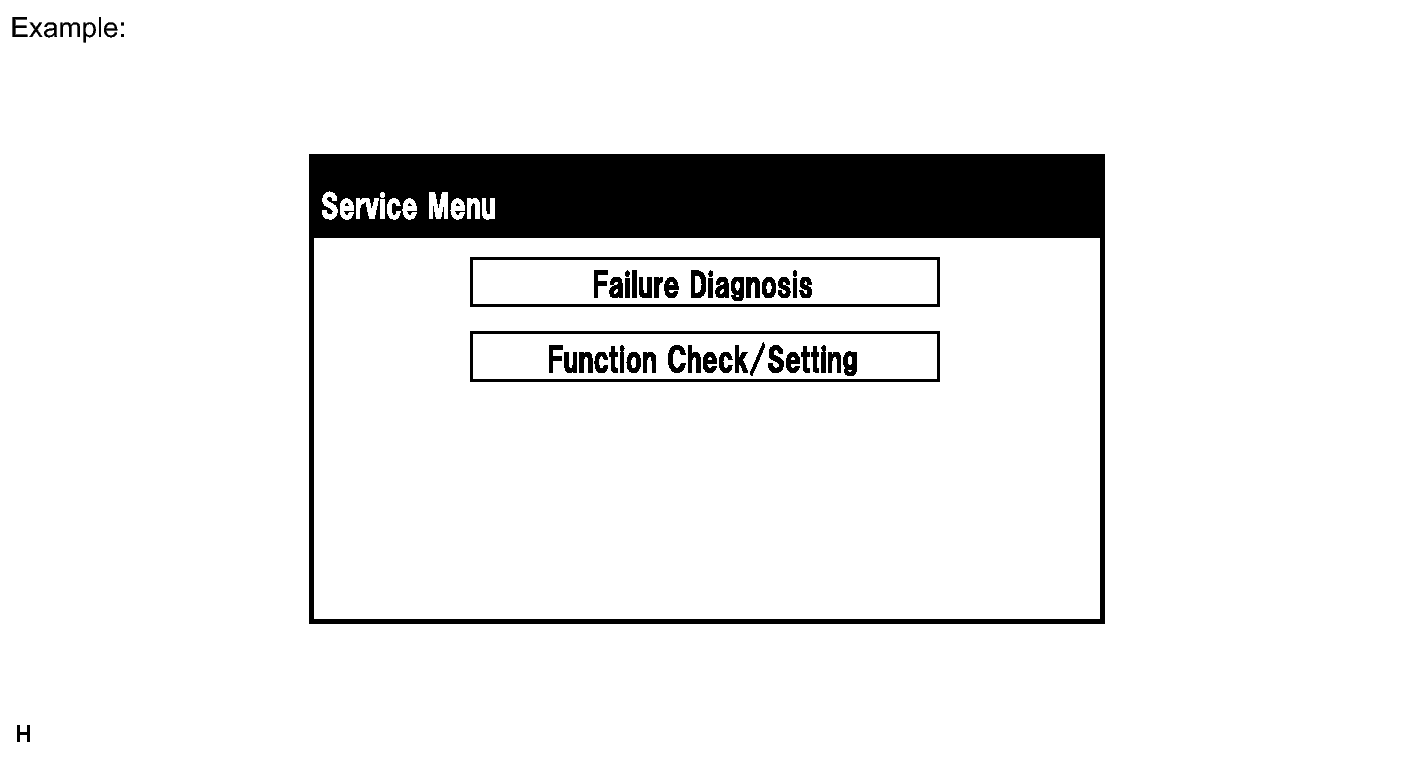

Fig 19: Identifying Service Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Some items may be grayed out or not displayed based on the device settings.

Failure Diagnosis Screen

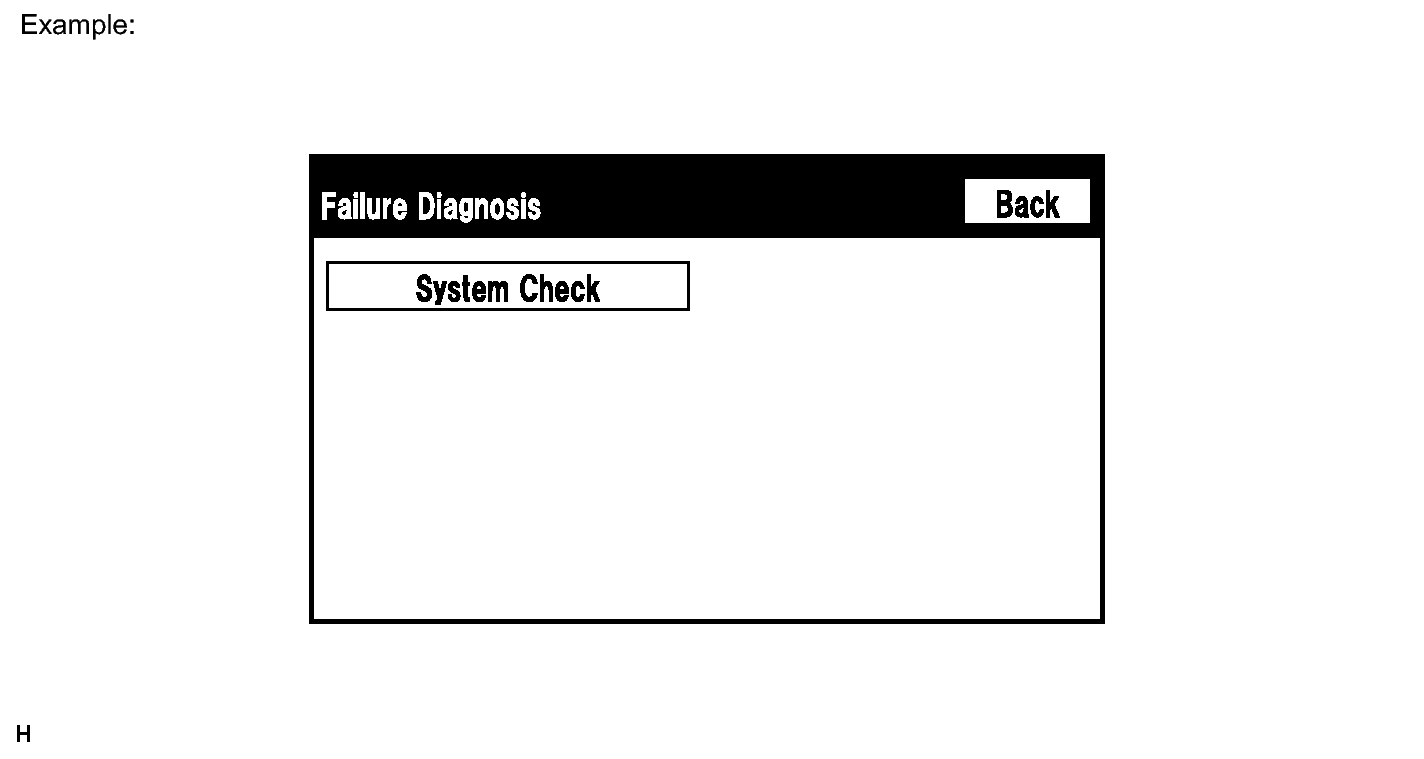

Fig 20: Identifying Failure Diagnosis Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Some items may be grayed out or not displayed based on the device settings.

System Check Mode Screen

Fig 21: Identifying System Check Mode Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1: Device Name List No. 1

HINT:

Device Name List No. 1 displays some of the devices that make up the navigation system.

The names of the components from Device Name List No. 1 are shown in the following table.

Name	Component	Connection Method
AVN	Navigation receiver assembly	-
XM	Stereo component tuner assembly	Communication line for AVC-LAN
USB BOX	Multi-media interface ECU	Communication line for AVC-LAN
DSP-AMP	Stereo component amplifier assembly	Communication line for AVC-LAN

*2: Check Result

HINT:

Result codes for all devices are displayed.

Result	Meaning	Action
OK	Device does not respond with DTC	-
EXCH	Device responds with replace-type DTC	Look up DTC in "Unit Check Mode" and replace the device
CHEK	Device responds with check-type DTC	Look up DTC in "Unit Check Mode"
NCON	Device was previously present, but does not respond in diagnostic mode	- Check power supply wire harness of device - Check AVC-LAN of device
NRES	Device responds in diagnostic mode, but gives no DTC information	- Check power supply wire harness of device - Check AVC-LAN of device

*3: Memory Clear
HINT:
- Present and past DTCs and registered connected device names are cleared.
- Data is cleared by pressing the "Memory CLR" switch for 3 seconds.

*4: Recheck
HINT:
- A system check is performed again after the memory is cleared.
- The Recheck switch dims during a system check.

*5: Device Name List No. 2

HINT:

Device Name List No. 2 displays some of the devices that make up the navigation system.

The names of the components from Device Name List No. 2 are shown in the following table.

Name	Component	Connection Method
XM (Step2)	Stereo component tuner assembly	Communication line for AVC-LAN plus
MIC	Telephone microphone assembly	Vehicle wire harness
AUX	No. 1 stereo jack adapter assembly	Vehicle wire harness

Unit Check Mode Screen

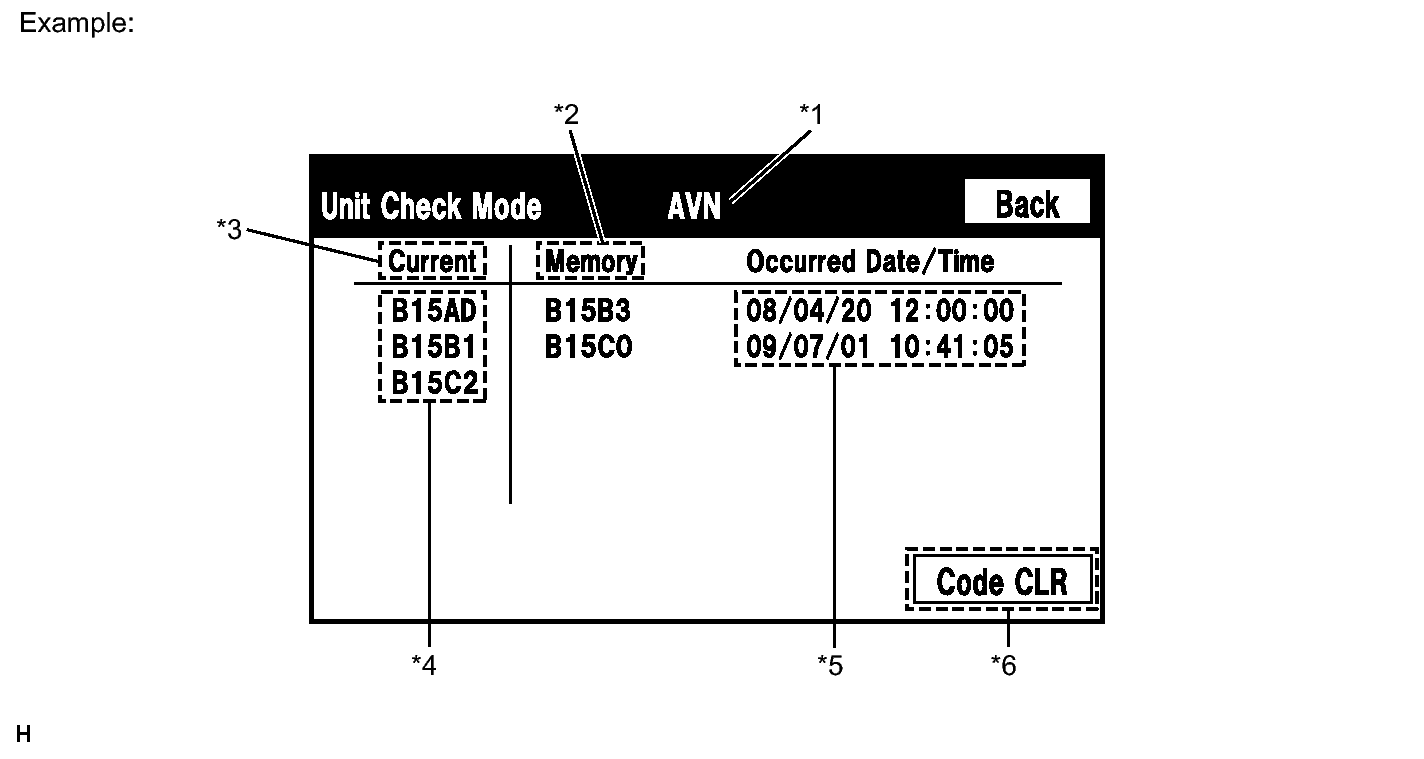

Fig 22: Identifying Unit Check Mode Screen

SCREEN DESCRIPTION

Display	Content
*1: Device name	Target device
*2: Past DTC	Diagnostic memory results and stored DTCs are output
*3: Present DTC	DTCs output in service check are output
*4: DTC	DTC (Diagnostic Trouble Code)
*5: Timestamp	Time and date of past DTCs are displayed (year is displayed in 2-digit format)
*6: Diagnosis clear switch	Pushing this switch for 3 seconds clears diagnostic memory data of target device (responses to diagnostic system check result and displayed data are cleared)

Function Check/Setting Screen

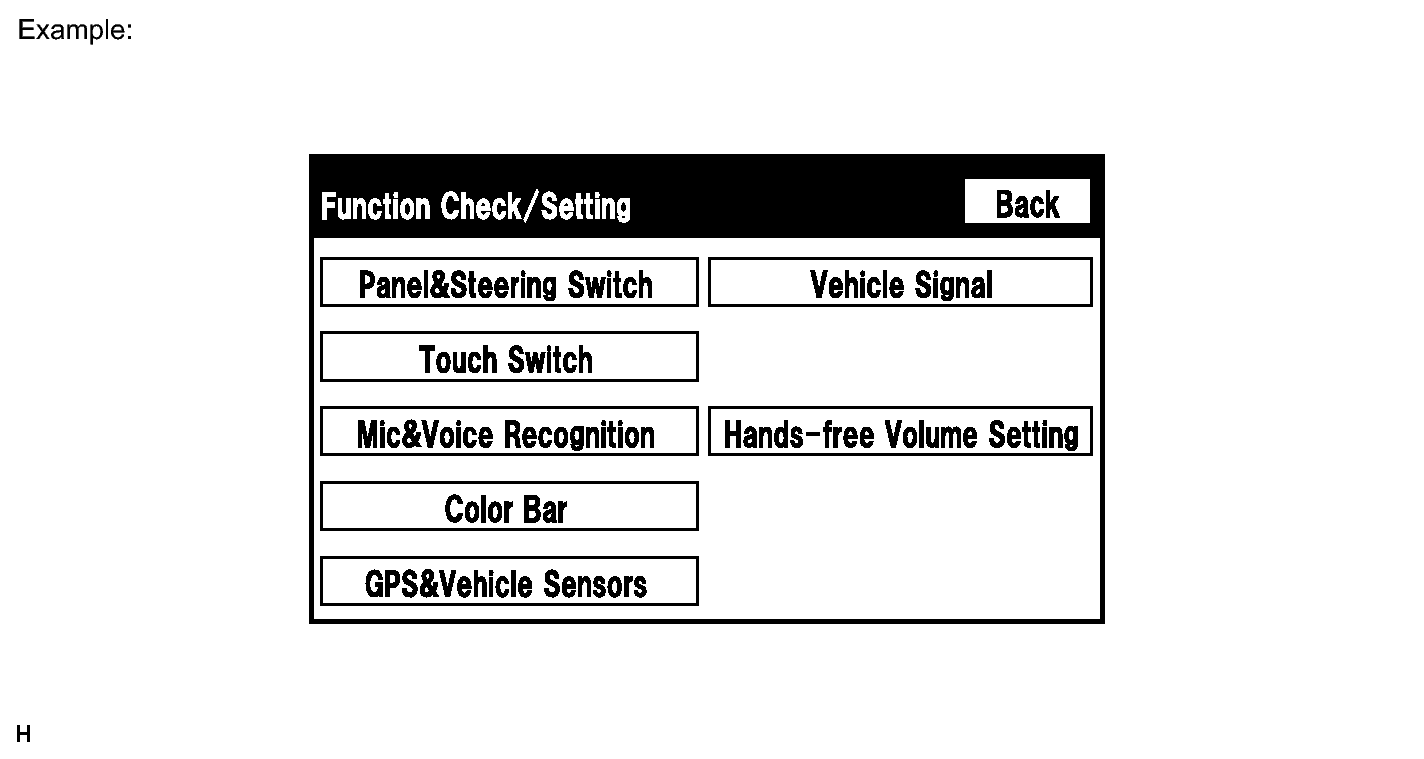

Fig 23: Identifying Function Check/Setting Screen

HINT:

Some items may be grayed out or not displayed based on the device settings.

Microphone&Voice Recognition Check Screen

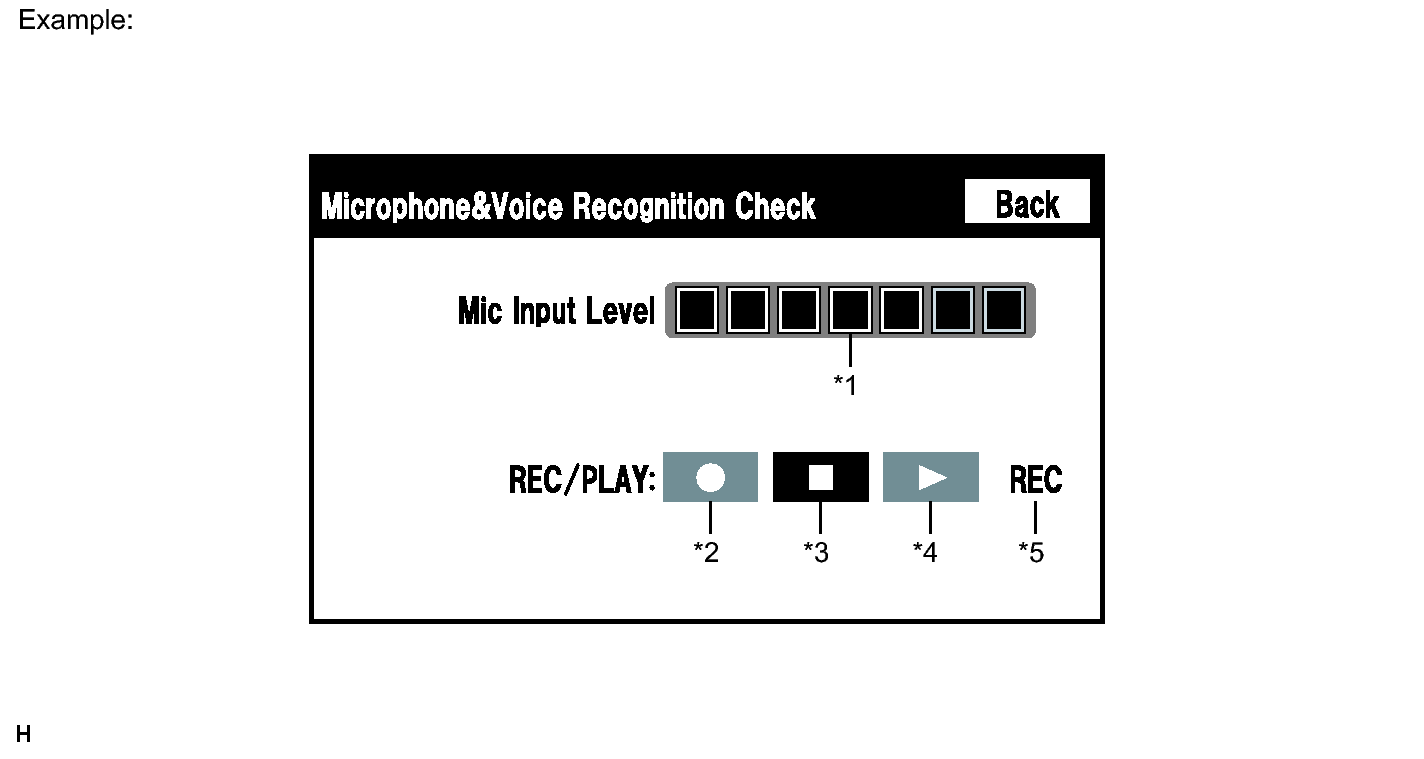

Fig 24: Identifying Microphone&Voice Recognition Check Screen

SCREEN DESCRIPTION

Display	Content
*1: Microphone input level meter	Monitors microphone input level every 0.1 sec. and displays results in 8 different levels
*2: Recording switch	Starts recording
*3: Stop switch	Stops recording
*4: Play switch	Plays recorded voice
*5: Recording indicator	Comes on while recording

HINT:

The microphone is active at all times when this screen is displayed.
While recording or playing, switches other than the stop switch cannot be pushed.
When no recording is present, the play switch cannot be pushed.
Recording stops after 5 seconds or when the stop switch is pushed.

GPS Information Screen

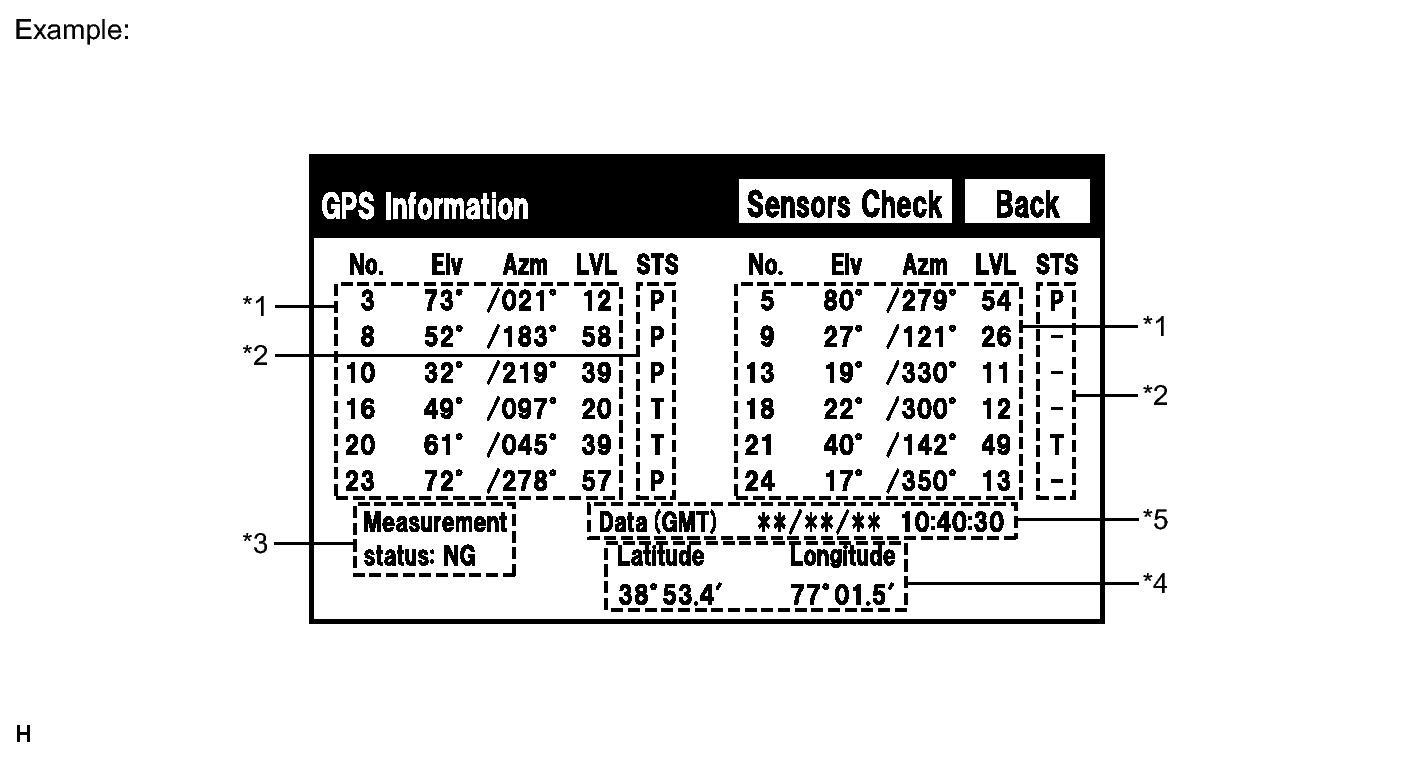

Fig 25: Identifying GPS Information Screen

*1: Satellite Information
Information from a maximum of 12 satellites is displayed on the screen. This information includes the target GPS satellite number, elevation angle, direction and signal level.

*2: Receiving Condition

SCREEN DESCRIPTION

Display	Content
T	System is receiving GPS signal, but is not using it for location
P	System is using GPS signal for location
-	System cannot receive GPS signal

*3: Measurement information

SCREEN DESCRIPTION

Display	Content
2D	2-dimensional location method is being used
3D	3-dimensional location method is being used
NG	Location data cannot be used
Error	Reception error has occurred
-	Any other state

*4: Position Information

SCREEN DESCRIPTION

Display	Content
Position	Latitude and longitude information on current position is displayed

*5: Date Information

SCREEN DESCRIPTION

Display	Content
Date	Date/time information obtained from GPS signal is displayed in Greenwich Mean Time (GMT)

Vehicle Sensors Screen

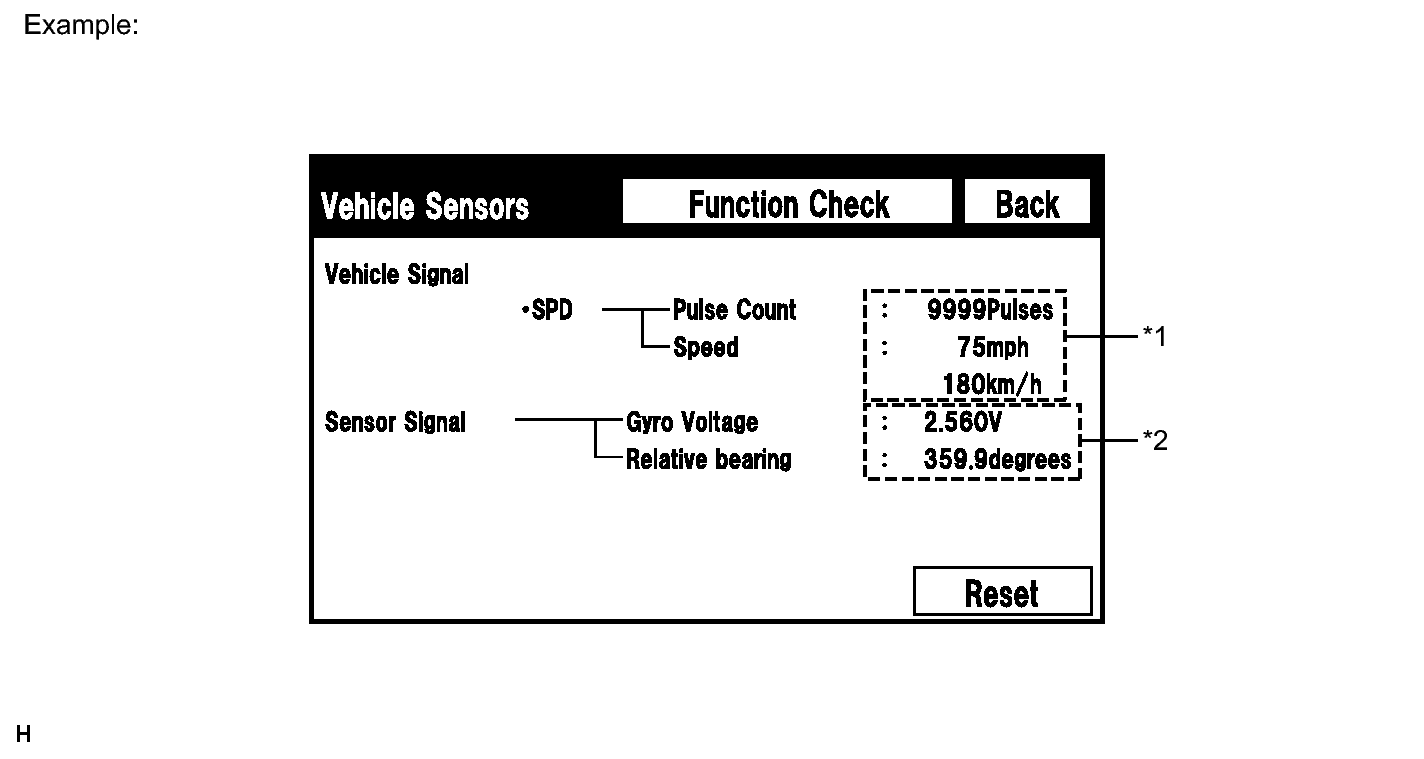

Fig 26: Identifying Vehicle Sensors Screen

VEHICLE SIGNAL

Display	Content
*1: SPD	SPD signal condition is displayed

SENSOR SIGNAL

Display	Content
*2: Gyro sensor	Gyro sensor output condition is displayed 2.1 to 2.9 V

HINT:

The signals from the vehicle sensors are updated once per second and if any have changed, the screen is updated.

Vehicle Signal Check Mode Screen

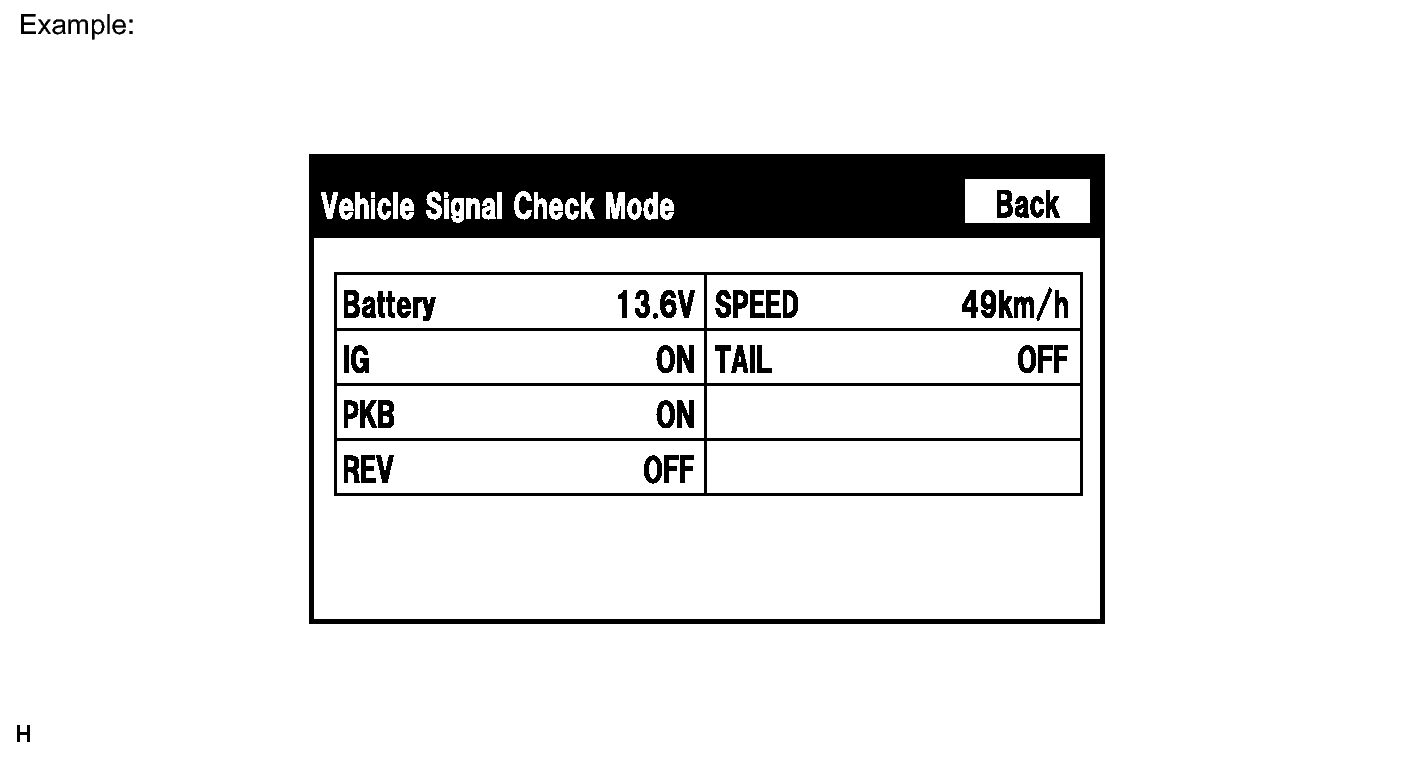

Fig 27: Identifying Vehicle Signal Check Mode Screen

SCREEN DESCRIPTION

Display	Content
Battery	Battery voltage is displayed
IG	Ignition switch ON/OFF state is displayed
PKB	Parking brake ON/OFF state is displayed
REV	Reverse signal ON/OFF state is displayed
SPEED	Vehicle speed is displayed in km/h
TAIL	Tail signal (light control switch) ON/OFF state is displayed

HINT:

Only items sending vehicle signals are displayed.
The input signals from the vehicle are updated once per second and if any have changed, the screen is updated.
