Smart Key System: Notes

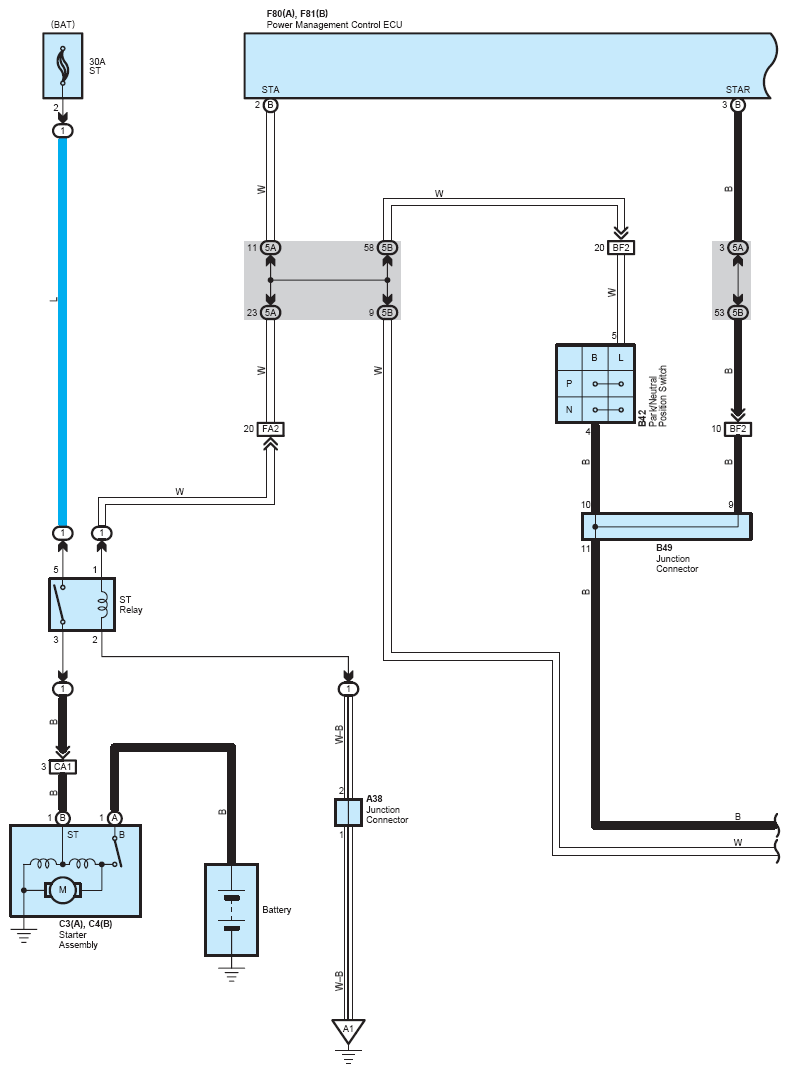

Fig 1: Smart Key System - Circuit Diagram (1 Of 20)

G07551696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

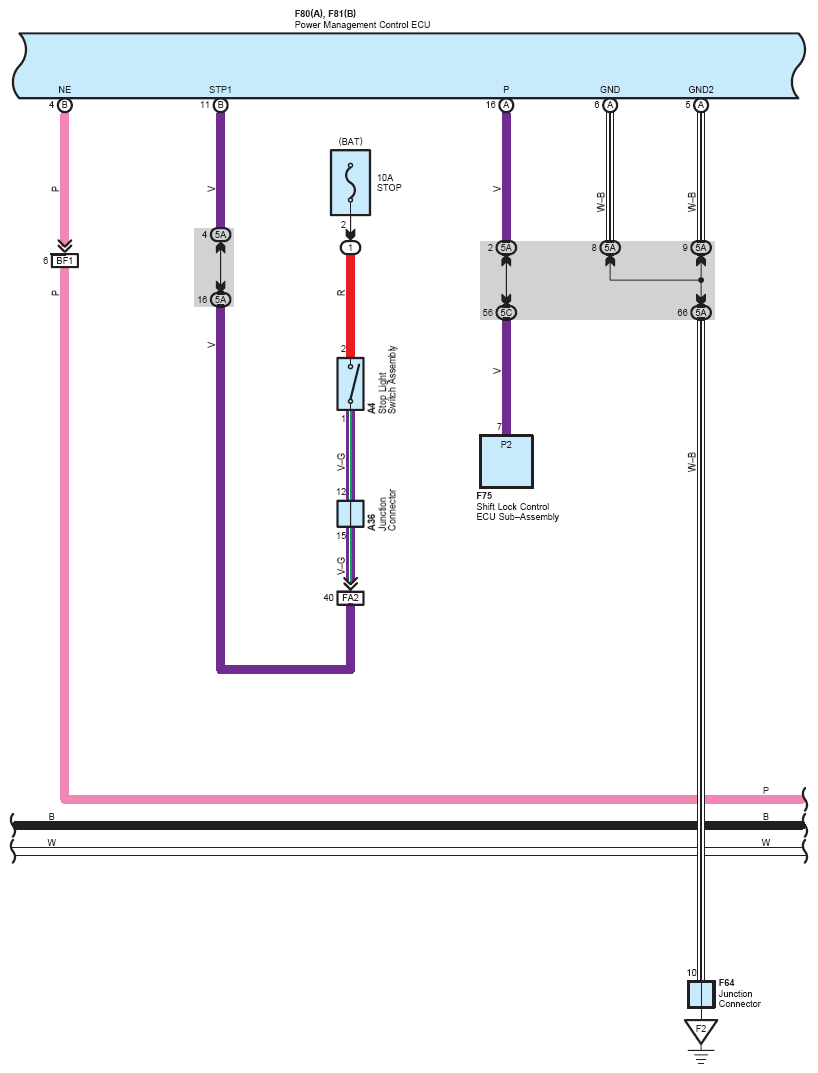

Fig 2: Smart Key System - Circuit Diagram (2 Of 20)

G07551697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

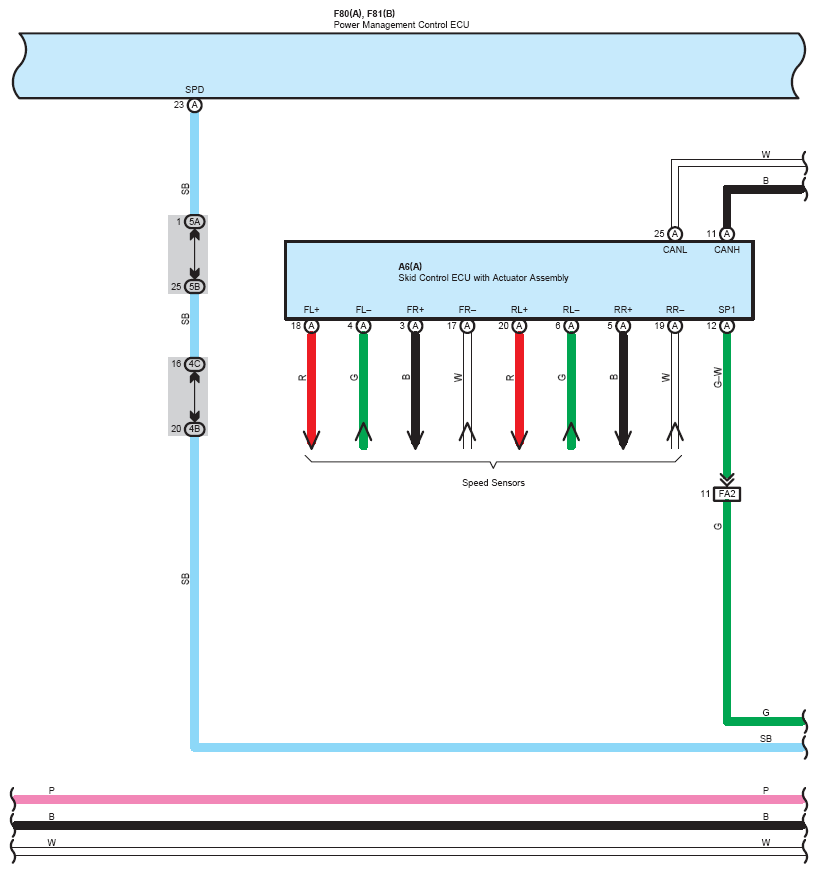

Fig 3: Smart Key System - Circuit Diagram (3 Of 20)

G07551698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

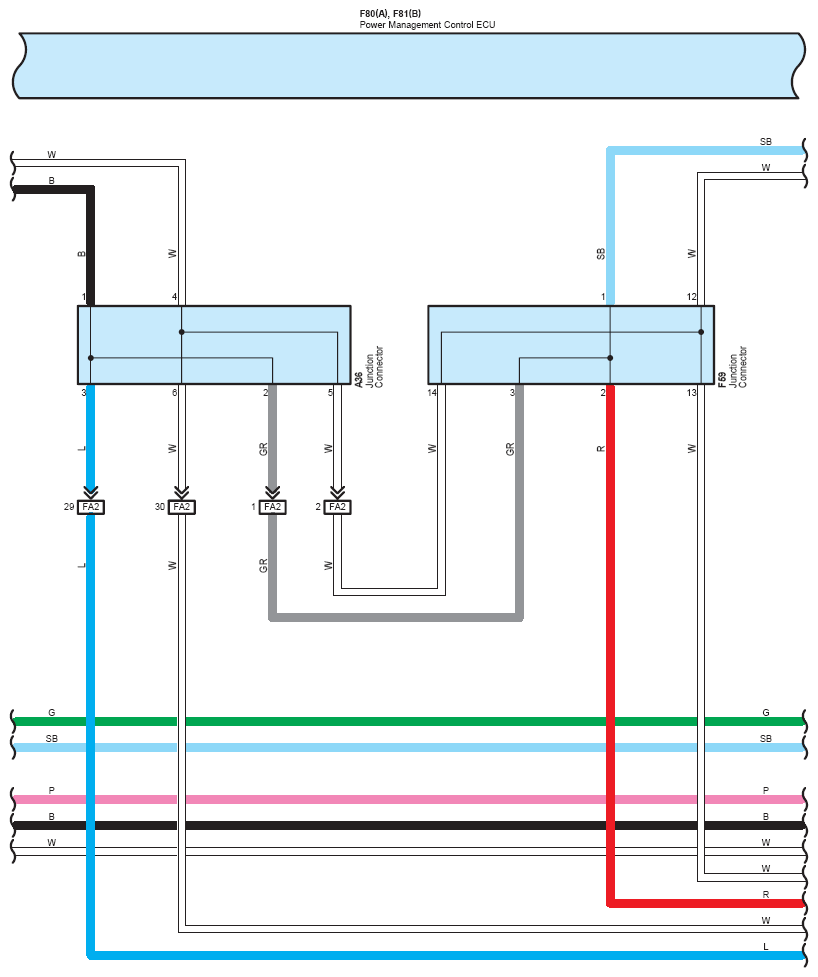

Fig 4: Smart Key System - Circuit Diagram (4 Of 20)

G07551699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

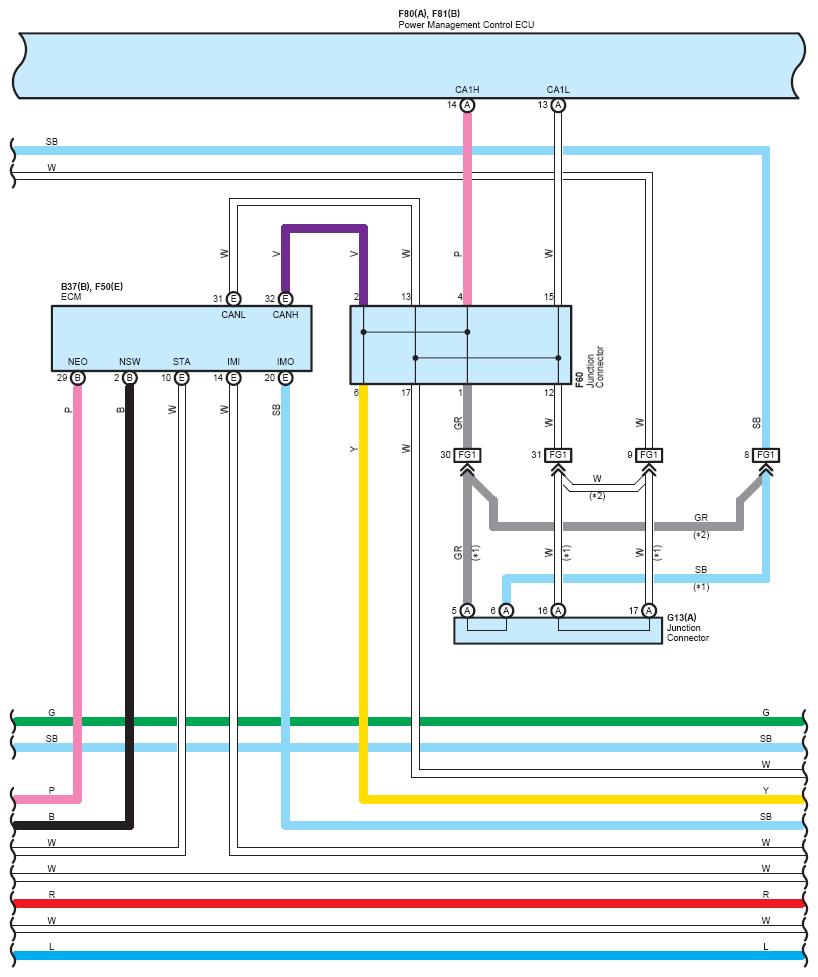

Fig 5: Smart Key System - Circuit Diagram (5 Of 20)

G07551700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

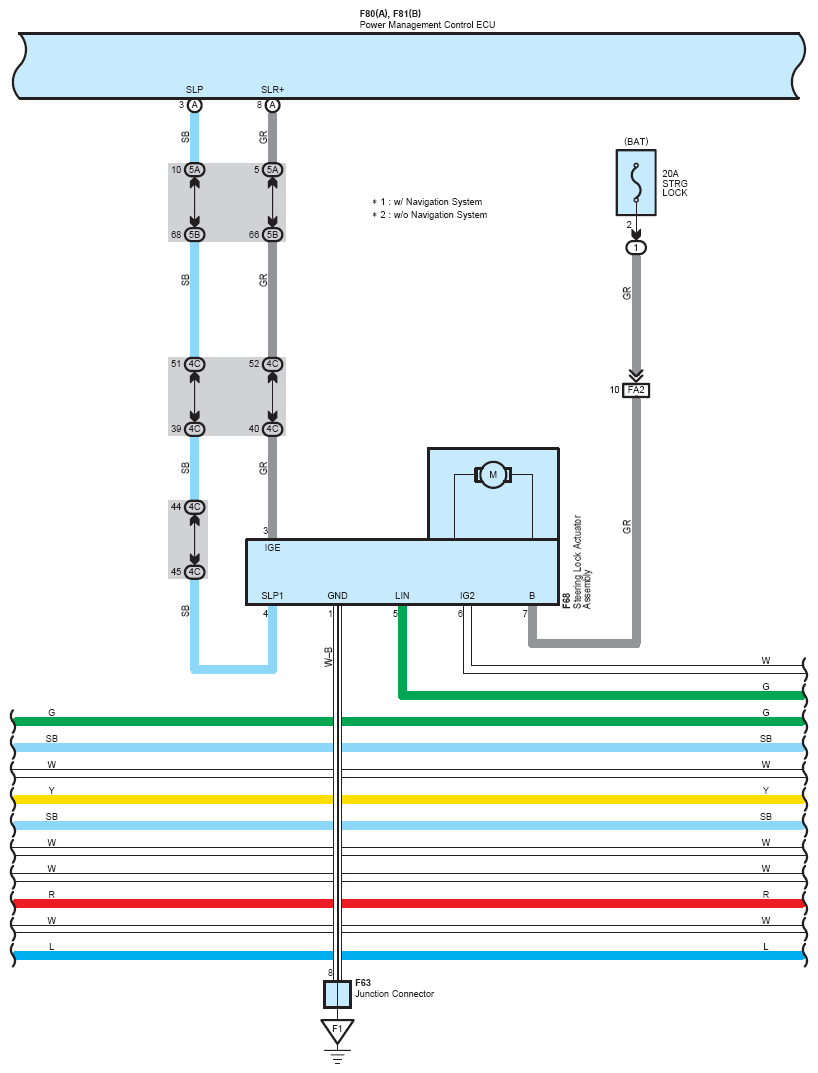

Fig 6: Smart Key System - Circuit Diagram (6 Of 20)

G07551701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

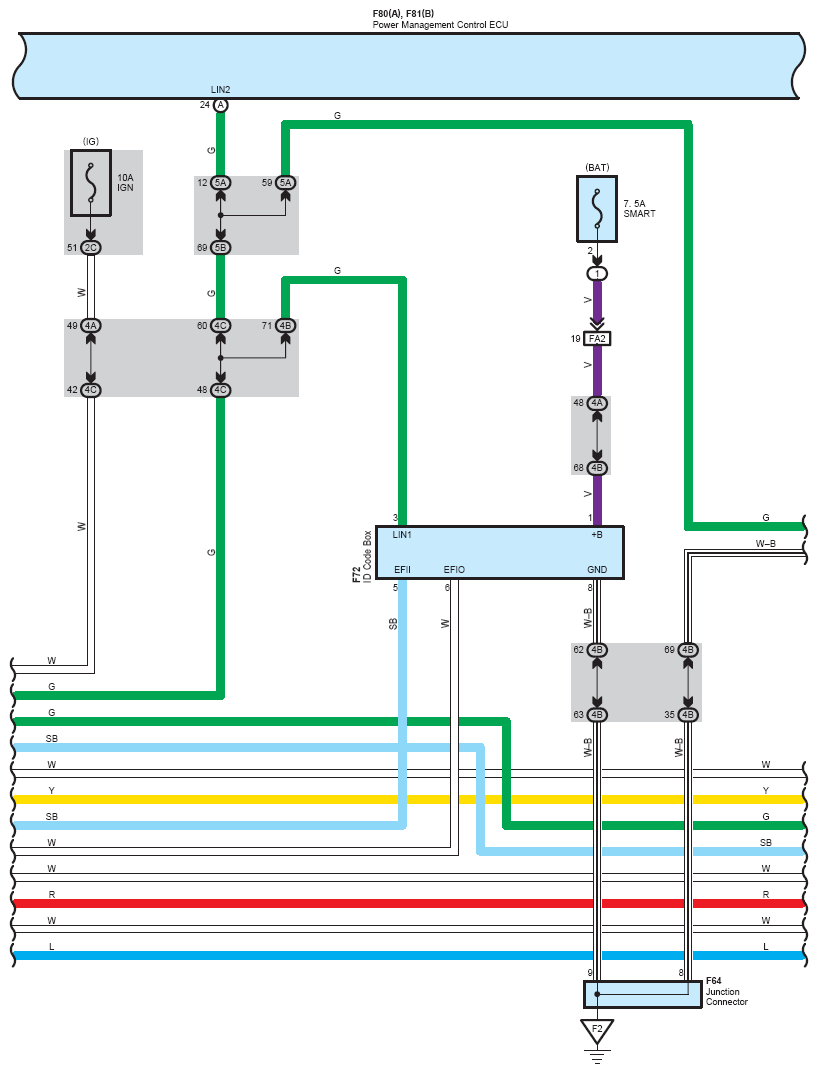

Fig 7: Smart Key System - Circuit Diagram (7 Of 20)

G07551702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

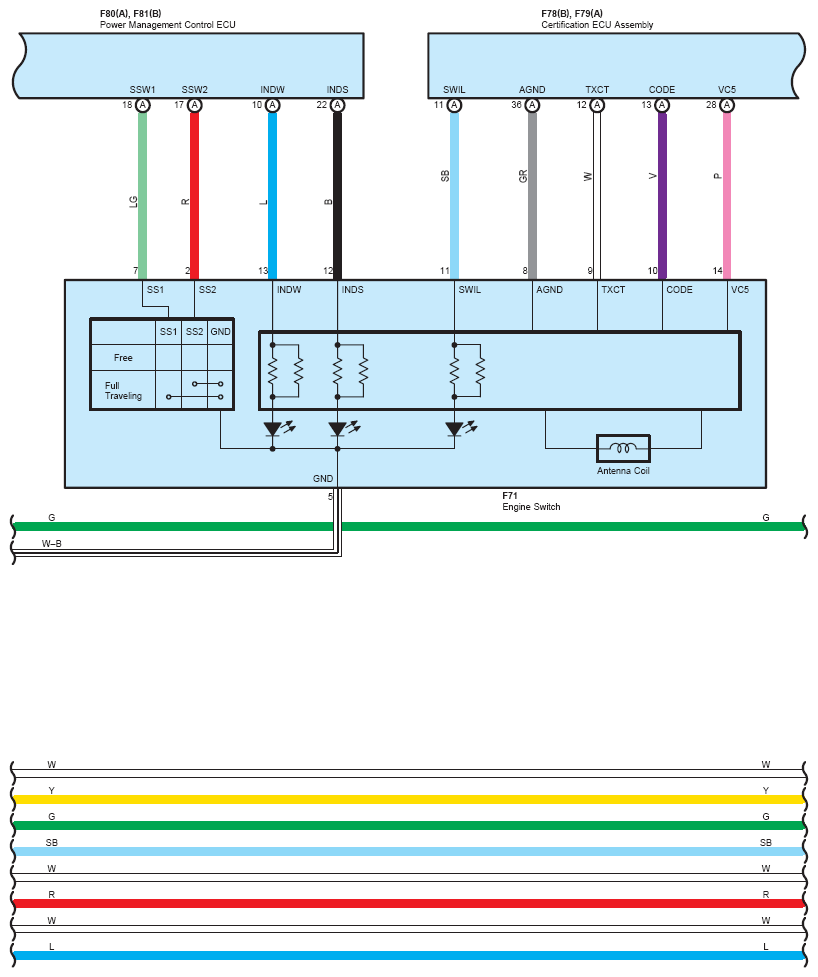

Fig 8: Smart Key System - Circuit Diagram (8 Of 20)

G07551703

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

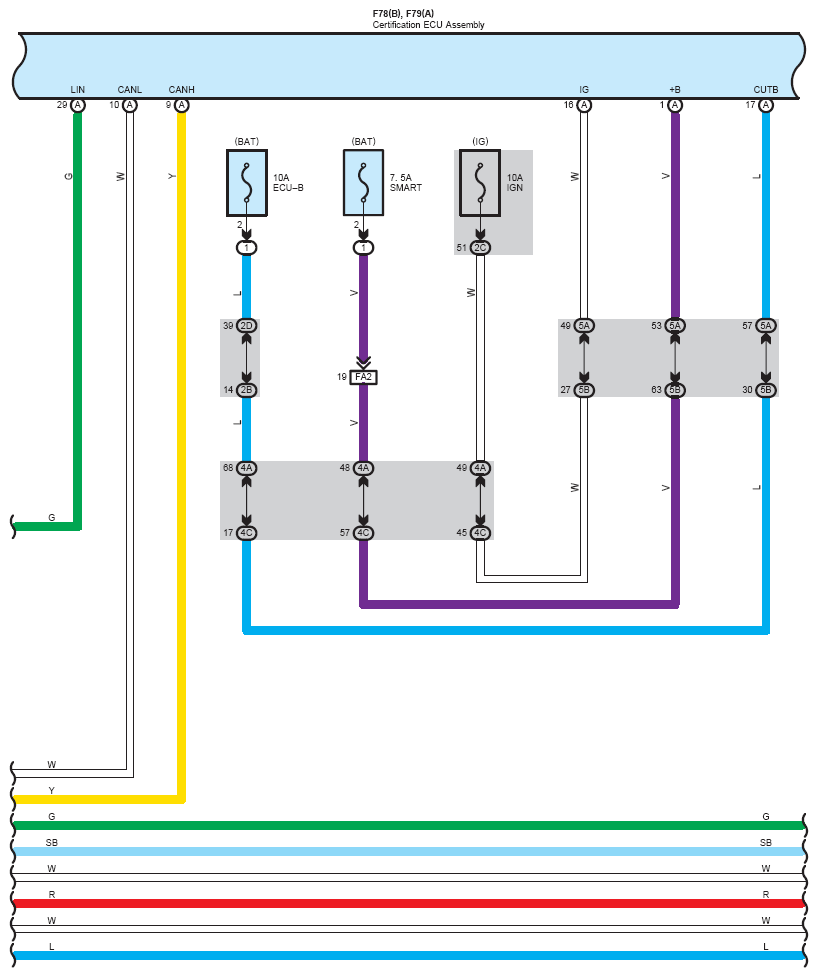

Fig 9: Smart Key System - Circuit Diagram (9 Of 20)

G07551704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

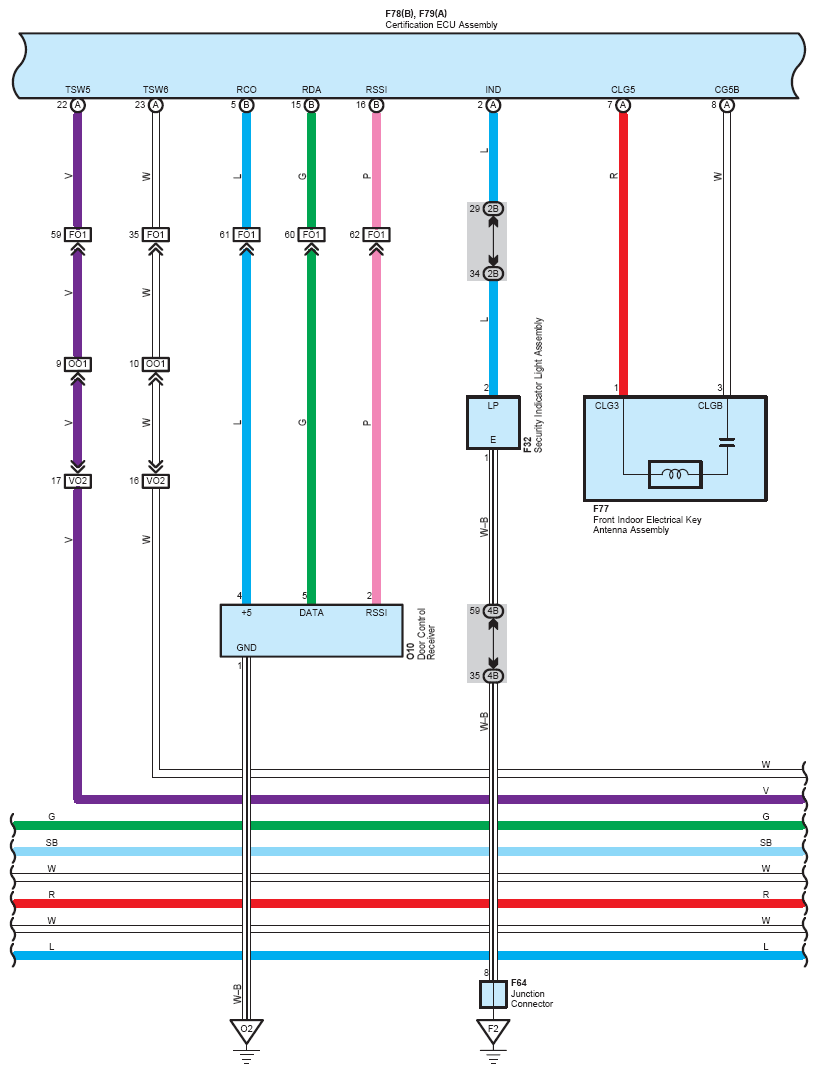

Fig 10: Smart Key System - Circuit Diagram (10 Of 20)

G07551705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

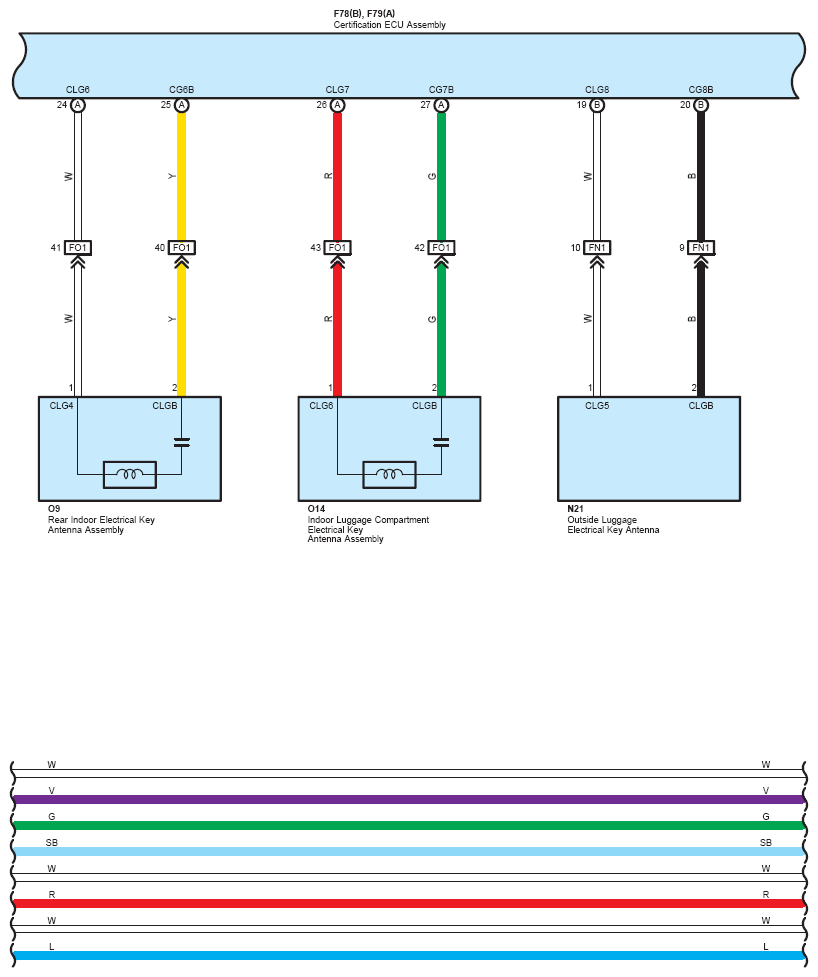

Fig 11: Smart Key System - Circuit Diagram (11 Of 20)

G07551706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

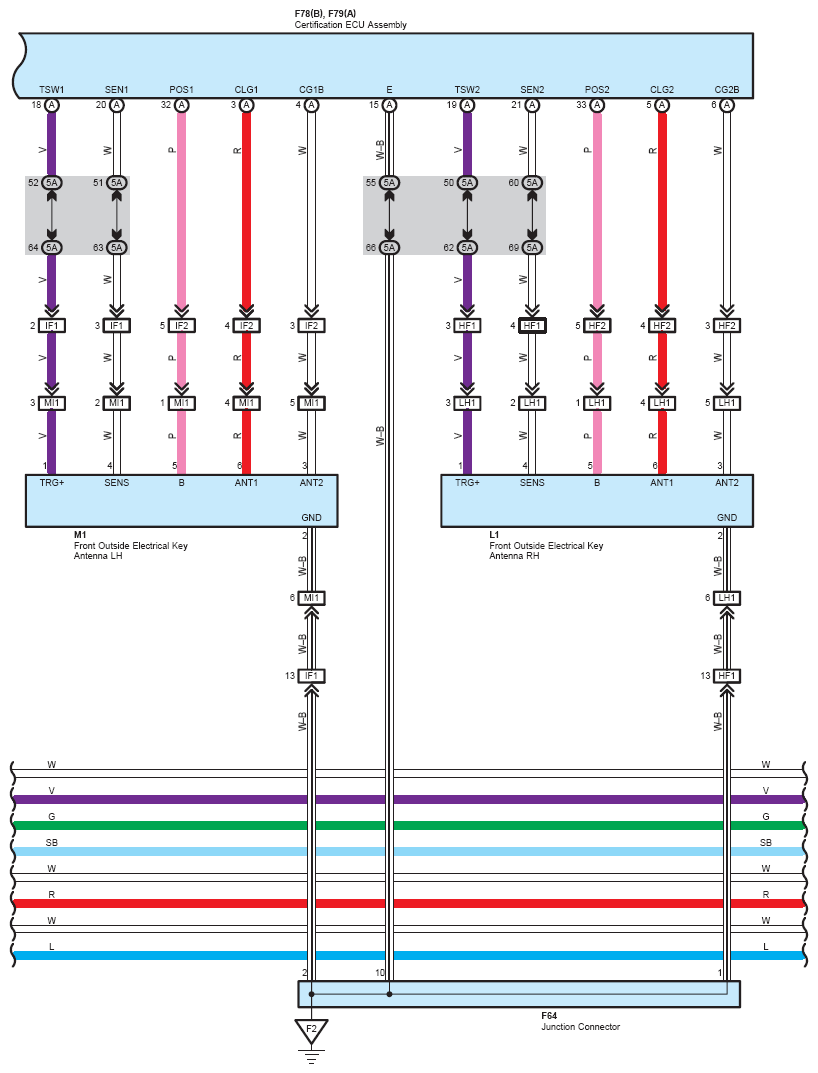

Fig 12: Smart Key System - Circuit Diagram (12 Of 20)

G07551707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

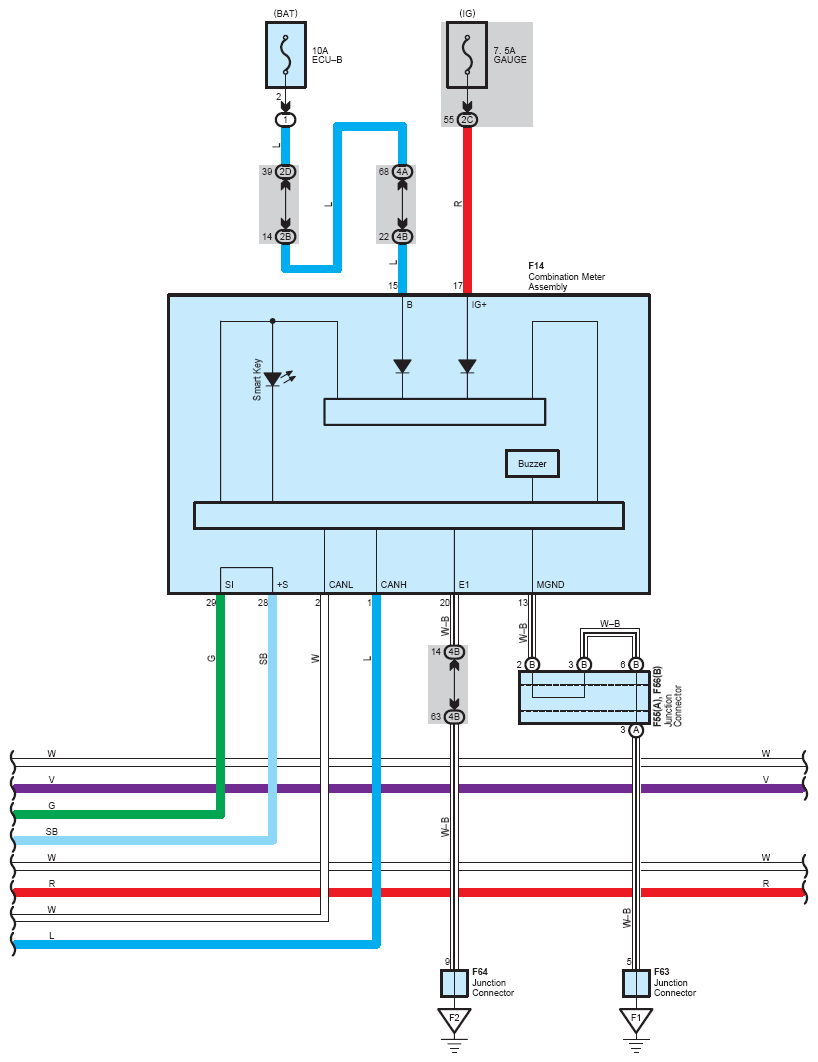

Fig 13: Smart Key System - Circuit Diagram (13 Of 20)

G07551708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

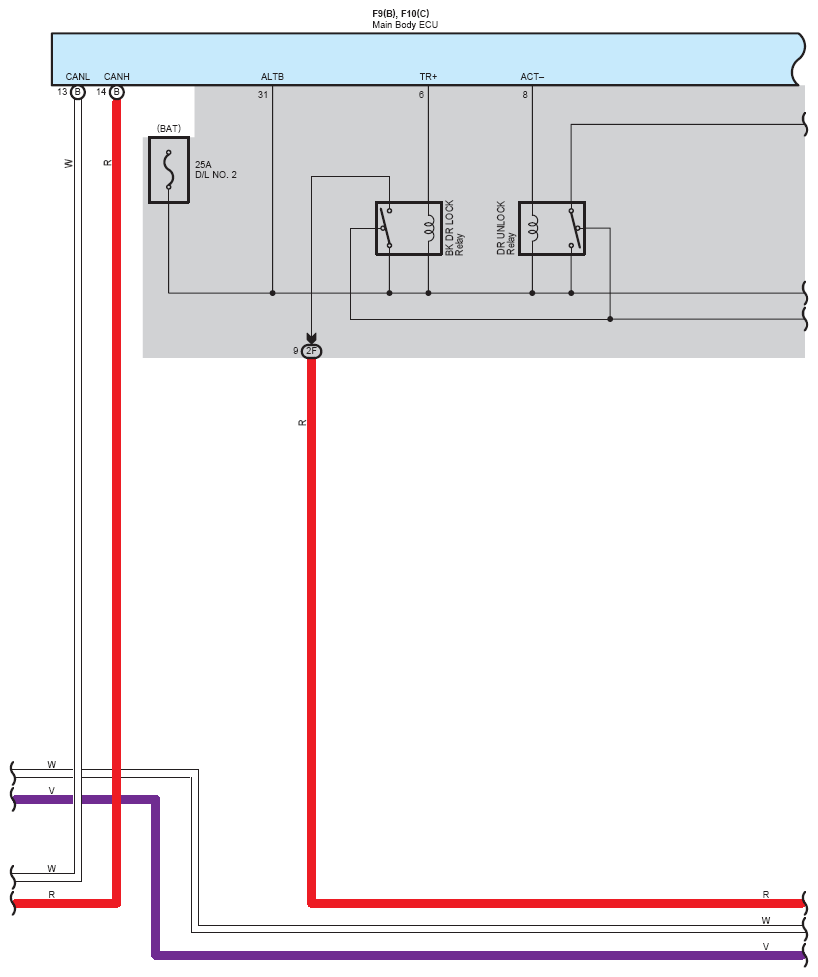

Fig 14: Smart Key System - Circuit Diagram (14 Of 20)

G07551709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

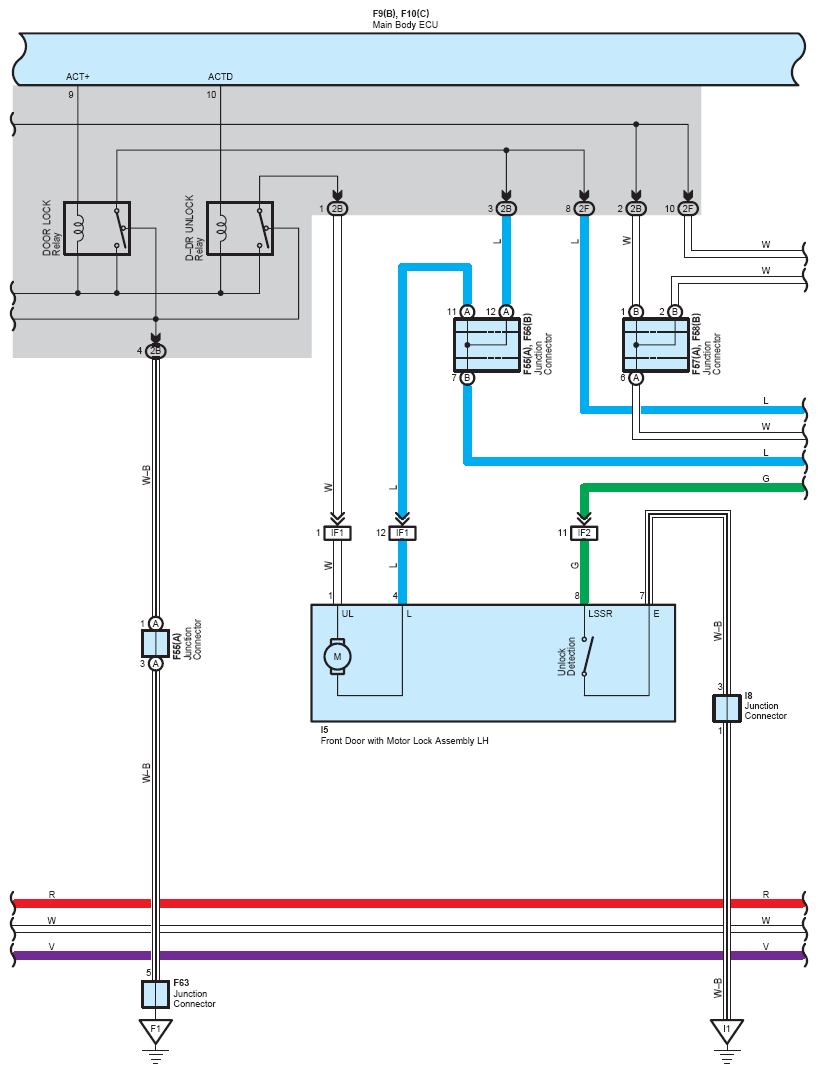

Fig 15: Smart Key System - Circuit Diagram (15 Of 20)

G07551710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

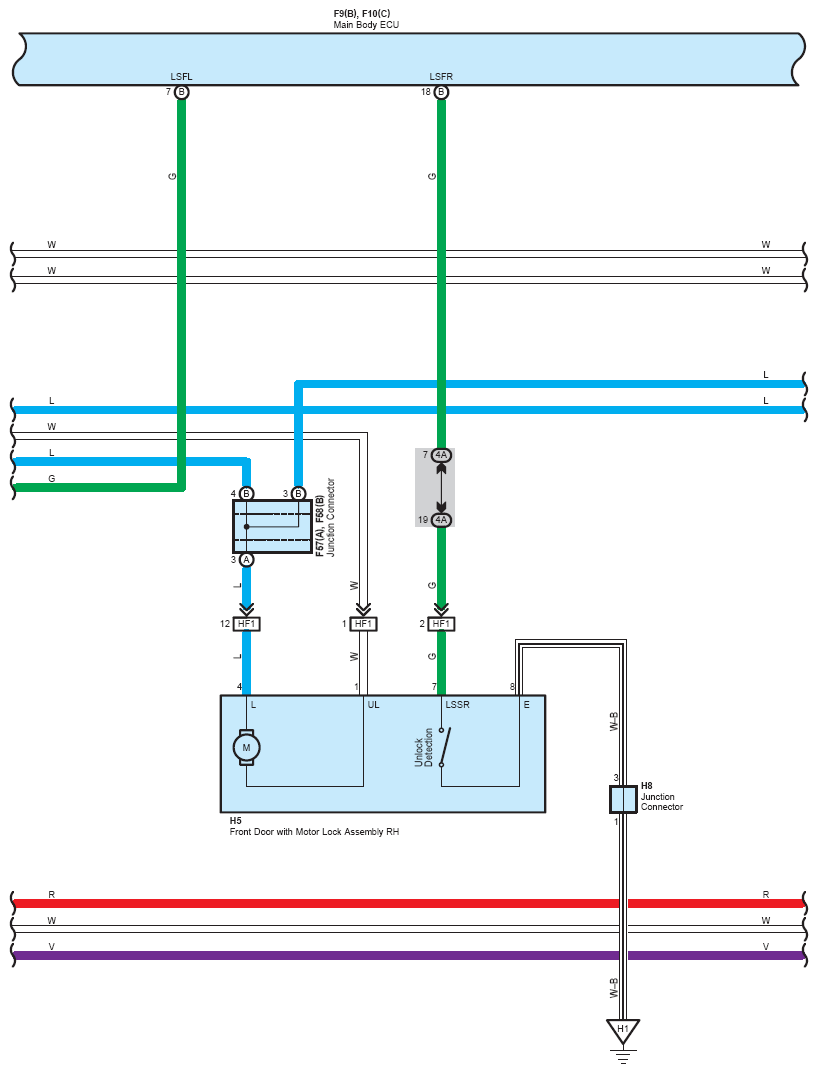

Fig 16: Smart Key System - Circuit Diagram (16 Of 20)

G07551711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

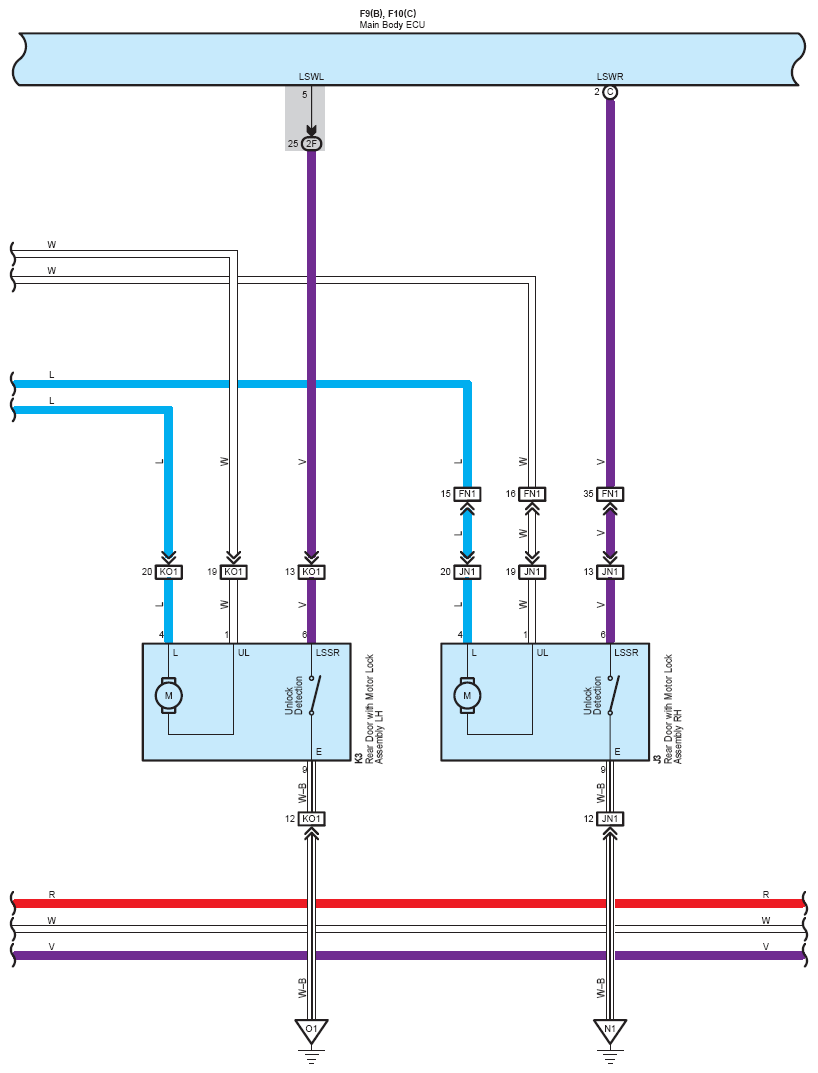

Fig 17: Smart Key System - Circuit Diagram (17 Of 20)

G07551712

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

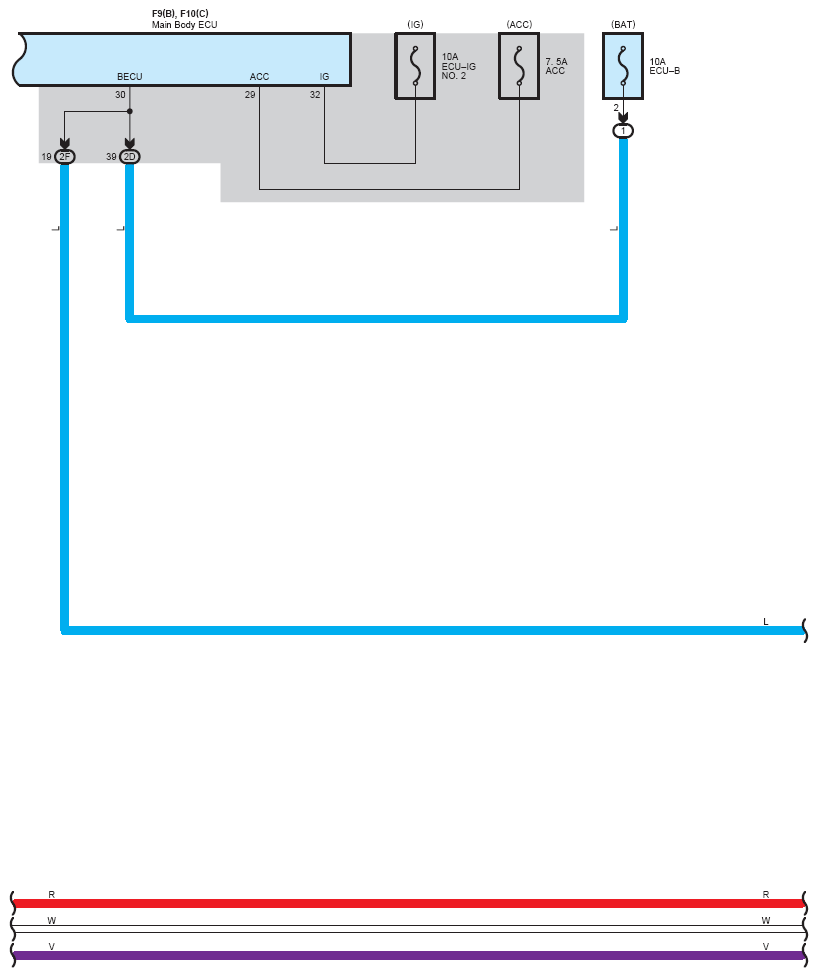

Fig 18: Smart Key System - Circuit Diagram (18 Of 20)

G07551713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

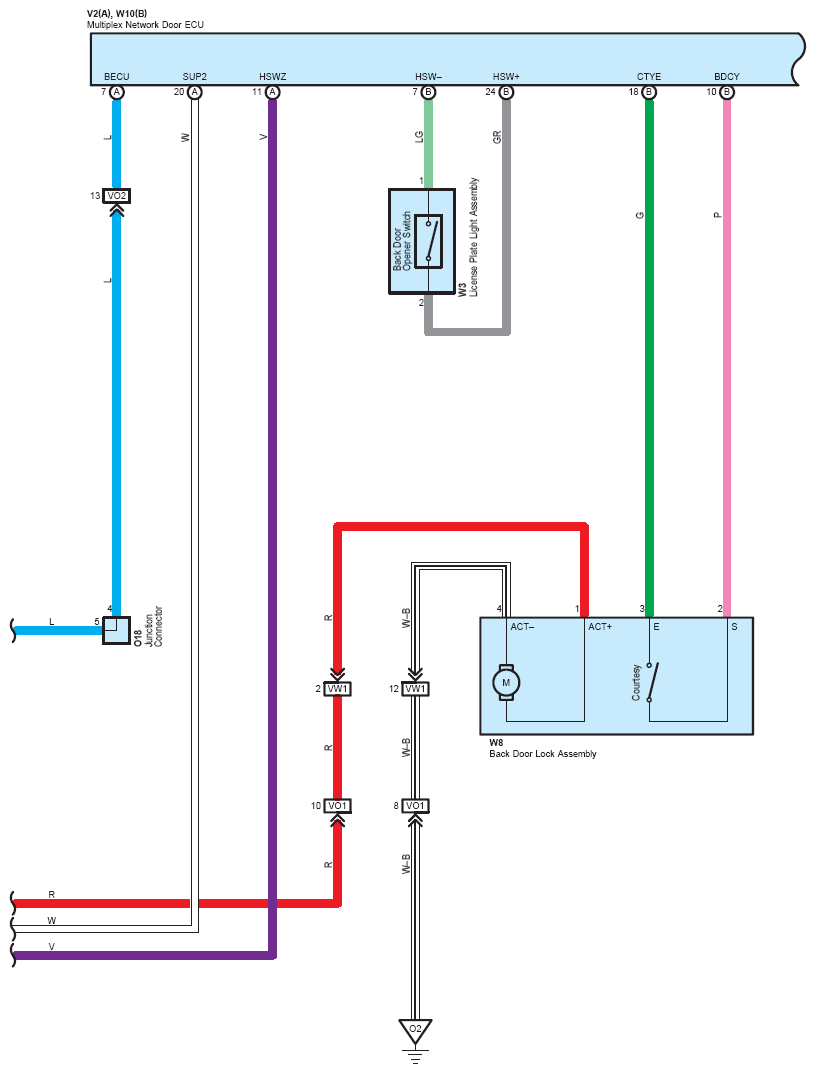

Fig 19: Smart Key System - Circuit Diagram (19 Of 20)

G07551714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

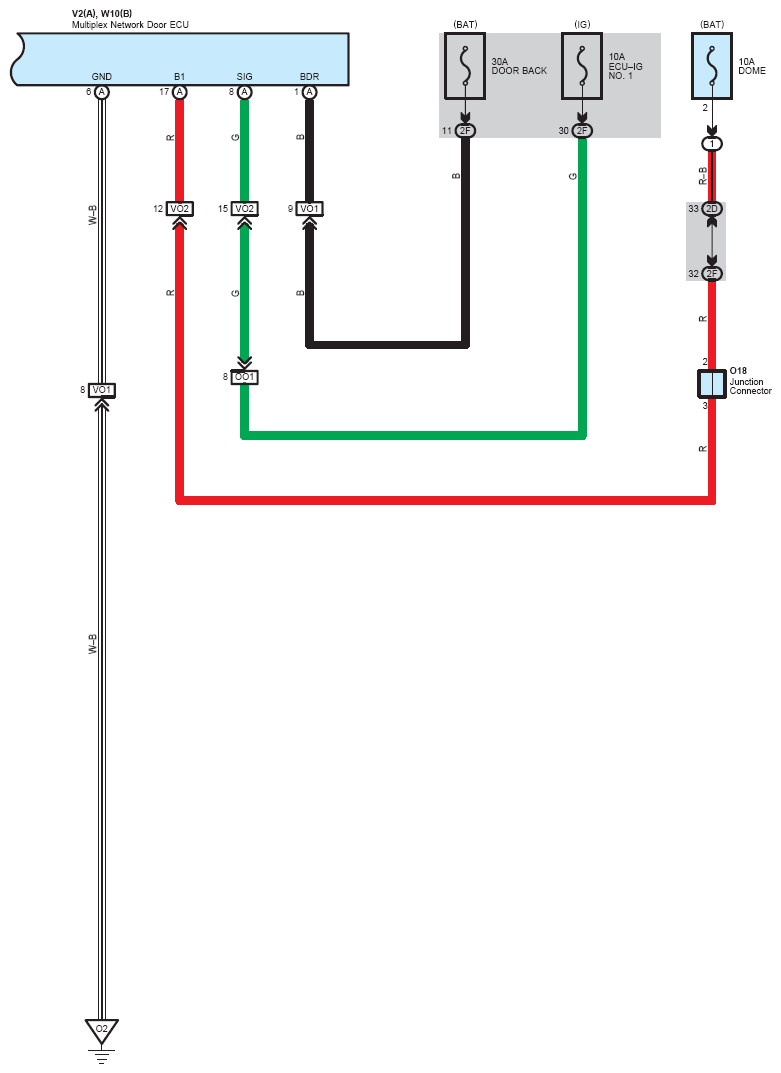

Fig 20: Smart Key System - Circuit Diagram (20 Of 20)

G07551715

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
