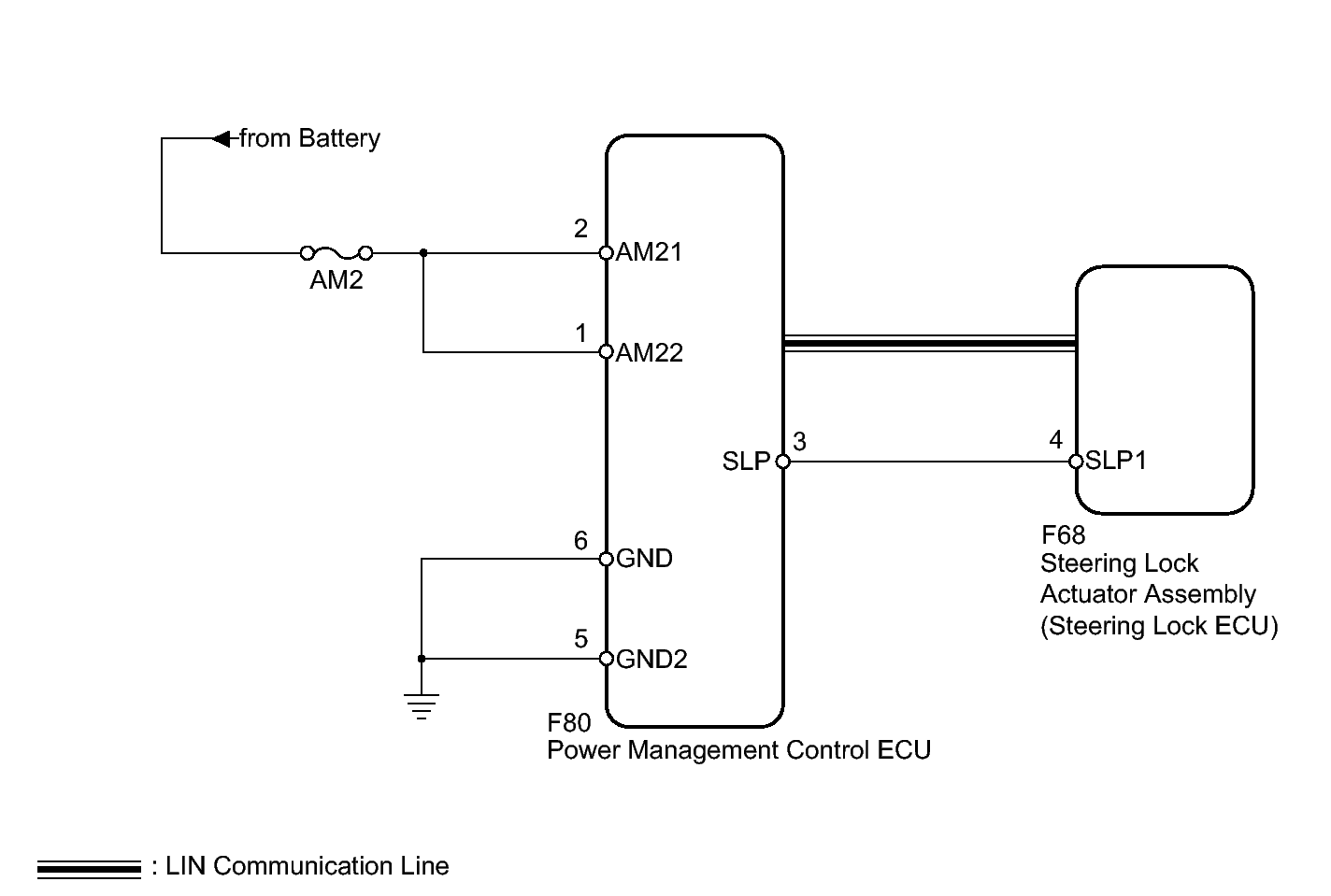

DTC B2285: Steering Lock Position Signal Circuit Malfunction: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
