POWER SOURCE (Current Flow Chart): Notes

The chart below shows the route by which current flows from the battery to each electrical source

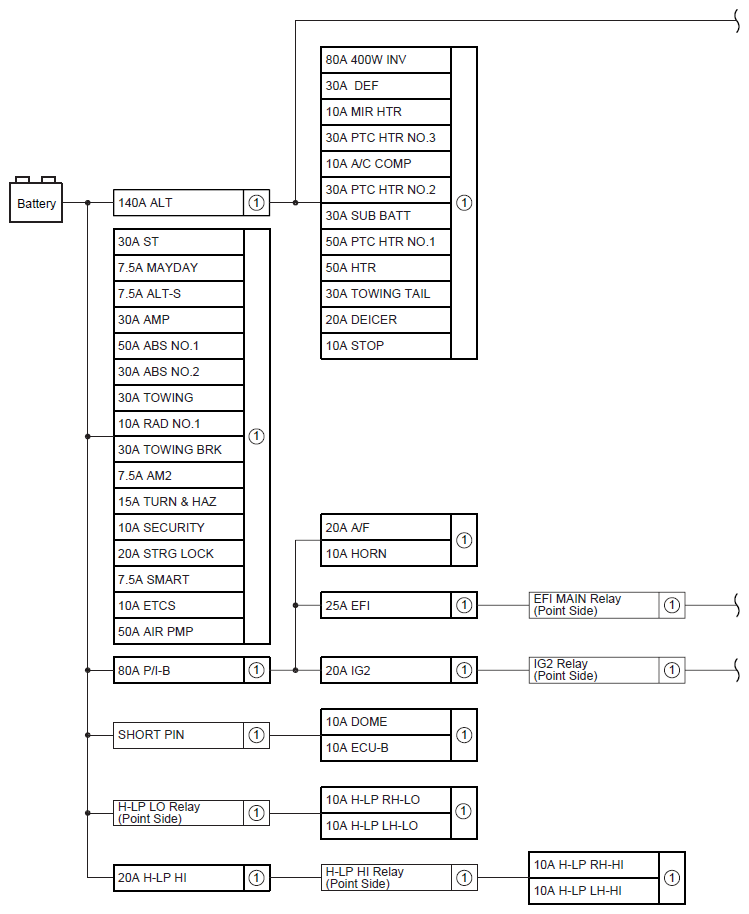

Fig 1: Power Source Current Flow Chart (1 Of 2)
