Wireless Door Lock Control System (W/ Smart Key System) (Diagnostic Information) (Except Hybrid)
>>
WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)
>>
Power Source Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Source Circuit: Wiring Diagram

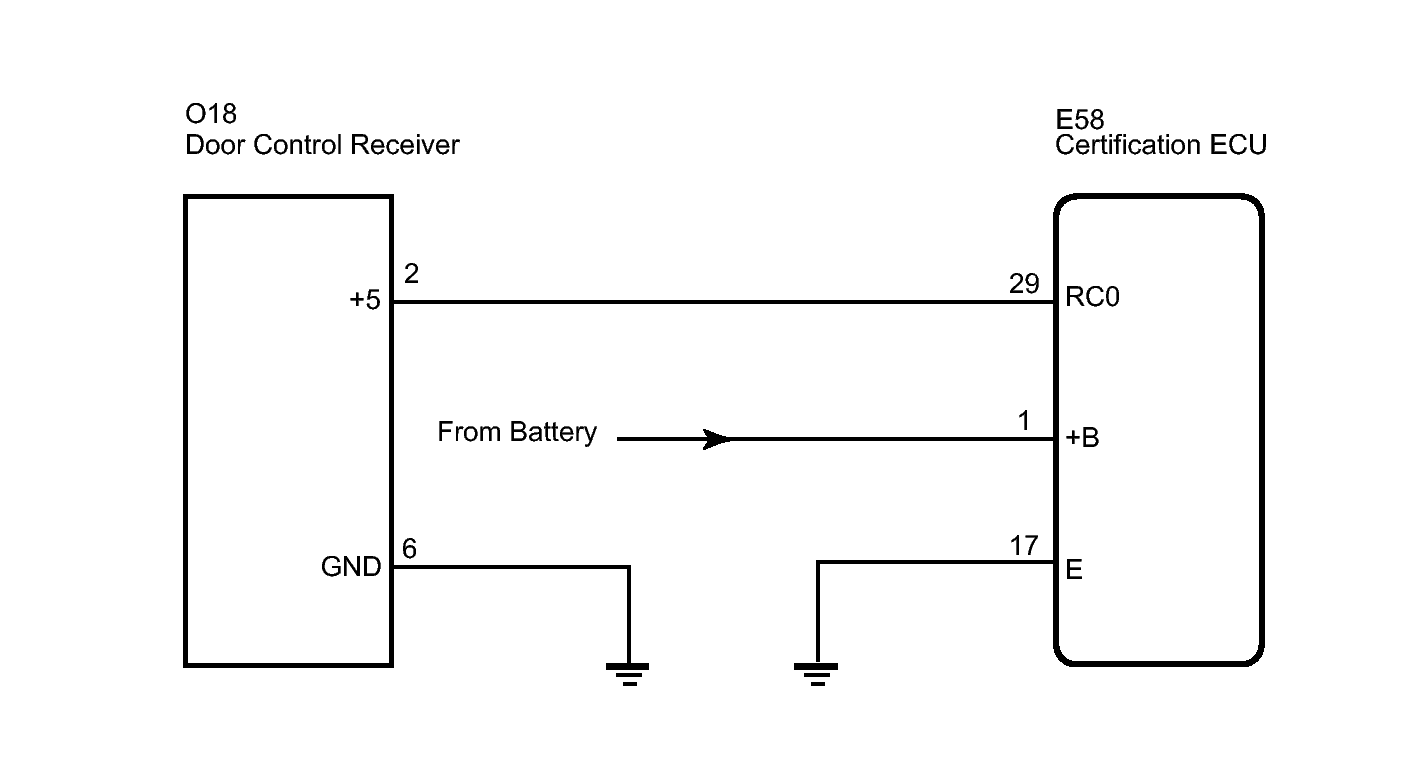

Fig 1: Power Source - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
