Wireless Door Lock Control System (W/Smart Key System) (Diagnostics - Introduction) (Except Hybrid)
>>
WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

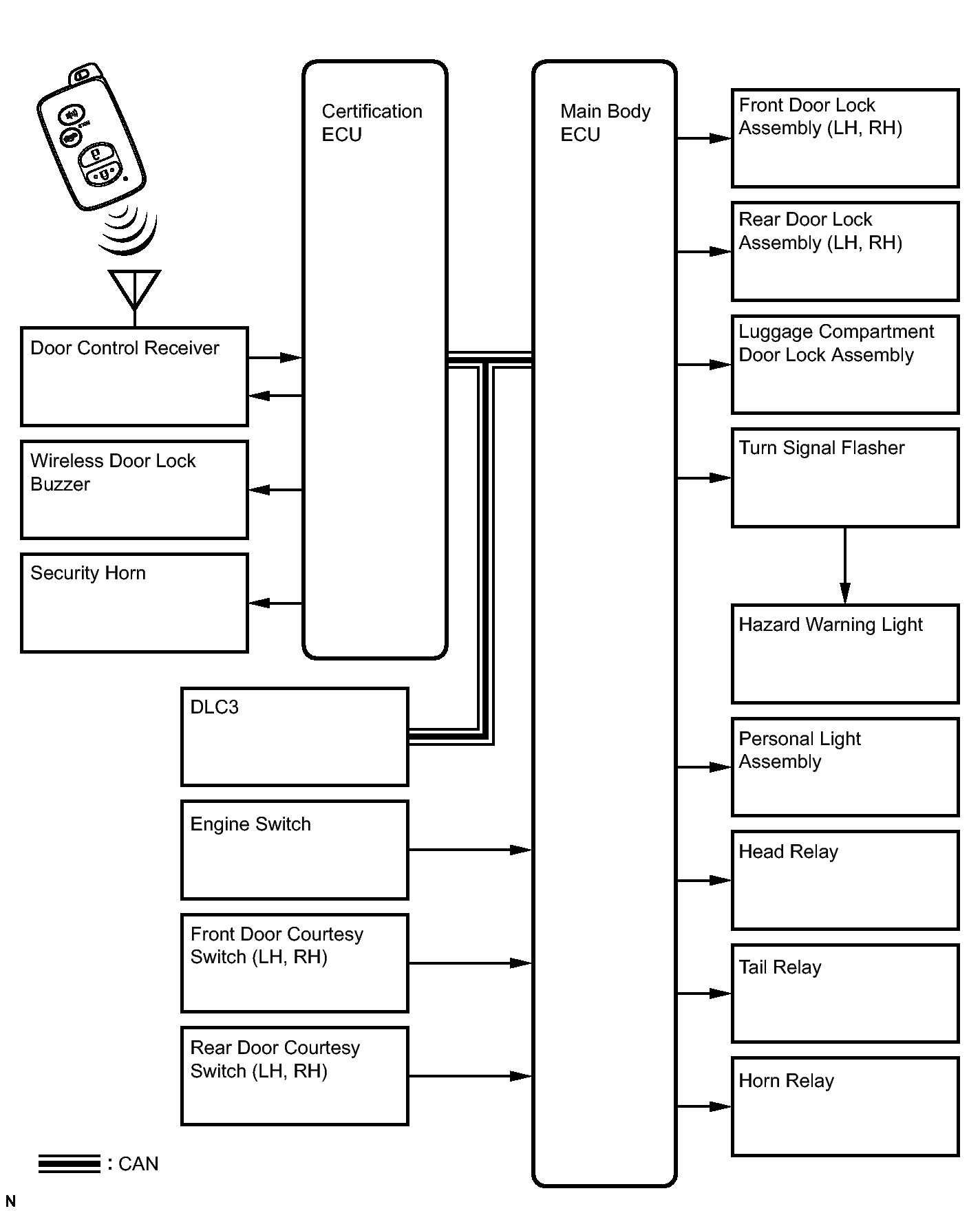

Fig 1: Wireless Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter)
Receiving ECU (Receiver)
Signal
Line
Certification ECU
Main body ECU
Wireless door lock signal
CAN
