Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

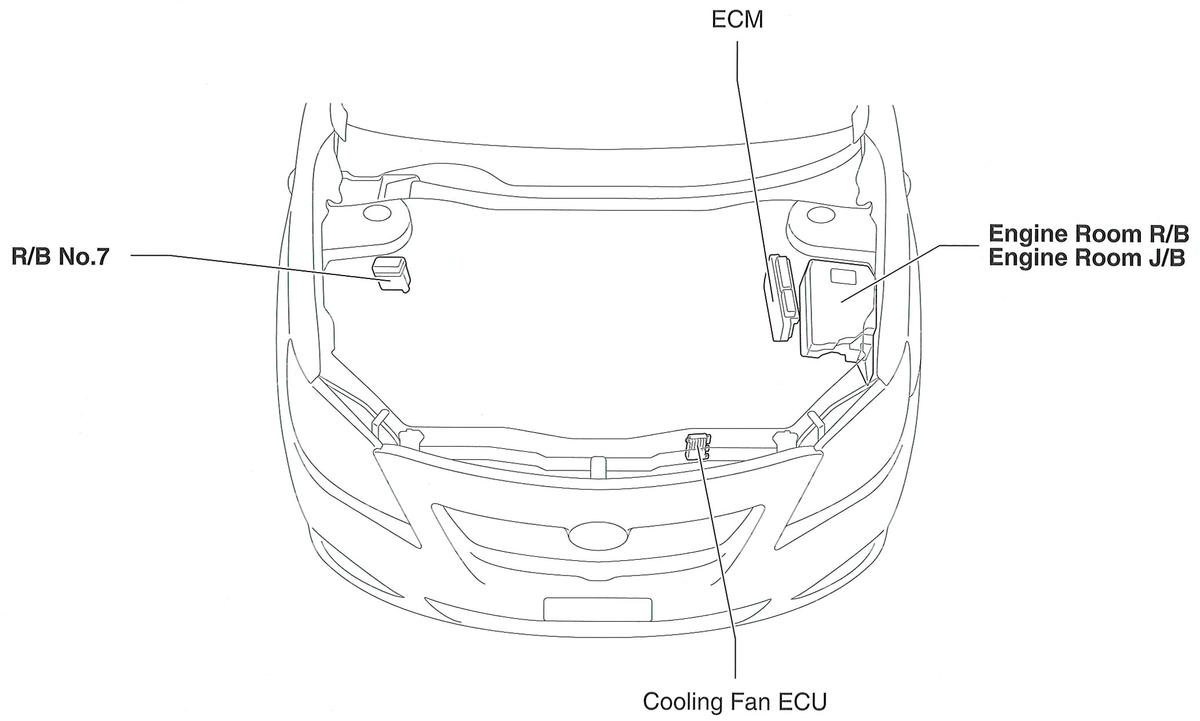

| Engine Room J/B | Left side of engine compartment. See Figure. |
| Engine Room R/B | Engine room J/B. See Figure. |
| Instrument Panel J/B | Left side of dash. See Figure. |

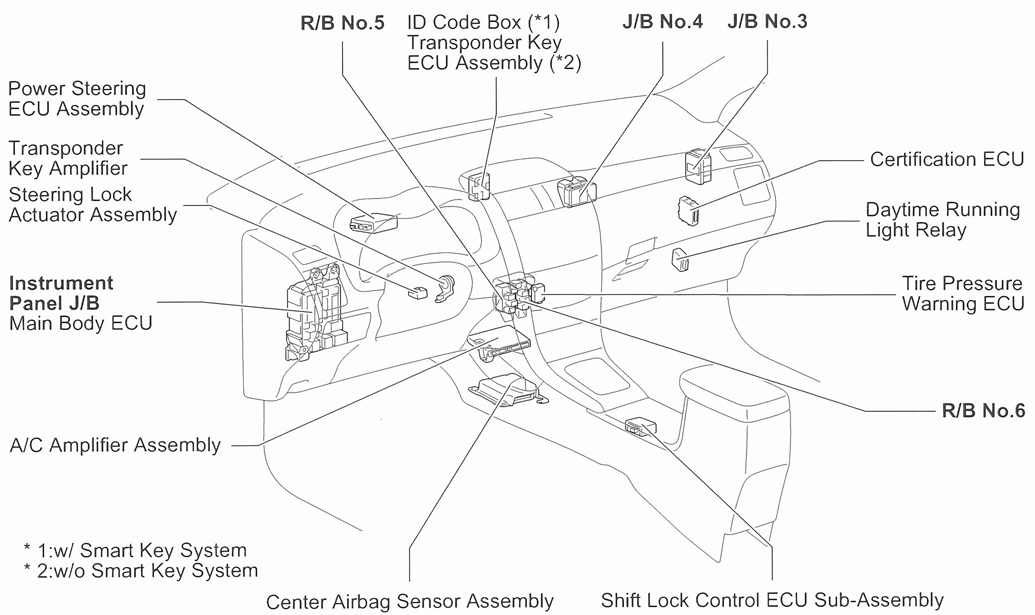

| J/B No. 3 | Right side of dash. See Figure. |
| J/B No. 4 | Right side of dash. See Figure. |
| R/B No. 5 | Center of dash. See Figure. |
| R/B No. 6 | Center of dash. See Figure. |
| R/B No. 7 | Right side of engine compartment. See Figure. |

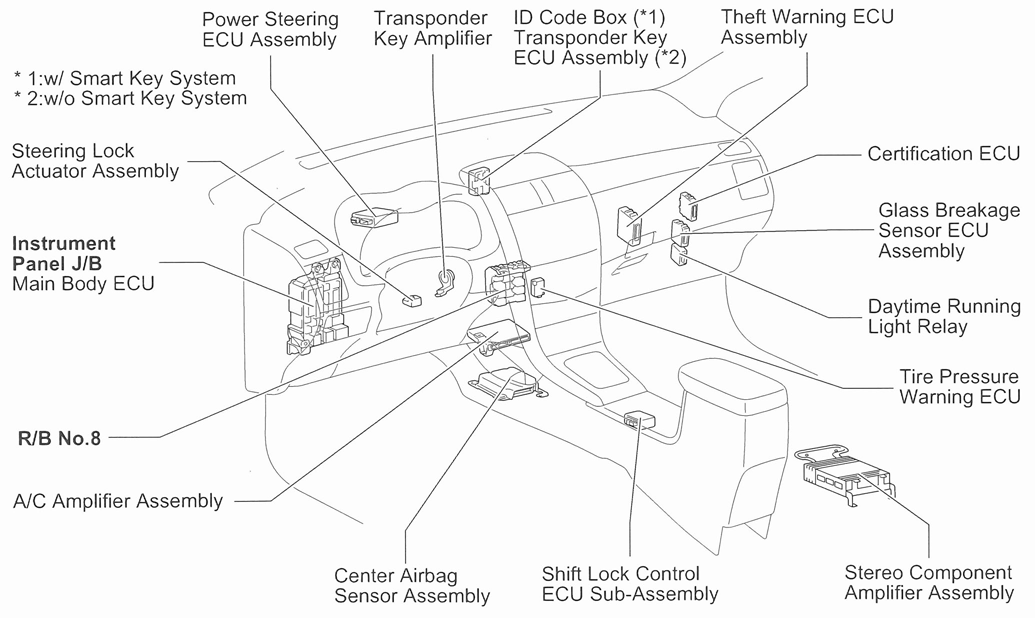

| R/B No. 8 | Center of dash. See Figure. |
