Multiplex Communication System (CAN) (Except TMC Made): Notes

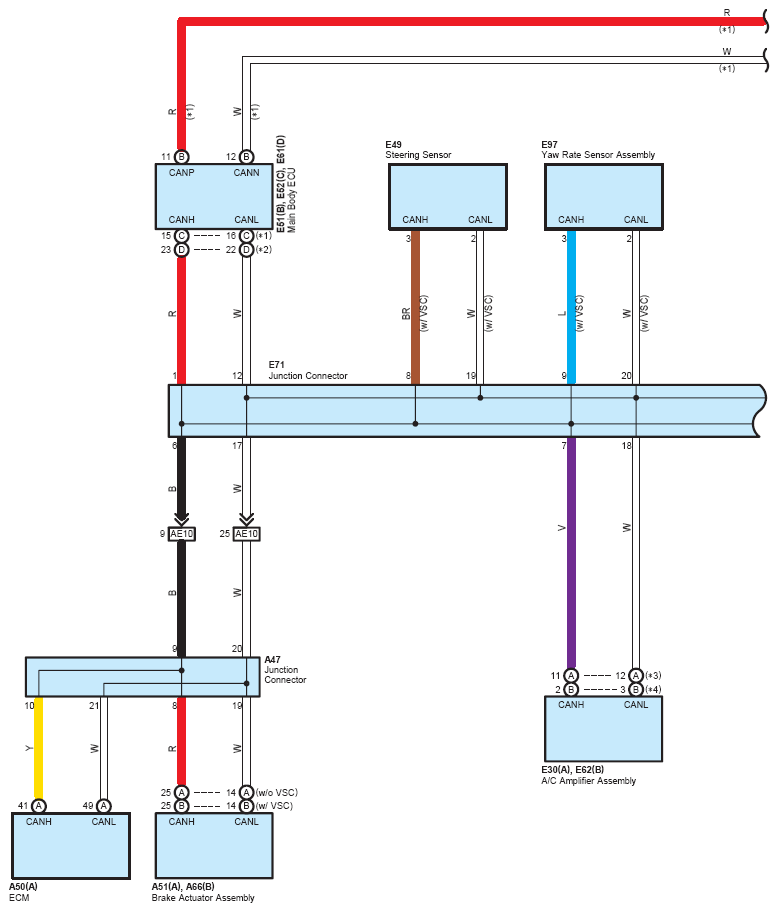

Fig 1: Multiplex Communication System [CAN] (Except TMC Made) - Circuit Diagram (1 Of 2)
G07551244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

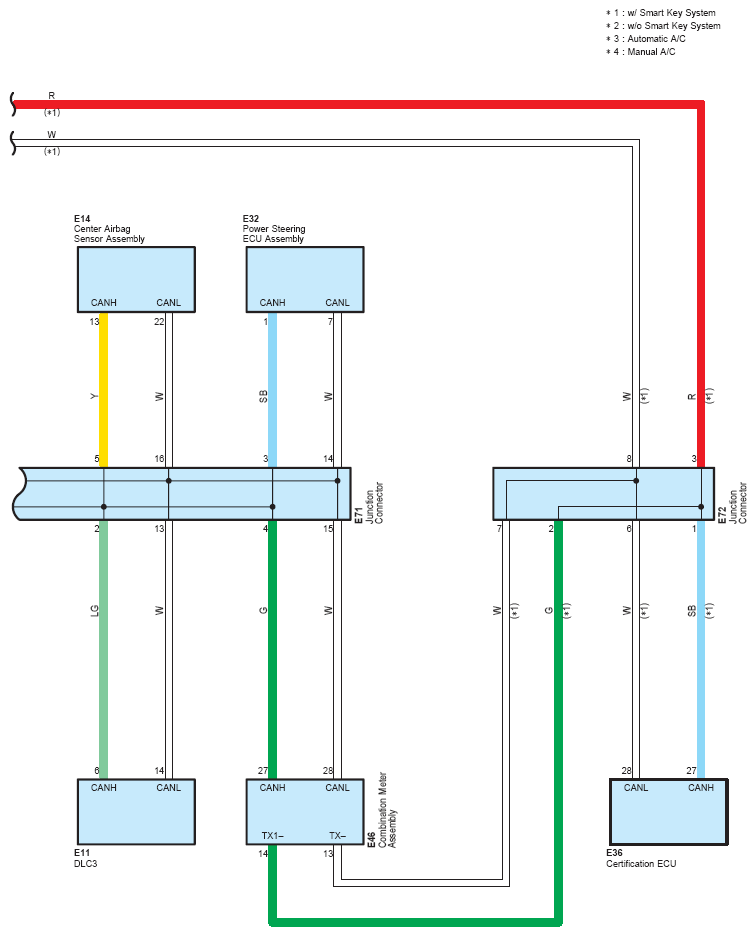

Fig 2: Multiplex Communication System [CAN] (Except TMC Made) - Circuit Diagram (2 Of 2)
G07551245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
