Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

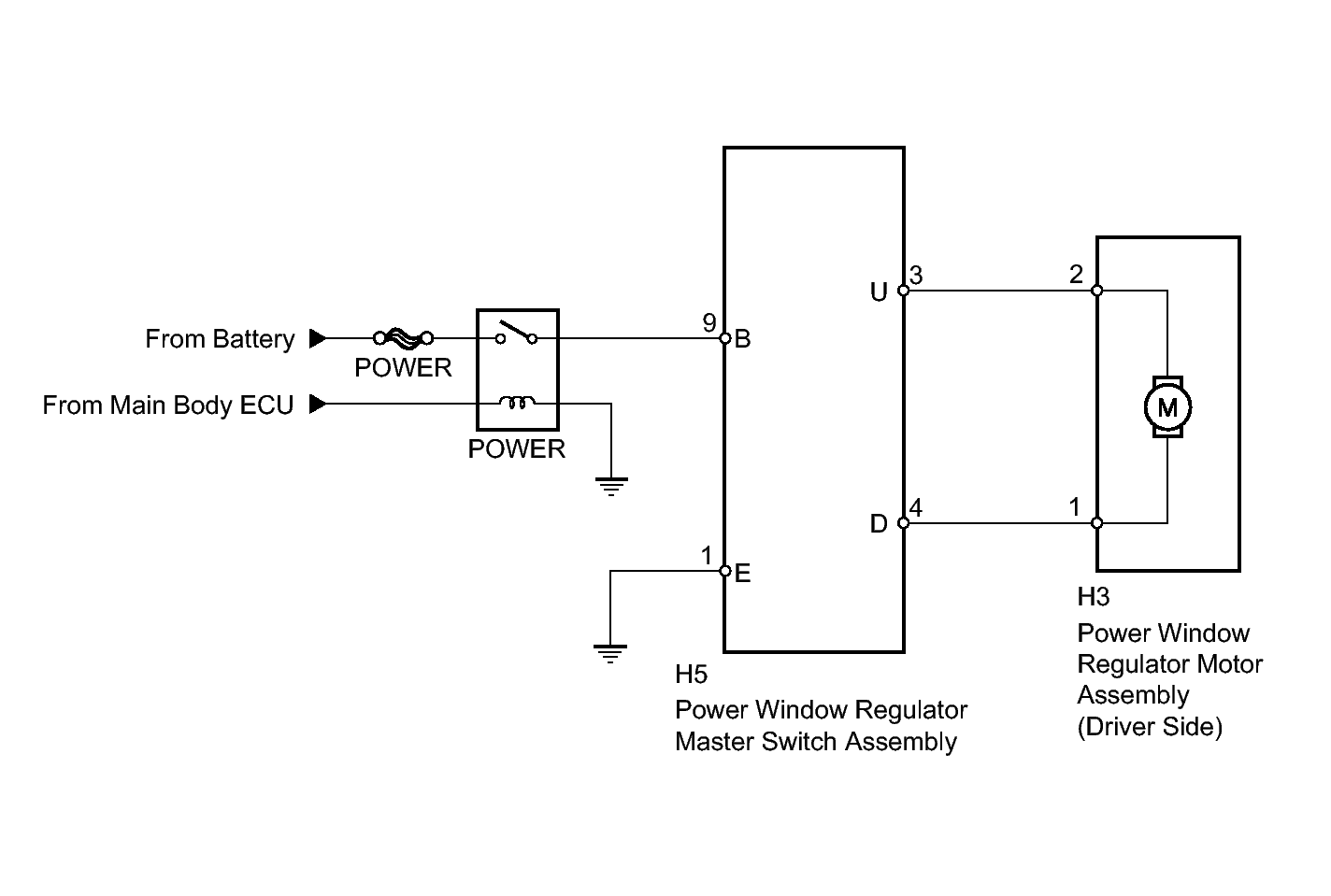

Fig 1: Power Window Master Switch - Wiring Diagram
GTY199258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
