Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Procedure
- CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE) (POWER SOURCE)
- Disconnect the G6 regulator switch connector.

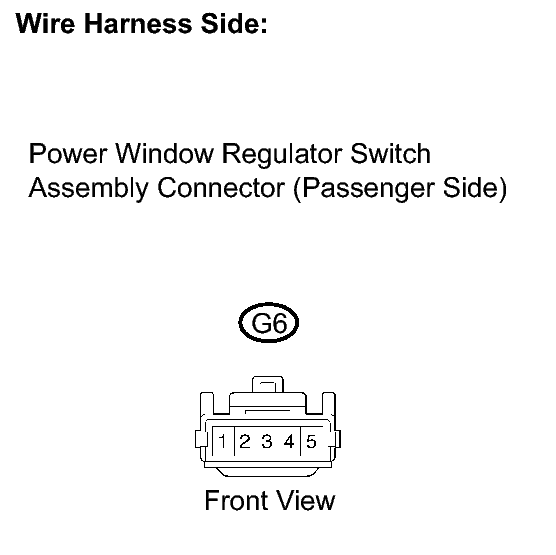

- Measure the voltage of the wire harness side connector.
Standard voltage
Tester Connection Condition Specified Condition G6-4 - Body ground Ignition switch ON 11 to 14 V - Reconnect the switch connector.
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
- Remove the power window regulator switch.
- Check the resistance.
Standard resistance

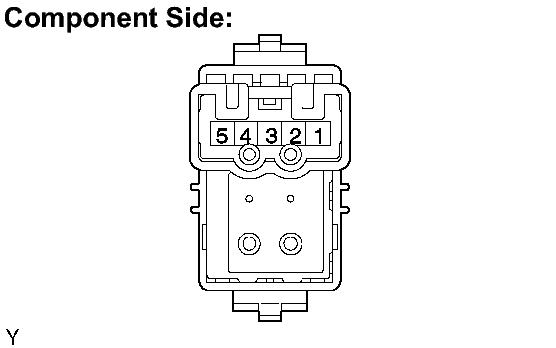

Tester Connection Switch Condition Specified Condition 1 - 2
3 - 4UP Below 1 Ω 1 - 2
3 - 5OFF Below 1 Ω 1 - 4
3 - 5DOWN Below 1 Ω - Reinstall the switch.
NG → See step 8
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (SWITCH (PASSENGER SIDE) - MOTOR (PASSENGER SIDE))
- Disconnect the G6 power window regulator switch connector.
- Disconnect the G3 power window regulator motor connector.
- Check the resistance.
Standard resistance

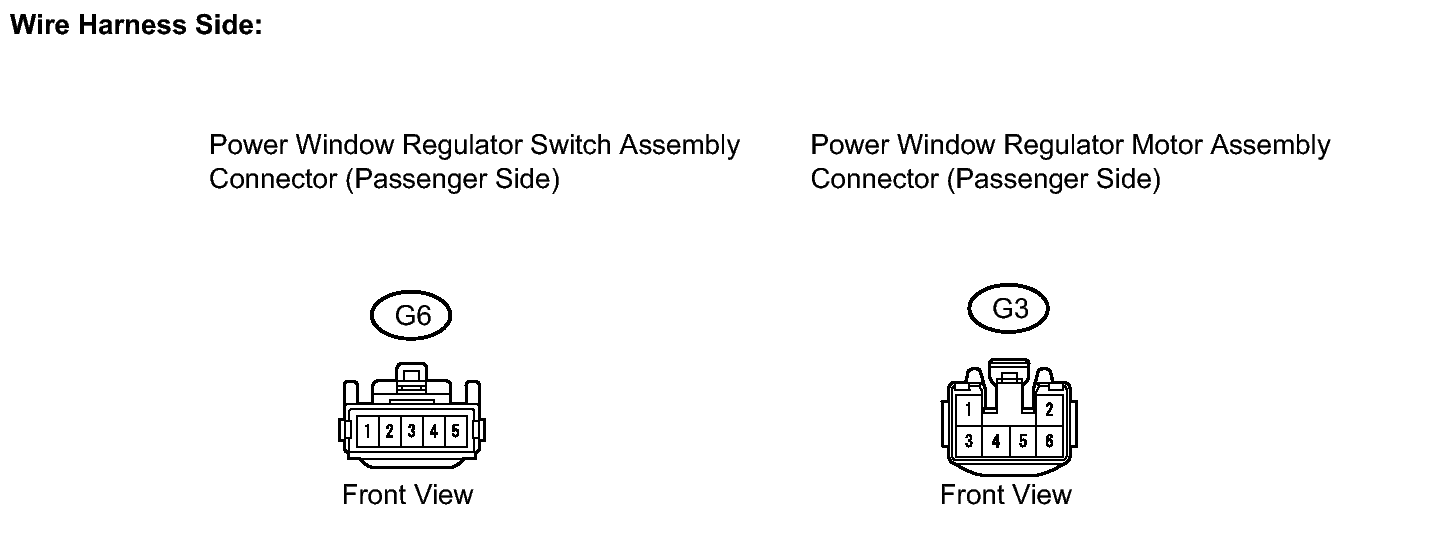

Tester Connection Specified Condition G6-3 - G3-2 Below 1 Ω G6-1 - G3-1 Below 1 Ω G6-3 or G3-2 - Body ground 10 kΩ or higher G6-1 or G3-1 - Body ground 10 kΩ or higher - Reconnect the motor connector.
- Reconnect the switch connector.
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE)
- Remove the power window regulator motor.
- Apply battery voltage to connector terminals 1 and 2.NOTE:
Do not apply battery voltage to any terminals except terminals 1 and 2.

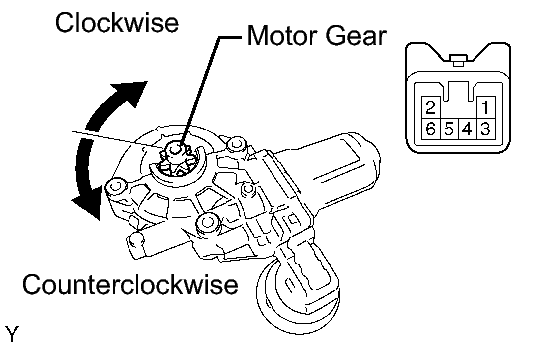

- Check that the motor gear rotates smoothly as follows.
OK
Measurement Condition Specified Condition Battery positive (+) → 1
Battery negative (-) → 2Motor gear rotates clockwise Battery positive (+) → 2
Battery negative (-) → 1Motor gear rotates counterclockwise - Reinstall the motor.
NG → See step 9
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (MASTER SWITCH - SWITCH (PASSENGER SIDE))
- Disconnect the H5 power window regulator master switch connector.
- Disconnect the G6 power window regulator switch connector.
- Check the resistance.
Standard resistance

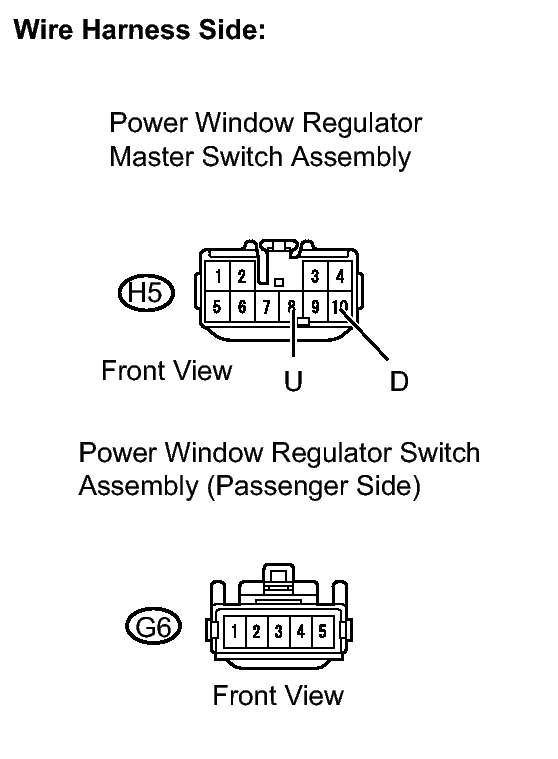

Tester Connection Specified Condition H5-8 (U) - G6-5 Below 1 Ω H5-10 (D) - G6-2 Below 1 Ω H5-8 (U) or G6-5 - Body ground 10 kΩ or higher H5-10 (D) or G6-2 - Body ground 10 kΩ or higher - Reconnect the switch connector.
- Reconnect the master switch connector.
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (FRONT PASSENGER SWITCH)
- Remove the power window regulator master switch.
- Check the resistance.
Standard resistance

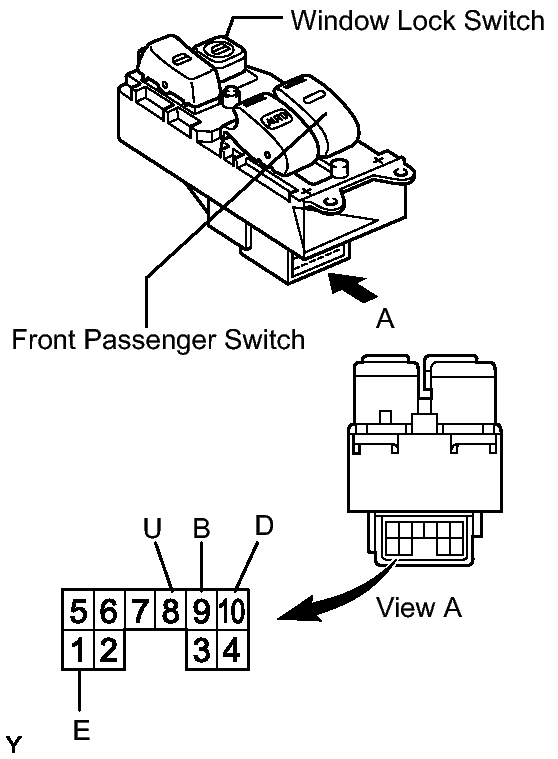

Window Lock Switch Condition Power Window Switch Condition Tester Connection Specified Condition OFF UP 1 (E) - 10 (D)
8 (U) - 9 (B)Below 1 Ω OFF OFF 1 (E) - 8 (U)
1 (E) - 10 (D)Below 1 Ω OFF DOWN 1 (E) - 8 (U)
9 (B) - 10 (D)Below 1 Ω ON UP 1 (E) - 10 (D) 10 kΩ or higher 8 (U) - 9 (B) Below 1 Ω ON OFF 8 (U) - 10 (D) Below 1 Ω ON DOWN 1 (E) - 8 (U) 10 kΩ or higher 9 (B) - 10 (D) Below 1 Ω - Reinstall the master switch.
NG → See step 10
OK → See step 7
- SYSTEM IS OK. Refer to Power Windows do not Operate at All
- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE). Refer to REMOVAL
- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE). Refer to REMOVAL
- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY. Refer to REMOVAL
