Confirmation Driving Pattern

HINT:

Performing this confirmation pattern will activate the catalyst monitor. This is very useful for verifying the completion of a repair.

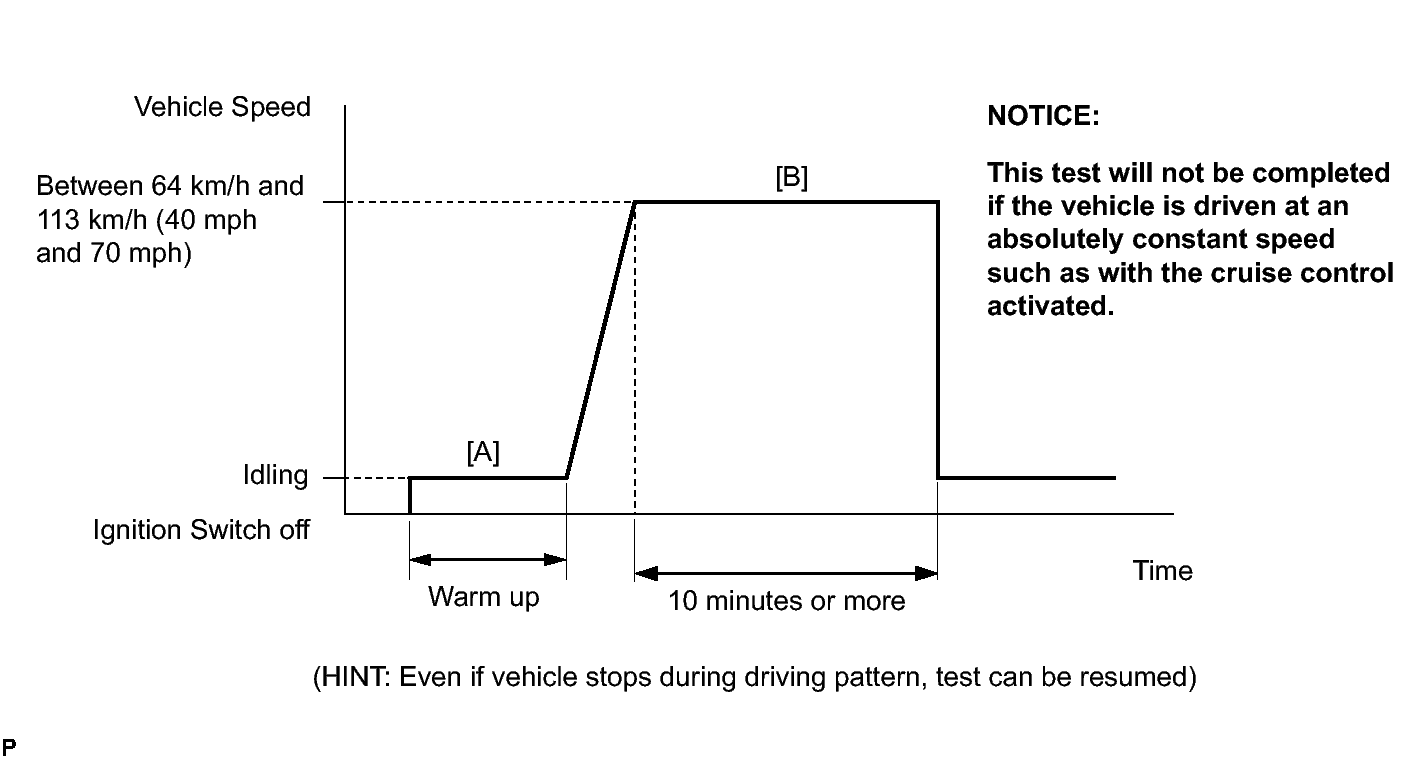

Fig 1: Confirmation Driving Pattern Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON and turn the Techstream on.
7. Enter the following menus: Powertrain / Engine and ECT / Monitor.
8. Check that Catalyst / Status2 is Incomplete.
9. Start the engine and warm it up (until the engine coolant temperature is 75°C (167°F) or more) [A].
10. Drive the vehicle at between 64 km/h and 113 km/h (40 mph and 70 mph) for at least 10 minutes or more [B].
    WARNING:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

11. The monitor items will change to Complete as Catalyst monitor operates.
12. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
13. Check if any DTCs (pending DTCs) are set.

HINT:

If Catalyst does not change to Complete, and no pending DTCs are set, extend the driving time.
