DTC P0550: Power Steering Pressure Sensor Circuit Malfunction; DTC P0552: Power Steering Pressure Sensor Circuit Low Input; DTC P0553: Power Steering Pressure Sensor Circuit High Input: Wiring Diagram

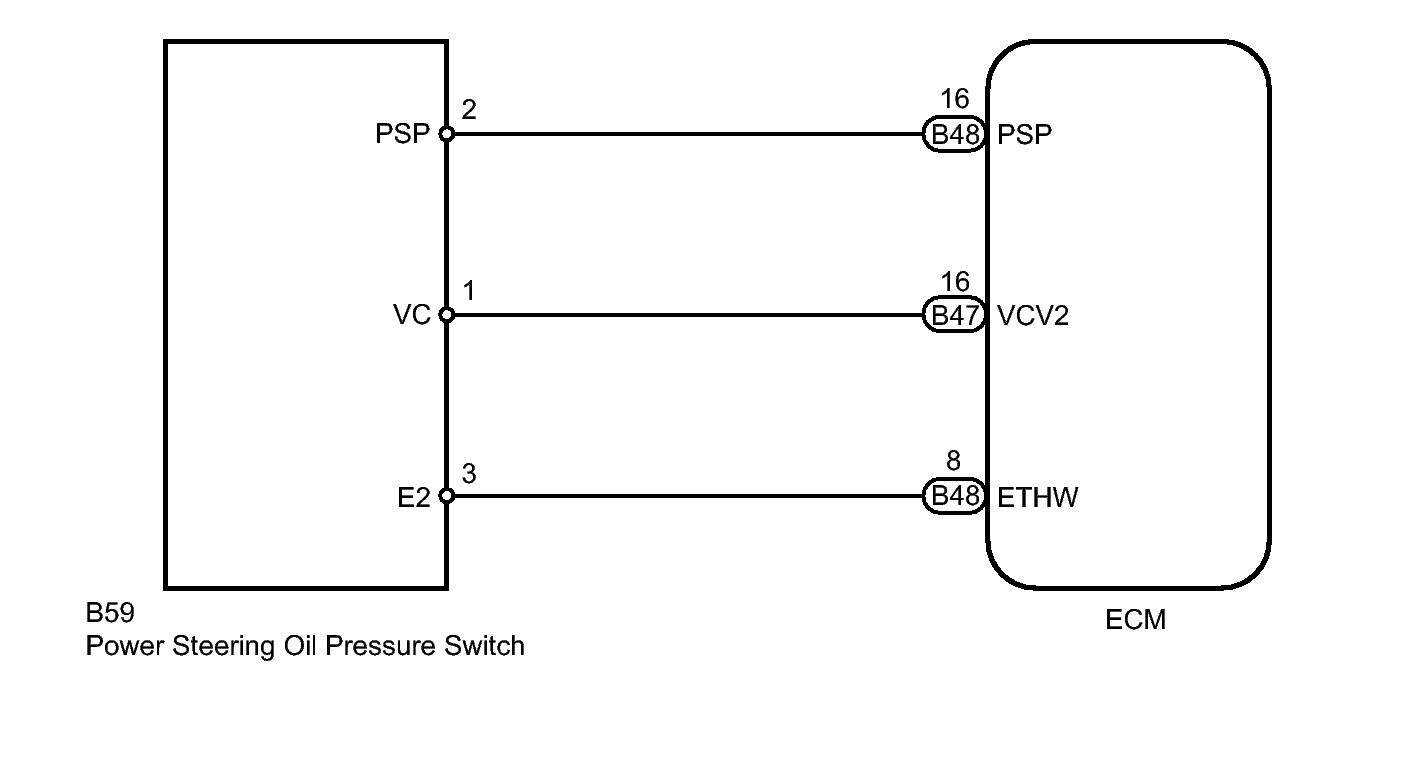

Fig 1: Power Sreering Oil Pressure Switch - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
