EVAP System: Procedure

  1. CONFIRM DTC
    1. Turn the ignition switch off and wait for 10 seconds.
    2. Turn the ignition switch to ON.
    3. Turn the ignition switch off and wait for 10 seconds.
    4. Connect the Techstream to the DLC3.
    5. Turn the ignition switch to ON and turn the Techstream on.
    6. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    7. Confirm DTCs and freeze frame data.

      If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

      Fig 1: EVAP System DTC Malfunctioning Table
      GTY173498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the reference pressure difference between the first and second checks is greater than the specification, the DTCs corresponding to the reference pressure (P043E, P043F, P2401, P2402 and P2419) will all be stored.

    NEXT: Go to next step

  2. PERFORM EVAPORATIVE SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of five steps performed automatically by the Techstream. It takes a maximum of approximately 19 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed and making the leak check of the fuel tank unavailable.
    • Do not run the engine in this step.
    • When the temperature of the fuel is 35°C(95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear the DTCs. Refer toDTC CHECK / CLEAR .
    2. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
    3. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine and ECT / Trouble Codes.

      HINT:

      If no pending DTC is displayed, perform the Monitor Confirmation (see appropriate "Diagnostic Help" service information menu). After this confirmation, check for pending DTCs. If no DTC is displayed, the EVAP system is normal.

    NEXT: Go to next step

  3. PERFORM EVAPORATIVE SYSTEM CHECK (MANUAL MODE)
    Fig 2: Identifying EVAP System Check
    GTY176893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • In the Evaporative System Check (Manual Mode), the series of 5 Evaporative System Check steps are performed manually by the Techstream.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed and making the leak check of the fuel tank unavailable.
    • Do not run the engine in this step.
    • When the temperature of the fuel is 35°C(95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear the DTCs. Refer toDTC CHECK / CLEAR .
    2. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Manual Mode.

    NEXT: Go to next step

  4. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5)
    Fig 3: Identifying EVAP Sensor Pressure Check Step 1/5
    GTY170352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 1/5.
      RESULT

      DTC No.* Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure Not yet determined A
      P0451 EVAP pressure fluctuates by +-0.3 kPa (2.25 mmHg) or more Canister pressure sensor noise B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    B → See step   30

    A: Go to next step

  5. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5 TO 2/5)
    Fig 4: Identifying EVAP System Check Step 1/5 To 2/5
    GTY184626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in steps 1/5 and 2/5.
      RESULT

      DTC No.* Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure during step 1/5. Then decreases to reference pressure standard* Not yet determined A
      P2402 Small difference between EVAP pressures during steps 1/5 and 2/5 Leak detection pump stuck ON B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

      HINT:

      The first reference pressure standard is the value determined in step 2/5.

    B → See step   23

    A: Go to next step

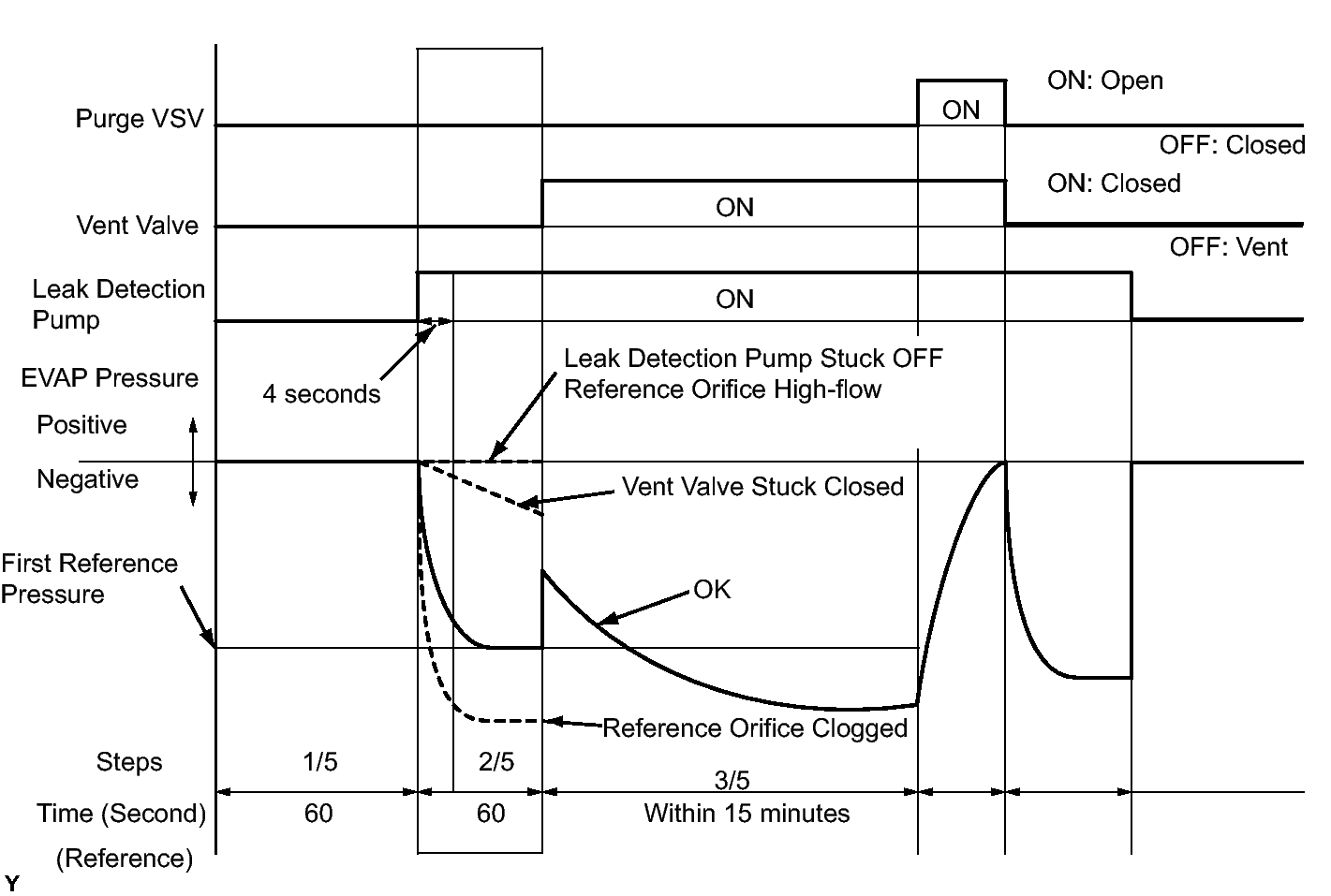

  6. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5)
    Fig 5: Identifying EVAP Sytem Check Step 2/5
    GTY180213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Make a note of the pressures checked in steps (a) and (b) below.

    (a) Check the EVAP pressure 4 seconds after the leak detection pump is activated* .

    (b) Check the EVAP pressure again when it has stabilized. This pressure is reference pressure standard.

    *: The leak detection pump begins to operate as step 1/5 is proceeded to step 2/5.

    RESULT

    DTC No.* Result Suspected Trouble Area Proceed to
    - EVAP pressure in step (b) between -4.85 kPa and -1.06 kPa (-36.38 mmHg and -7.95 mmHg) Not yet determined A
    P043F and P2401 EVAP pressure in step (b) -1.06 kPa (-7.95 mmHg) or more
    • Reference orifice high-flow
    • Leak detection pump stuck OFF
    		 B
    P043E EVAP pressure in step (b) below -4.85 kPa (-36.38 mmHg) Reference orifice clogged C
    P2419 EVAP pressure in step (a) more than -1.06 kPa (-7.95 mmHg) Vent valve stuck closed D

    *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    D → See step   19

    C → See step   30

    B → See step   11

    A: Go to next step

  7. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5 TO 3/5)
    Fig 6: Identifying EVAP System Check Step 2/5 to 3/5
    GTY171881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure increase in step 3/5.
      RESULT

      DTC No.* Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa (2.25 mmHg) or more within 10 seconds of proceeding from step 2/5 to step 3/5 Not yet determined A
      P2420 No variation in EVAP pressure despite proceeding from step 2/5 to step 3/5 Vent valve stuck open (vent) B
      P0451 No variation in EVAP pressure during steps 1/5 through 3/5 Canister pressure sensor malfunction stuck C

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    C → See step   30

    B → See step   20

    A: Go to next step

  8. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)
    Fig 7: Identifying EVAP System Check Step 3/5
    GTY177427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Wait until the EVAP pressure change is less than 0.1 kPa (0.75 mmHg) for 30 seconds.
    2. Measure the EVAP pressure and record it.

      HINT:

      A few minutes are required for the EVAP pressure to become saturated. When there is little fuel in the fuel tank, it takes up to 15 minutes (900 seconds).

    NEXT: Go to next step

  9. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 4/5)
    Fig 8: Identifying EVAP System Check Step 4/5
    GTY182029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 4/5.
      RESULT

      DTC No.* Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa (2.25 mmHg) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Not yet determined A
      P0441 EVAP pressure increases by 0.3 kPa (2.25 mmHg) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Problems in EVAP hose between purge VSV and intake air surge tank B
      P0441 Variation in EVAP pressure less than 0.3 kPa (2.25 mmHg) for 10 seconds, after proceeding from step 3/5 to step 4/5 Purge VSV stuck closed C

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    C → See step   12

    B → See step   15

    A: Go to next step

  10. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 5/5)
    Fig 9: Identifying EVAP System Check Step 5/5
    GTY188759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 5/5.
    2. Compare the EVAP pressure in step 3/5 and the second reference pressure standard (step 5/5).
      RESULT

      DTC No.* Result Suspected Trouble Area Proceed to
      - EVAP pressure (step 3/5) lower than second reference pressure standard (step 5/5) Not yet determined (no leakage from EVAP system) A
      P0441 and P0455 EVAP pressure (step 3/5) higher than [second reference pressure standard (step 5/5) x 0.2]
      • Purge VSV stuck open
      • EVAP gross leak
      		 B
      P0456 EVAP pressure (step 3/5) higher than second reference pressure standard (step 5/5) EVAP small leak B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    B → See step   12

    A → See step   36

  11. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)
    Fig 10: Identifying EVAP System Check Step 3/5
    GTY185242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 3/5.
      RESULT

      DTC No.* Result Suspected Trouble Area Proceed to
      P043F EVAP pressure less than [reference pressure standard] measured at 2/5 Reference orifice high-flow A
      P2401 EVAP pressure almost same as [reference pressure standard] measured at 2/5 Leak detection pump stuck OFF B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

      HINT:

      The first reference pressure standard is the value determined in step 2/5.

    B → See step   23

    A → See step   30

  12. PERFORM ACTIVE TEST USING TECHSTREAM (PURGE VSV)
    Fig 11: Identifying Purge VSV & Hose
    GTY176693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for EVAP Control.
    2. Disconnect the hose (connected to the canister) from the purge VSV.
    3. Start the engine.
    4. Using the Techstream, turn off the purge VSV (Purge VSV: OFF).
    5. Use your finger to confirm that the purge VSV has no suction.
    6. Using the Techstream, turn on the purge VSV (Purge VSV: ON).
    7. Use your finger to confirm that the purge VSV has suction.
      TEXT IN ILLUSTRATION

      *1 Purge VSV
      *2 Hose (to canister)
      RESULT

      Result Suspected Trouble Area Proceed to
      No suction when purge VSV turned OFF, and suction applied when turned ON Purge VSV normal A
      Suction applied when purge VSV turned OFF Purge VSV stuck open B
      No suction when purge VSV turned ON
      • Purge VSV stuck closed
      • Problems with EVAP hose between purge VSV and intake air surge tank
      		 C

    C → See step   15

    B → See step   14

    A: Go to next step

  13. CHECK FUEL CAP ASSEMBLY
    1. Check that the fuel cap is correctly installed and confirm the fuel cap meets OEM specifications.
    2. Confirm that the fuel cap is tightened until a few click sounds are heard.

      HINT:

      If an EVAP tester is available, check the fuel cap using the tester.

      1. Remove the fuel cap and install it onto a fuel cap adapter.
      2. Connect an EVAP tester pump hose to the adapter, and pressurize the cap to 3.2 to 3.7 kPa (24 to 28 mmHg) using an EVAP tester pump.
      3. Seal the adapter and wait for 2 minutes.
      4. Check the pressure. If the pressure is 2 kPa (15 mmHg) or more, the fuel cap is normal.
        RESULT

        Result Suspected Trouble Area Proceed to
        Fuel cap correctly installed - A
        Fuel cap loose
        • Fuel cap improperly installed
        • Defective fuel cap
        • Fuel cap does not meet OEM specifications
        		 B
        No fuel cap - C

    C → See step   28

    B → See step   27

    A → See step   29

  14. INSPECT PURGE VSV
    Fig 12: Identifying Purge VSV, Connector & Hose
    GTY182379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the purge VSV connector.
    3. Disconnect the hose (connected to the canister) from the purge VSV.
    4. Start the engine.
    5. Use your finger to confirm that the purge VSV has no suction.
      TEXT IN ILLUSTRATION

      *1 Purge VSV
      *2 Connector
      *3 Hose (to canister)
      RESULT

      Result Suspected Trouble Area Proceed to
      No suction ECM A
      Suction applied Purge VSV B

    B → See step   31

    A → See step   35

  15. CHECK EVAP HOSE (PURGE VSV - INTAKE AIR SURGE TANK)
    Fig 13: Identifying Purge VSV & Hose
    GTY186875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the hose (connected to the intake air surge tank) from the purge VSV.
    2. Start the engine.
    3. Use your finger to confirm that the hose has suction.
      TEXT IN ILLUSTRATION

      *1 Purge VSV
      *2 Hose (to intake air surge tank)
      RESULT

      Result Suspected Trouble Area Proceed to
      Suction applied EVAP hose between purge VSV and intake air surge tank normal A
      No suction
      • Intake air surge tank
      • EVAP hose between purge VSV and intake air surge tank
      		 B

    B → See step   26

    A: Go to next step

  16. INSPECT PURGE VSV
    Fig 14: Identifying Purge VSV & Ports
    GTY182104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the purge VSV.
    2. Apply battery voltage to the terminals of the purge VSV.
    3. Using an air gun, confirm that air flows from port A to port B.
      TEXT IN ILLUSTRATION

      *1 Purge VSV
      *2 Port A
      *3 Port B
      RESULT

      Result Suspected Trouble Area Proceed to
      Air flows Purge VSV normal A
      No air flow Purge VSV B

    B → See step   31

    A: Go to next step

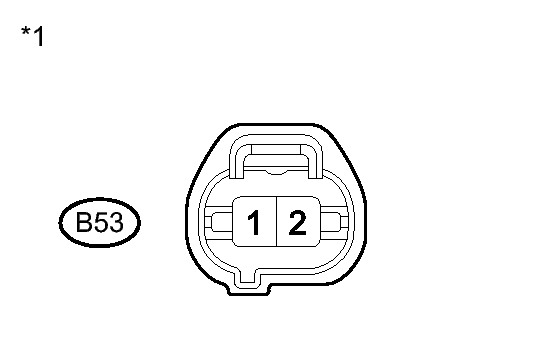

  17. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF PURGE VSV)
    Fig 15: Identifying B53 Purge VSV Connector
    GTY168043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the purge VSV connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Purge VSV)
      RESULT

      Tester Connection Switch Condition Specified Condition Suspected Trouble Area Proceed to
      B53-1 - Body ground Ignition switch ON 11 to 14 V Normal A
      Ignition switch ON Other than result above Wire harness or connectors between purge VSV and ECM B

    B → See step   32

    A: Go to next step

  18. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)
    1. Disconnect the purge VSV connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      B53-2 - B49-18 (PRG) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      B49-18 (PRG) - Body ground Always 10 kΩ or higher
      B53-2 - Body ground Always 10 kΩ or higher

    NG → See step   32

    OK → See step   35

  19. PERFORM ACTIVE TEST USING TECHSTREAM (FOR VENT VALVE)

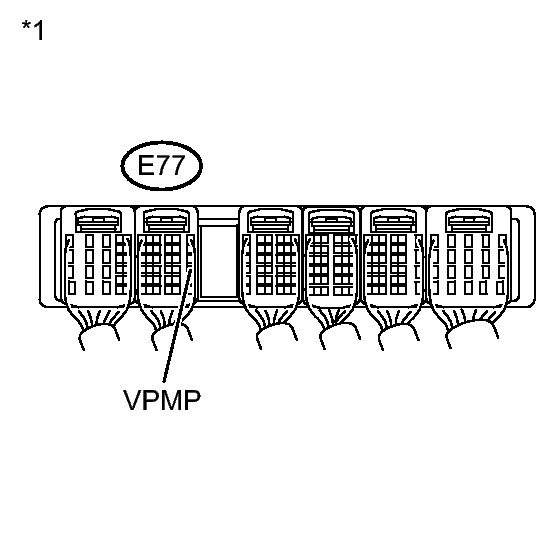

    Fig 16: Identifying E77 Purge VSV ECM Connector
    GTY174844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for Vent Valve.
    4. Measure the voltage according to the value(s) in the table below.
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (ECM)
      RESULT

      Tester Connection Tester Operation Specified Condition Suspected Trouble Area Proceed to
      E77-19 (VPMP) - Body ground Vent valve OFF (vent) 11 to 14 V Vent valve A
      Vent valve ON (close) Below 3 V
      Vent valve OFF (vent) and ON (close) Below 3 V ECM B

    B → See step   35

    A → See step   22

  20. PERFORM ACTIVE TEST USING TECHSTREAM (FOR VENT VALVE)
    Fig 17: Identifying E77 Purge VSV ECM Connector
    GTY174844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine and ECT / Activate the VSV for Vent Valve.
    4. Measure the voltage according to the value(s) in the table below.
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (ECM)
      RESULT

      Tester Connection Tester Operation Specified Condition Suspected Trouble Area Proceed to
      E77-19 (VPMP) - Body ground Vent valve OFF (vent) and ON (close) Below 3 V Power source of vent valve A
      Vent valve OFF (vent) 11 to 14 V Vent valve B
      Vent valve ON (close) Below 3 V
      Vent valve OFF (vent) and ON (close) 11 to 14 V ECM C

    C → See step   35

    B → See step   22

    A: Go to next step

  21. INSPECT CANISTER PUMP MODULE (POWER SOURCE FOR VENT VALVE)

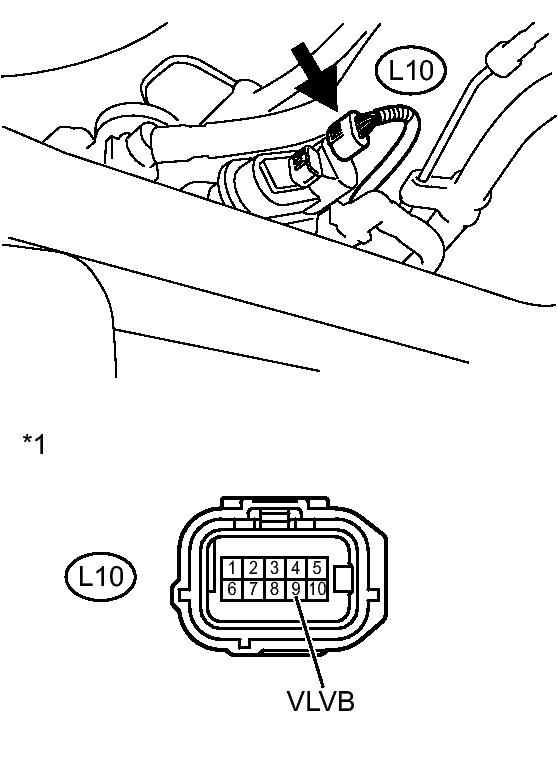

    Fig 18: Identifying L10 Canister Pump Module Connector
    GTY178491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the canister pump module connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage according to the value(s) in the table below.
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Canister Pump Module)
      RESULT

      Tester Connection Switch Condition Specified Condition Suspected Trouble Area Proceed to
      L10-9 (VLVB) - Body ground Ignition switch ON 11 to 14 V Normal A
      Ignition switch ON Below 3 V Power source wire harness of vent valve B

    B → See step   32

    A: Go to next step

  22. INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)

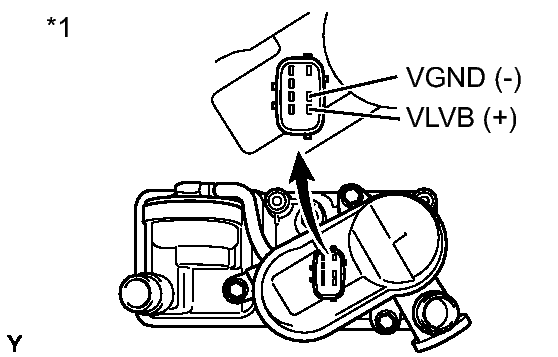

    Fig 19: Applying Battery Voltage To VLVB And VGND Terminals Of Canister Pump Module
    GTY192000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch off.
    2. Disconnect the canister pump module connector.
    3. Apply the battery voltage to terminals VLVB and VGND of the canister pump module.
    4. Touch the canister pump module to confirm the vent valve operation.
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Canister Pump Module)
      RESULT

      Result Suspected Trouble Area Proceed to
      Operating Wire harness between vent valve and ECM A
      Not operating Vent valve B

    B → See step   30

    A → See step   32

  23. PERFORM ACTIVE TEST USING TECHSTREAM (FOR CANISTER PUMP MODULE (LEAK DETECTION PUMP))

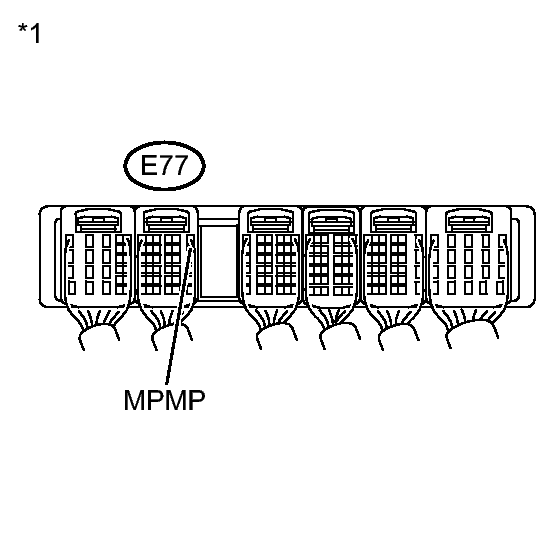

    Fig 20: Identifying E77 Canister Pump Module ECM Connector (With Harness Connected)
    GTY167624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the Vacuum Pump.
    4. Measure the voltage according to the value(s) in the table below.
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (ECM)
      RESULT

      Tester Connection Tester Operation Specified Condition Suspected Trouble Area Proceed to
      E77-7 (MPMP) - Body ground Leak detection pump OFF Below 3 V ECM normal A
      Leak detection pump ON 11 to 14 V
      Leak detection pump OFF 11 to 14 V ECM B
      Leak detection pump ON Below 3 V

    B → See step   35

    A: Go to next step

  24. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

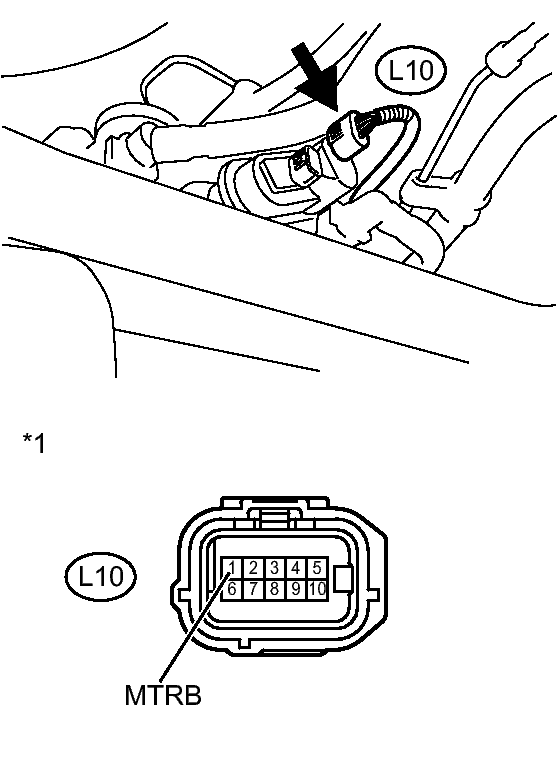

    Fig 21: Identifying L10 Canister Pump Module ECM Wire Harness Connector
    GTY189151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch off.
    3. Disconnect the canister pump module connector.
    4. Turn the ignition switch to ON and turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the Vacuum Pump.
    6. Measure the voltage according to the value(s) in the table below.
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Canister Pump Module)
      RESULT

      Tester Connection Tester Operation Specified Condition Suspected Trouble Area Proceed to
      L10-1 (MTRB) - Body ground Leak detection pump ON 11 to 14 V Normal A
      Leak detection pump ON Below 3 V Wire harness between ECM and leak detection pump B

    B → See step   32

    A: Go to next step

  25. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - BODY GROUND)

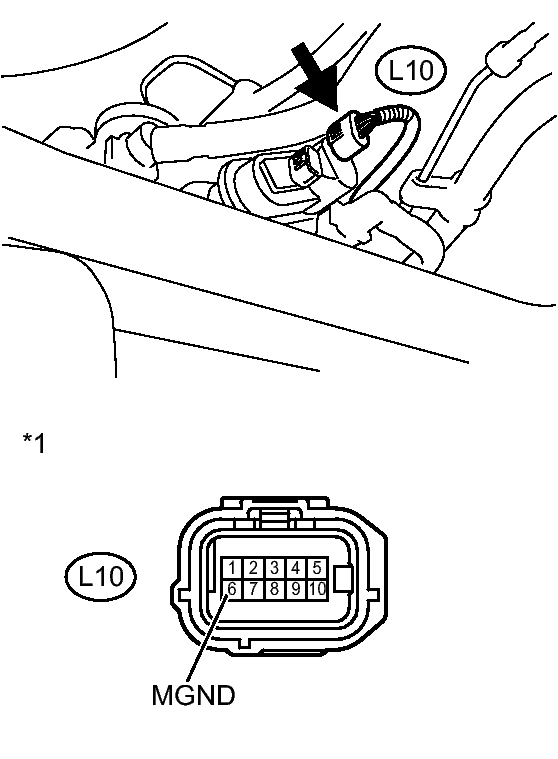

    Fig 22: Identifying L10 Canister Pump Module - Body Ground Harness & Connector
    GTY178495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the canister pump module connector.
    2. Turn the ignition switch off.
    3. Measure the resistance according to the value(s) in the table below.
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Canister Pump Module)
      RESULT

      Tester Connection Switch Condition Specified Condition Suspected Trouble Area Proceed to
      L10-6 (MGND) - Body ground Always Below 1 Ω Leak detection pump A
      Always 10 kΩ or more Wire harness between leak detection pump and body ground B

    B → See step   32

    A → See step   30

  26. INSPECT INTAKE AIR SURGE TANK (EVAP PURGE PORT)
    1. Stop the engine.
    2. Disconnect the EVAP hose from the intake air surge tank.
    3. Start the engine.
    4. Use your finger to confirm that the port of the intake air surge tank has suction.
      RESULT

      Result Suspected Trouble Area Proceed to
      Suction applied EVAP hose between intake air surge tank and purge VSV A
      No suction Intake air surge tank B

    B → See step   34

    A → See step   33

  27. CORRECTLY REINSTALL OR REPLACE FUEL CAP ASSEMBLY

    HINT:

    • When reinstalling the fuel cap, tighten it until a few click sounds are heard.
    • When replacing the fuel cap, use a fuel cap that meets OEM specifications, and install it until a few click sounds are heard.

    NEXT → See step   37

  28. REPLACE FUEL CAP ASSEMBLY

    HINT:

    When installing the fuel cap, tighten it until a few click sounds are heard.

    NEXT → See step   37

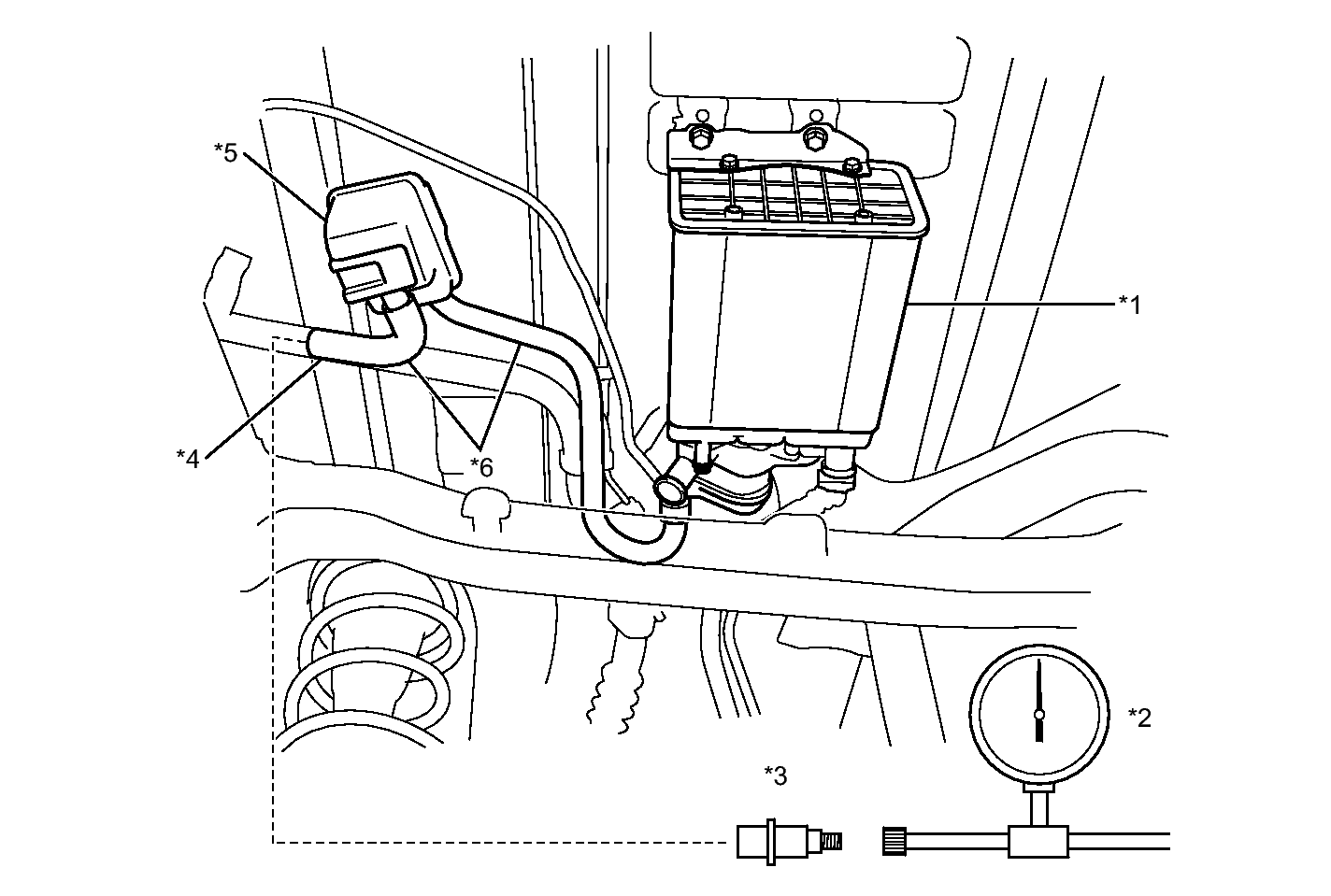

  29. LOCATE EVAP LEAK PART
    Fig 23: Identifying EVAP Canister, Pressure Tester Tool, Adapter, Disconnected Vent Hose & Canister Filter
    GTY188448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *1 Canister *2 EVAP Pressure Tester Tool
    *3 Adapter *4 Disconnected Vent Hose
    *5 Canister Filter *6 Vent Hose
    1. Disconnect the vent hose.
    2. Connect the EVAP pressure tester tool to the canister with the adapter.
    3. Pressurize the EVAP system to 3.2 to 3.7 kPa (24 to 28 mmHg).
    4. Apply soapy water to the piping and connecting parts of the EVAP system.
    5. Look for areas where bubbles appear. This indicates the leak point.
    6. Repair or replace the leak point.

      HINT:

      Disconnect the hose between the canister and the fuel tank from the canister. Block the canister side and conduct an inspection. In this way, the fuel tank can be excluded as an area suspected of causing fuel leaks.

    NEXT → See step   37

  30. REPLACE CANISTER ASSEMBLY
    1. Replace the canister assembly. Refer toREMOVAL .

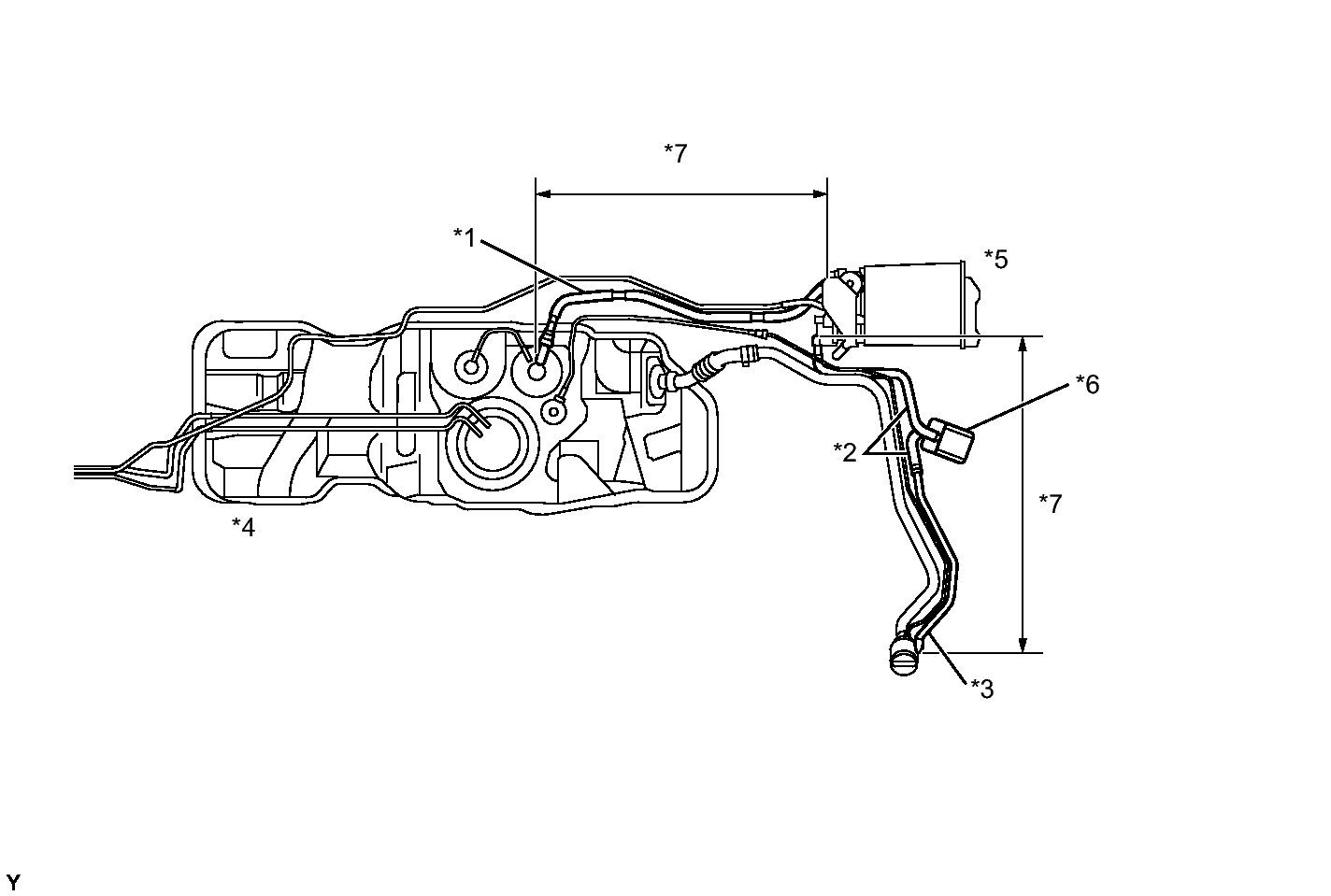

      Fig 24: Identifying Fuel Tank Vent Hose, Air Inlet Port, Fuel Tank, Canister, Canister Filter & Inspection Area
      GTY182103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fuel Tank Vent Hose *2 Vent Hose
      *3 Air Inlet Port *4 Fuel Tank
      *5 Canister *6 Canister Filter
      *7 Inspection Area
      (check for disconnection and/or cracks)      		 - -
      NOTE:

      When replacing the canister, check the canister pump module interior and related pipes for water, fuel or other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module: 2) the canister filter; and 3) the fuel tank vent hose.

    NEXT → See step   37

  31. REPLACE PURGE VSV
    1. Replace the purge VSV. Refer toREMOVAL .

    NEXT → See step   37

  32. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT → See step   37

  33. REPLACE EVAP HOSE (INTAKE AIR SURGE TANK - PURGE VSV)

    NEXT → See step   37

  34. INSPECT INTAKE AIR SURGE TANK
    1. Check that the EVAP purge port of the intake air surge tank is not clogged. If necessary, replace the intake air surge tank.

    NEXT → See step   37

  35. REPLACE ECM
    1. Replace the ECM. Refer toREMOVAL .

    NEXT → See step   37

  36. REPAIR OR REPLACE PARTS OR COMPONENTS INDICATED BY OUTPUT DTCS
    1. Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.

    NEXT → See step   37

  37. PERFORM EVAP SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • In the Evaporative System Check (Automatic Mode), the series of 5 Evaporative System Check steps is performed automatically. It takes a maximum of approximately 19 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed and making the leak check of the fuel tank unavailable.
    • Do not run the engine in this step.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing an Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear the DTCs. Refer toDTC CHECK / CLEAR .
    2. On the Techstream, enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
    3. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.

      HINT:

      If no pending DTC is found, the repair has been successfully completed.

    NEXT → END

scientia non olet · About LEMON Manuals
