Fuel Pump: Installation: Installation

INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

Install a new gasket onto the fuel tank.

Fig 1: Identifying Gasket & Fuel Tank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Set the fuel suction tube assembly to the fuel tank.
NOTE:
Do not bend the arm of the fuel sender gauge.
Fit the spline of the fuel suction tube assembly into the keyway of the fuel tank.

Fig 2: Identifying Spline Of Fuel Suction Tube Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install a new retainer.

Align the mark on a new retainer with the rib on the fuel tank as shown in the illustration.

Fig 3: Identifying Retainer Side And Fuel Tank Side Start Marks

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Start Mark (Fuel Tank Side)
*2	Start Mark (Retainer Side)

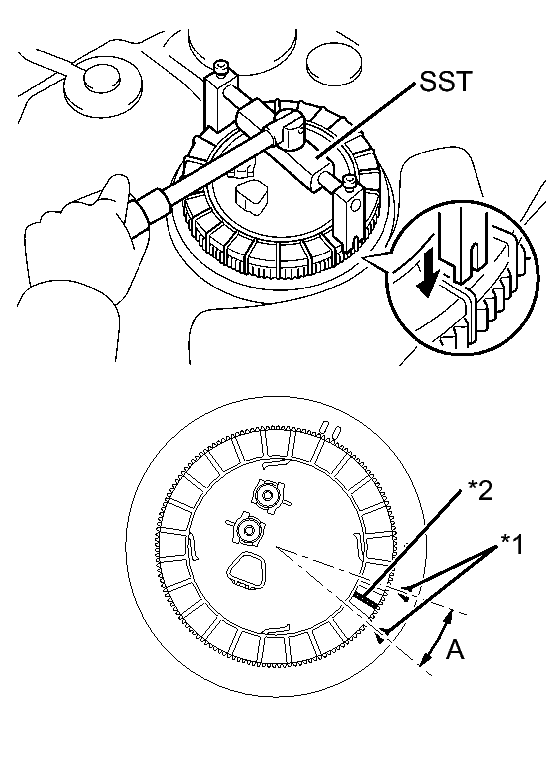

Using SST, turn the retainer 740° to 760° clockwise (more than 2 turns), and position the mark on the retainer within range A to install it.

Fig 4: Identifying Retainer Side And Fuel Tank Side Marks and Special Tool

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Fuel Tank Side Mark
*2	Retainer Side Mark

HINT:

Align the tips of the SST with the ribs on the retainer.

INSTALL FUEL TANK ASSEMBLY
1. Install the fuel tank assembly. Refer to INSTALLATION .
