Power Steering Oil Pressure Switch: Removal: Removal

  1. DRAIN POWER STEERING FLUID
  2. REMOVE POWER STEERING OIL PRESSURE SWITCH
    1. Disconnect the power steering oil pressure switch connector.
    2. Using a 24 mm deep socket wrench, remove the power steering oil pressure switch.

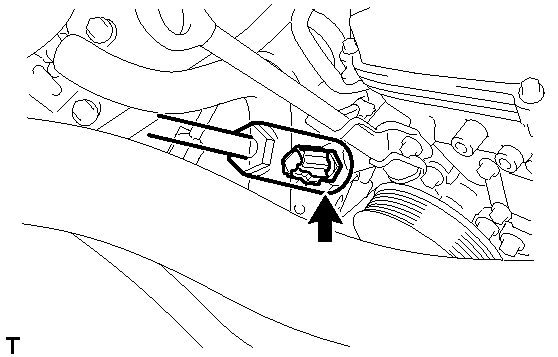

      Fig 1: Identifying Power Steering Oil Pressure Switch, Deep Socket Wrench & O - Ring
      GTY187839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the power steering oil pressure switch.
